9 Parameterisation

9.1 Parameterisation in SDCI mode (IO-Link mode)

The measurement system can be parametrised via the IO-Link interface by means of any
IO-Link compatible master configuration tool (according IO specifications V1.1). IO-Link
specifications V1.0 are as well supported.
Should the read parameter sets from the device not be accepted, we recommend to carry
out a plausibility check of the parameter set.
For detailed information on IO-Link device parameters, factory defaults, process and
diagnostic data, supported standard system commands as well as additional HYDAC
device specific system commands for the various product versions (part numbers), please
refer to the corresponding IODD (IO Device Description).
You will find the link for download of the complete IODD on our homepage at:
www.hydac.com
Entering the part number (9xxxxx) in the search field, the corresponding ZIP file will appear.
As a further additional data source for IODDs the IODD finder can be used at:
(https://ioddfinder.io-
link.com/#/productvariants?vendorName=%22HYDAC%20ELECTRONIC%20GmbH%22)

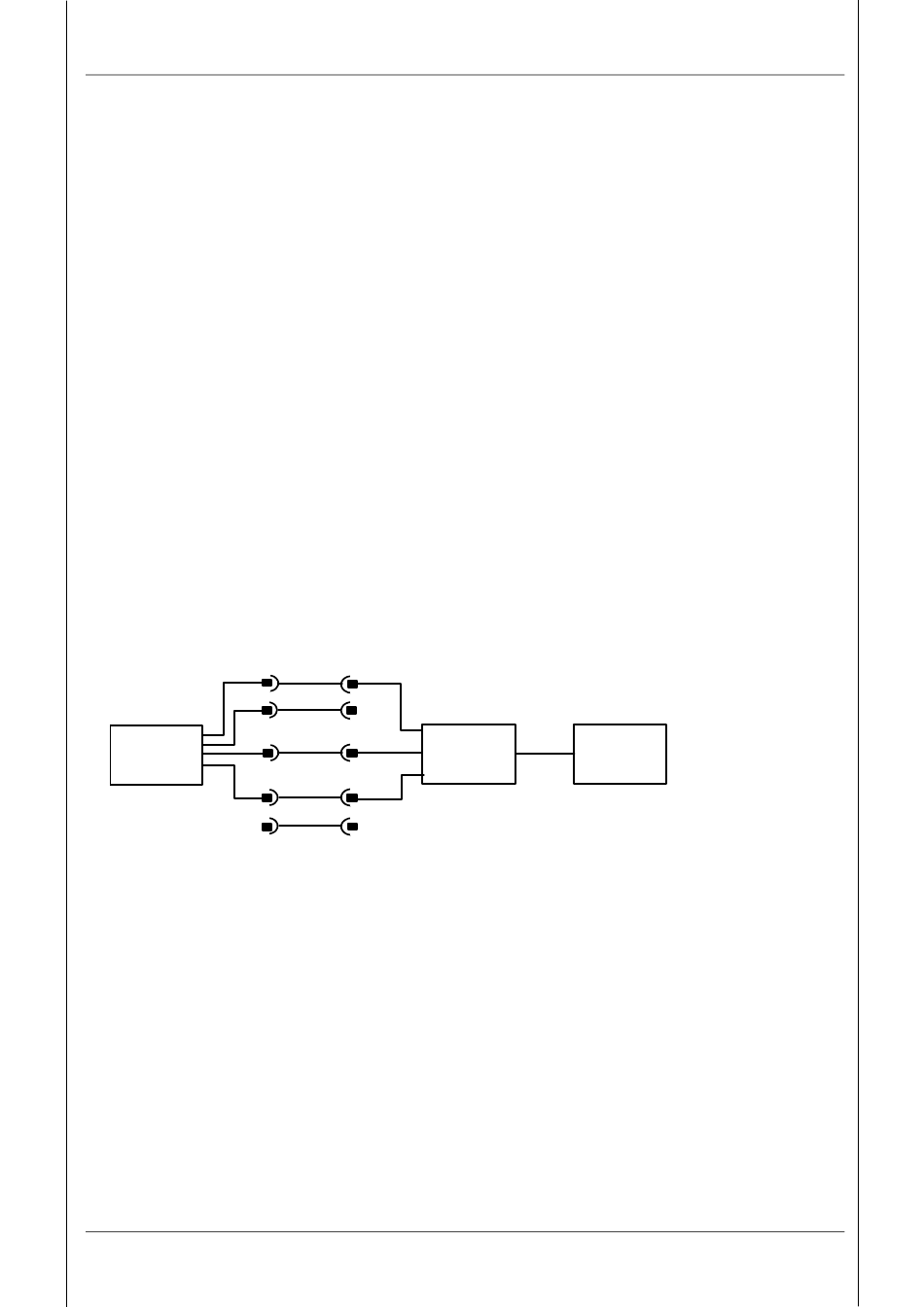

9.2 Parameterisation with ZBE P1-000

(Connection via standard cable)
1
2
3
Device
4
5

9.3 Programming by means of HYDAC portable measuring unit HMG 4000

(Connection via standard cable to an IO-Link connection socket)
It is necessary to generate a HEDD file for this purpose.
