BML-S1G0-_7_ _-M5EG-_0-_ _
Absolute Magnetically Coded Position Measuring System
The CE Mark verifies that our products
meet the requirements of the current
EMC Directive.
Intended use
The BML magnetically coded position measuring system is
intended for communication with a machine controller (e.g.
PLC). It is intended to be installed into a machine or
system and used in the industrial sector.
Flawless function in accordance with the specifications in
the technical data is ensured only when using original
Balluff accessories. Use of any other components will void
the warranty.
Non-approved use is not permitted and will result in the
loss of warranty and liability claims against the
manufacturer.
Safety applications
BML sensors with the G-interface (BML...M5EG...) may
be used in safety applications up to Safety Integrity Level 2
(SIL 2) per EN 61800-5-2 / EN 62061 / IEC 61508 and
Performance Level d (PL d) per EN ISO 13849-1.
In the document Interfaces for BML Magnetically Coded
Position Measuring System note the references in the
section Functionally safe position signal, especially the
installation checklist in the appendix.

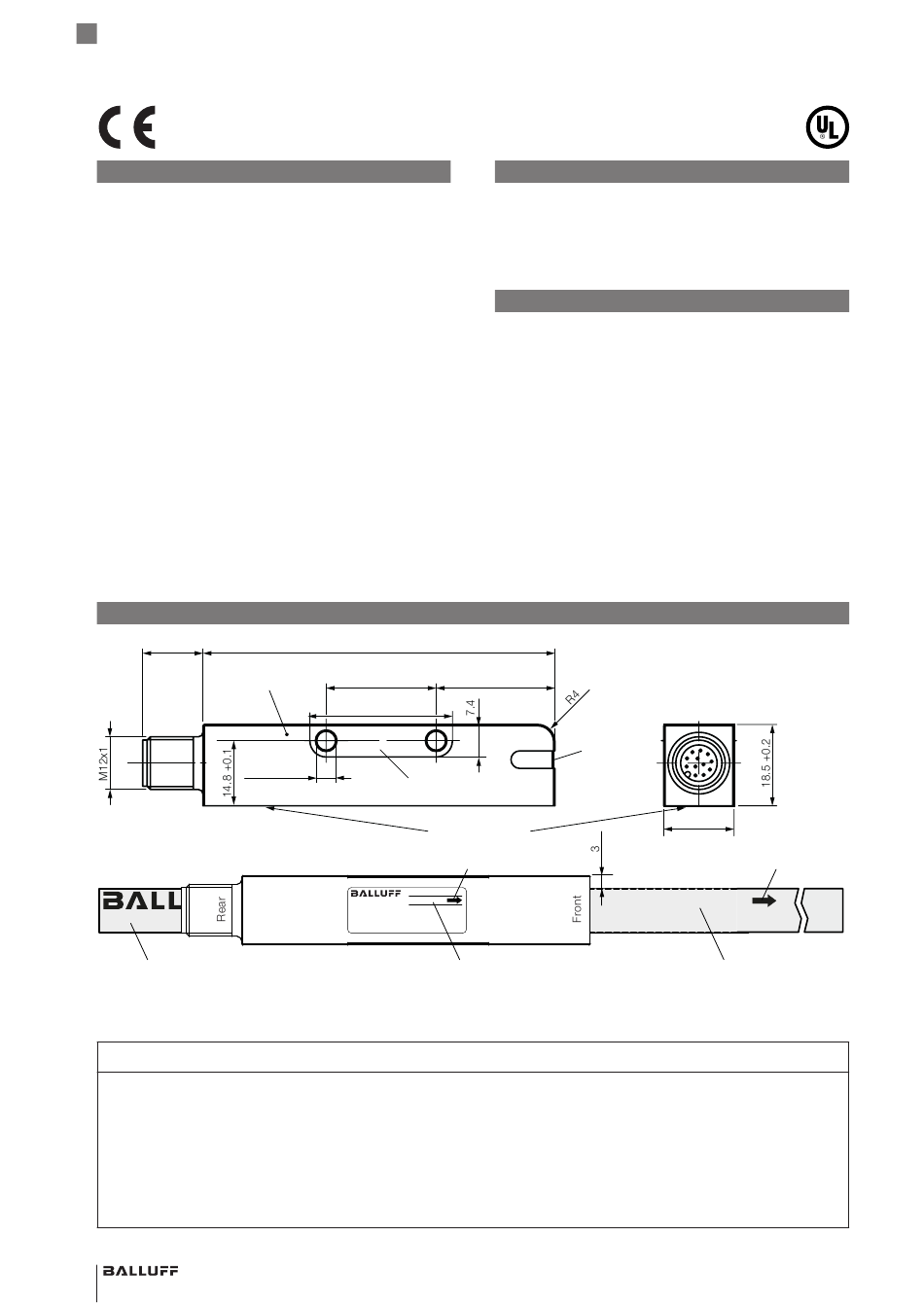

Installation and connection
13.7
Sensor head
(2x) Ø 4.3
1) Not included in scope of delivery
18 05DE ABS PRC E
Magnetic tape 1)
Interference in function
Improper assembly of the magnetic tape and sensor head may impair function of the position measuring system and lead to
increased wear or damage to the system.
► All permissible distance and angle tolerances must be strictly complied with.
► The sensor head may not come into contact with the magnetic tape over the entire measuring range. Contact must
also be avoided if the magnetic tape is covered by a cover strip (optional).
► The position measuring system must be installed in accordance with the indicated degree of protection.
► Strong magnetic fields ≥1 mT, in particular magnetic clamps, must not affect the system.
1 english

Downloading further instructions

A complete user's guide, the document Interfaces for BML
Magnetically Coded Position Measuring System, as well as
the user's guide for the tape, can be downloaded from the
Internet at www.balluff.com or requested via e-mail from
service@balluff.de.
General safety notes
Installation and startup may only be performed by
trained specialists.
The operator is responsible for ensuring that local safety
regulations are observed. In particular, the operator must
take steps to ensure that a defect in the linear encoder will
not result in hazards to persons or equipment.
If defects and unresolvable faults occur in the linear
encoder, take it out of service and secure against
unauthorized use.
80.3
25 27.4
32.4
Insulator 1)
Active measuring surface
Left Direction arrow
Code
Right
Code
NOTICE
LED
16 +0.2
Code
Code
Direction arrow
