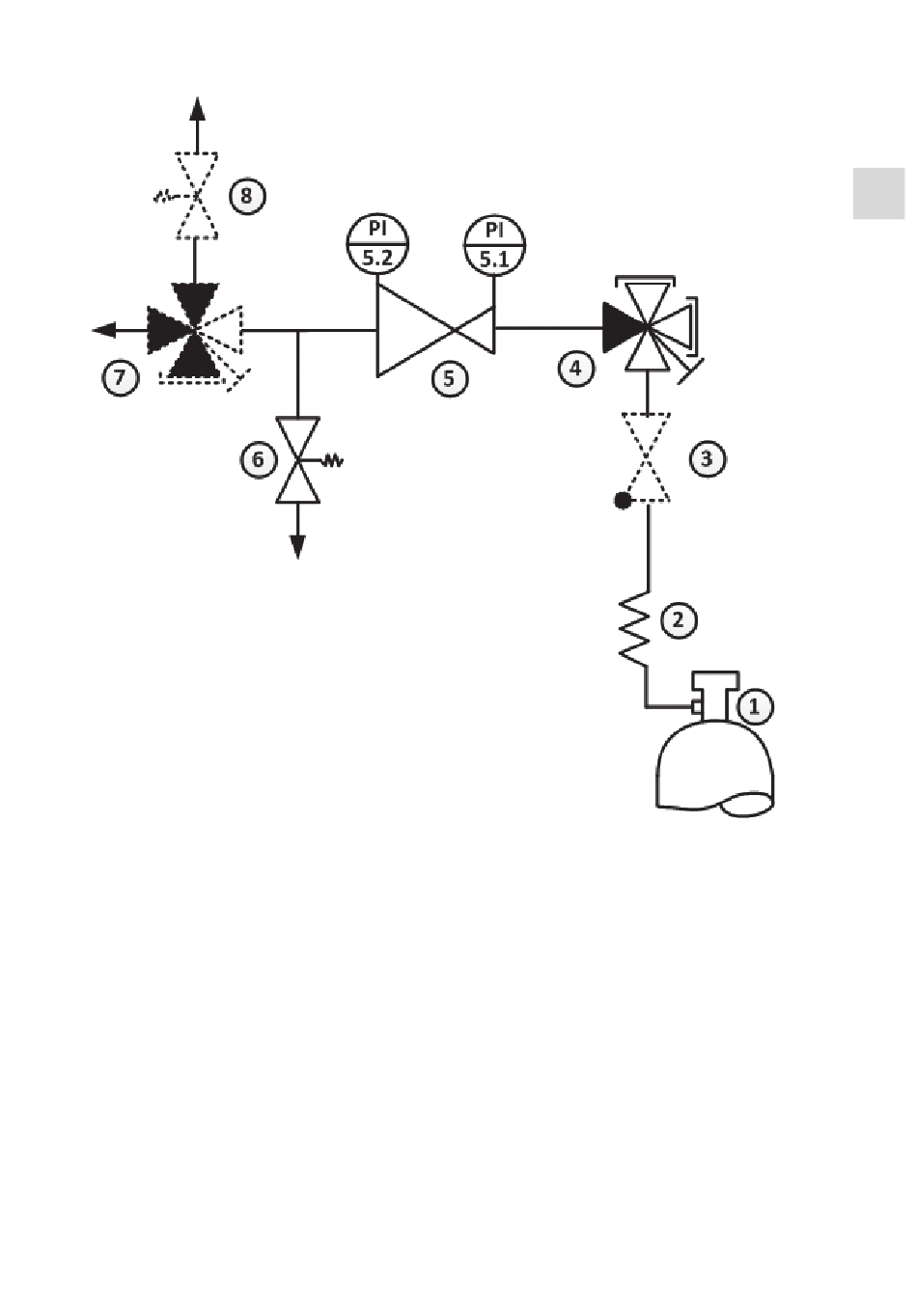

3.3. FLOW SCHEME – MPLH0XSS/ MSLH0XSS, MPLHEXSS/ MSLHEXSS
EN
1 – GAS CYLINDER
2 – COIL/HOSE
3 – CHECK VALVE
4 – SHUT-OFF VALVE (3XIN, 1XOUT)
5 – PRESSURE REGULATOR
6 – RELIEF VALVE
7 – SHUT-OFF VALVE (1XIN, 3XOUT)
8 – SAFETY VALVE
Options are shown as dotted line
