Installation

3.4 Water filter

(Optional)
The product may have internal or external filter,
depending on the model. To attach the water filter,
follow the instructions below.

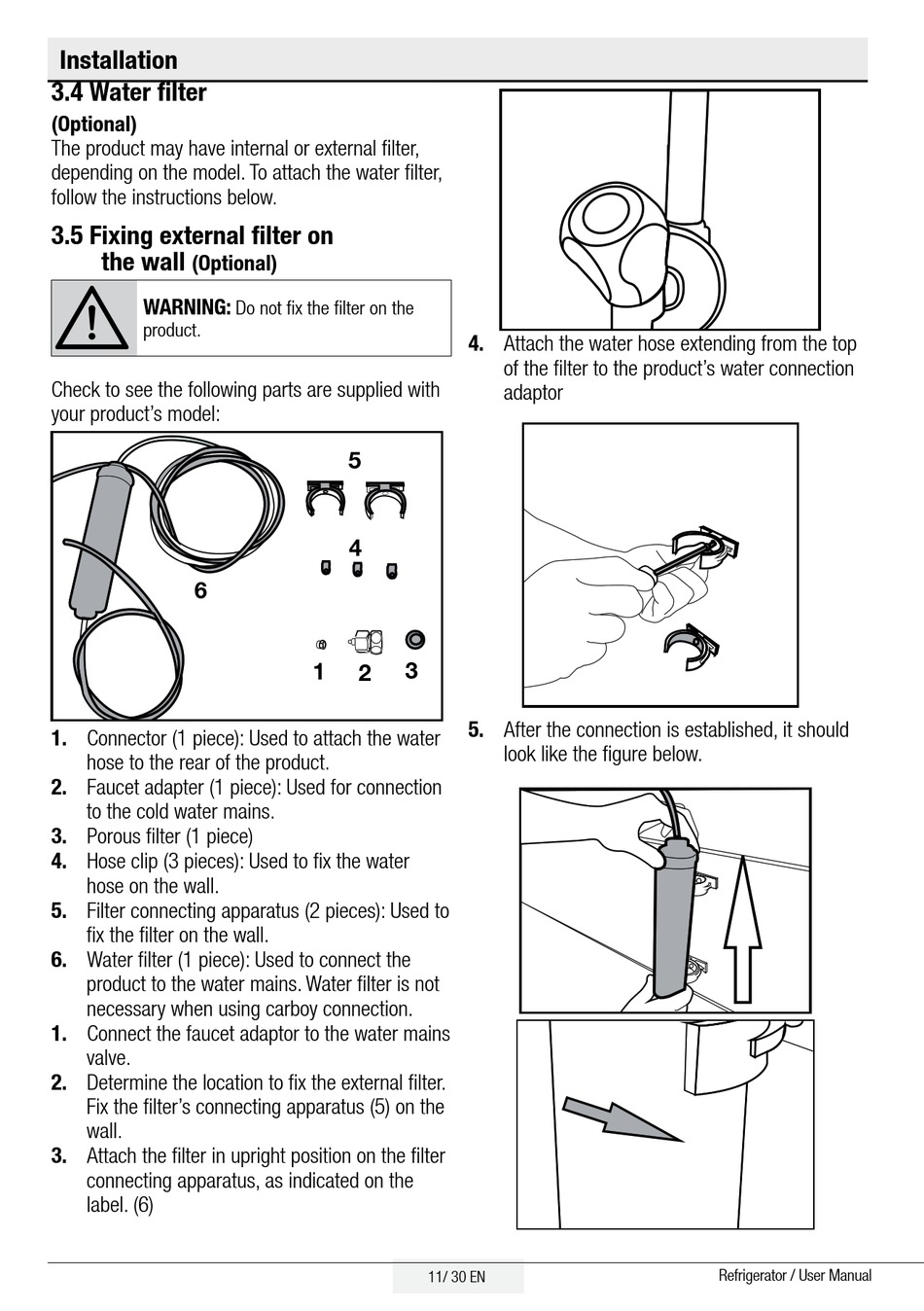

3.5 Fixing external filter on
the wall
(Optional)
A
WARNING:
product.
Check to see the following parts are supplied with
your product's model:
6
1. Connector (1 piece): Used to attach the water
hose to the rear of the product.
2. Faucet adapter (1 piece): Used for connection
to the cold water mains.
3. Porous filter (1 piece)
4. Hose clip (3 pieces): Used to fix the water
hose on the wall.
5. Filter connecting apparatus (2 pieces): Used to
fix the filter on the wall.
6. Water filter (1 piece): Used to connect the
product to the water mains. Water filter is not
necessary when using carboy connection.
1. Connect the faucet adaptor to the water mains
valve.
2. Determine the location to fix the external filter.
Fix the filter's connecting apparatus (5) on the
wall.
3. Attach the filter in upright position on the filter
connecting apparatus, as indicated on the
label. (6)
Do not fix the filter on the
5
4
1 3
2
4. Attach the water hose extending from the top
of the filter to the product's water connection
adaptor
5. After the connection is established, it should
look like the figure below.
11/ 30 EN
Refrigerator / User Manual
