5.5

INSTALLATION SCHEMATIC DIAGRAM

The heating circuit filling station is installed directly in the feeding line leading to the heating system (see
fig. 1) or, in the case of a mobile heating circuit filling station, directly in the feeding line.
1

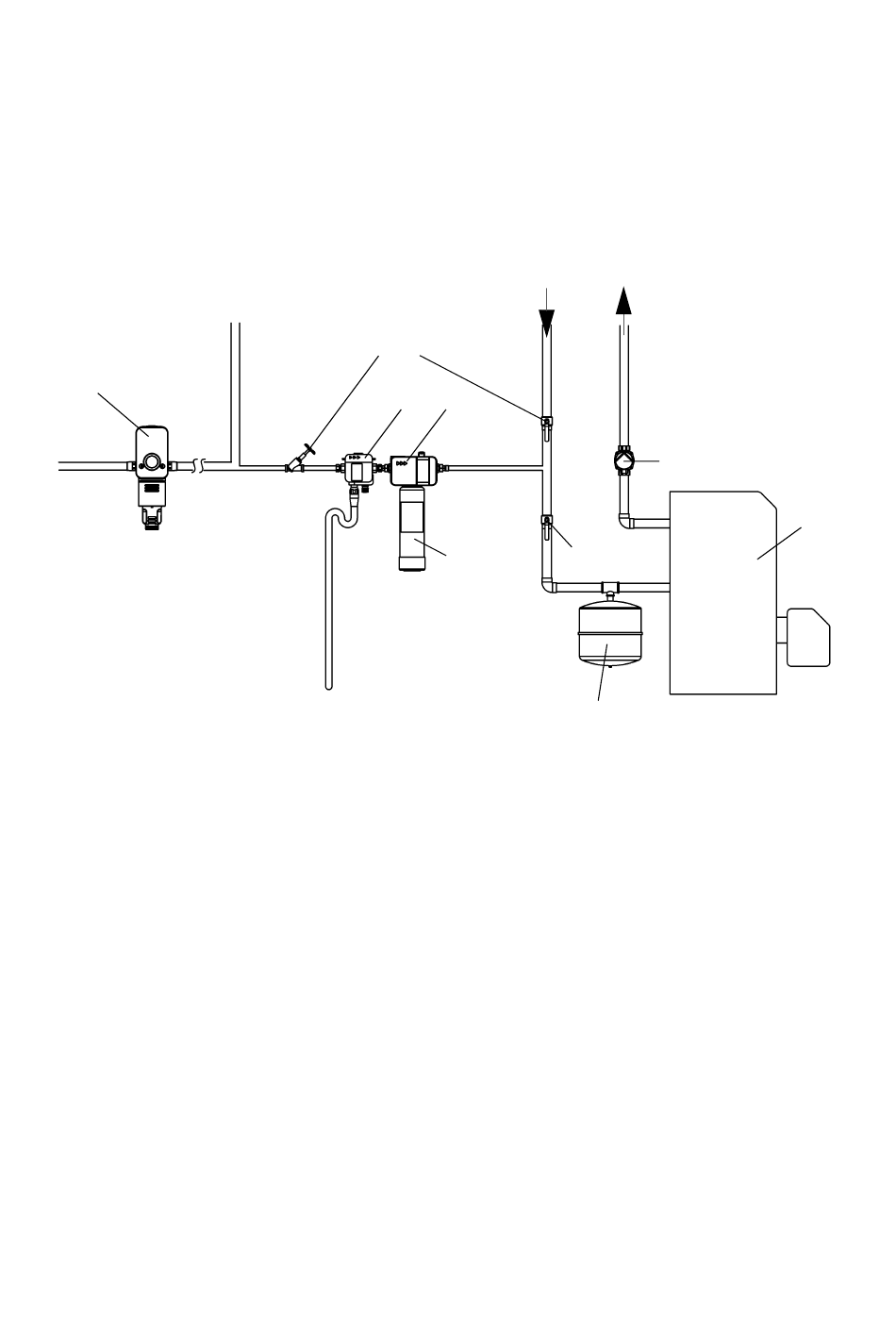

Fig. 1: CLEAR FILL heating filling with integral heating circuit filling station
1 CONEL CLEAR 2.0 RD domestic water station
2 CONEL CLEAR FILL heating filling block
3 CONEL CLEAR FILL PLUS heating circuit filling station (fixed mounting version)
4 CONEL CLEAR FILL desalination or softening bottle (see chapter 12 "ACCESSORIES")
Heating return
Shut-off valve
2 3
4
Heating flow
Circulation pump
Shut-off
valve
Expansion vessel
39
Boiler
