OPERATION

The chapter 4.1 "INTENDED USE" must be observed without fail!
Before filling the heating circuit filling station with softened/desalinated water for the
first time, the heating system must be bled. To start filling the system, completely open
the upstream and downstream shut-off valves. Once the system is filled or has been
topped up, close the upstream and downstream shut-off valves again.
6.1

FUNCTION DESCRIPTION

Upstream
digital
water meter
Power supply unit
Direction of
flow arrows
Insulation shell
The heating circuit filling station is used for filling and topping up hot-water heating systems with softened
or desalinated water.
The heating circuit filling station is operated with resin bottles that are filled with high-quality mixed-bed
exchange resin (for desalination) or cation exchange resin (for softening).
Display and Sampling valve
keypad
Bleeding hose

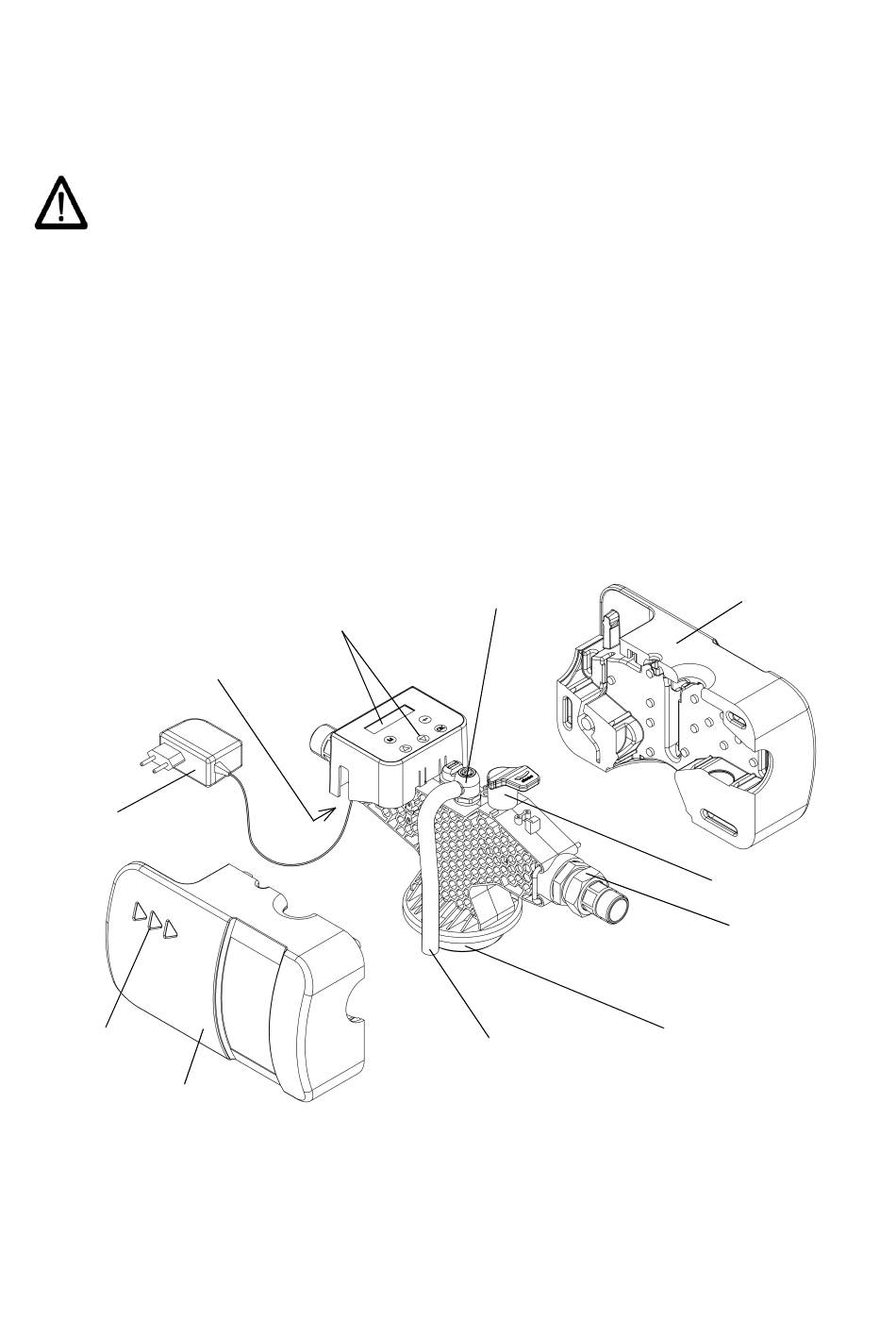

Fig. 3: Function description
Insulation
shell
Downstream ball
valve
Union nut
Connection thread
