F. Enter Windows system. Click the icon on the lower right hand
taskbar to enter Realtek HD Audio Manager. Click "Audio I/O", select
"Connector Settings"
detection", and save the change by clicking "OK".

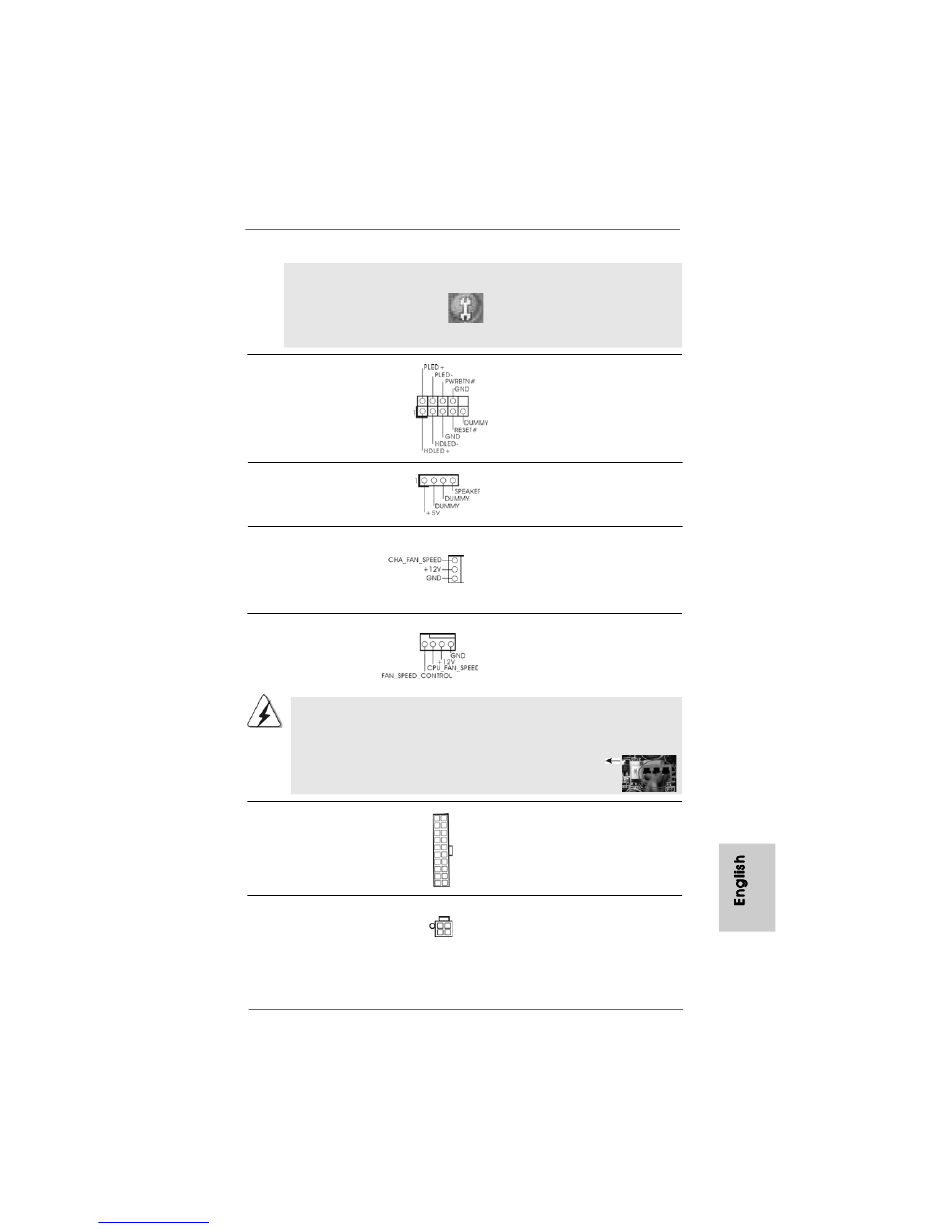

System Panel Header
(9-pin PANEL1)
(see p.2 No. 16)
Chassis Speaker Header
(4-pin SPEAKER 1)
(see p.2 No. 18)
Chassis Fan Connector
(3-pin CHA_FAN1)
(see p.2 No. 14)
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.2 No. 5)
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
ATX Power Connector
(20-pin ATXPWR1)
(see p.2 No. 28)
ATX 12V Power Connector
(4-pin ATX12V1)
(see p.2 No. 2)
ASRock
manuals search engine
, choose "Disable front panel jack
This header accommodates
several system front panel
functions.
Please connect the chassis
speaker to this header.
Please connect a chassis fan
cable to this connector and
match the black wire to the
ground pin.
Please connect the CPU fan
4 3 2 1
cable to this connector and
match the black wire to the
ground pin.
Pin 1-3 Connected
3-Pin Fan Installation
Please connect an ATX power
supply to this connector.
Please note that it is necessary
to connect a power supply with
ATX 12V plug to this connector.
Failing to do so will cause power
up failure.
AM2NF6G-VSTA Motherboard
