To replace the hinges
Disconnect the water line
CAUTION
• Make sure the water hoses are connected with matching colours. (only for Dispenser
model)
• To prevent water leaks, each water hose must be inserted fully to the centre of the
transparent coupler. (only for Dispenser model)
• Ensure that the water hose surface is not damaged. (only for Dispenser model)
Detach the fridge doors
RF9500_User-servicing-manual.indb 6

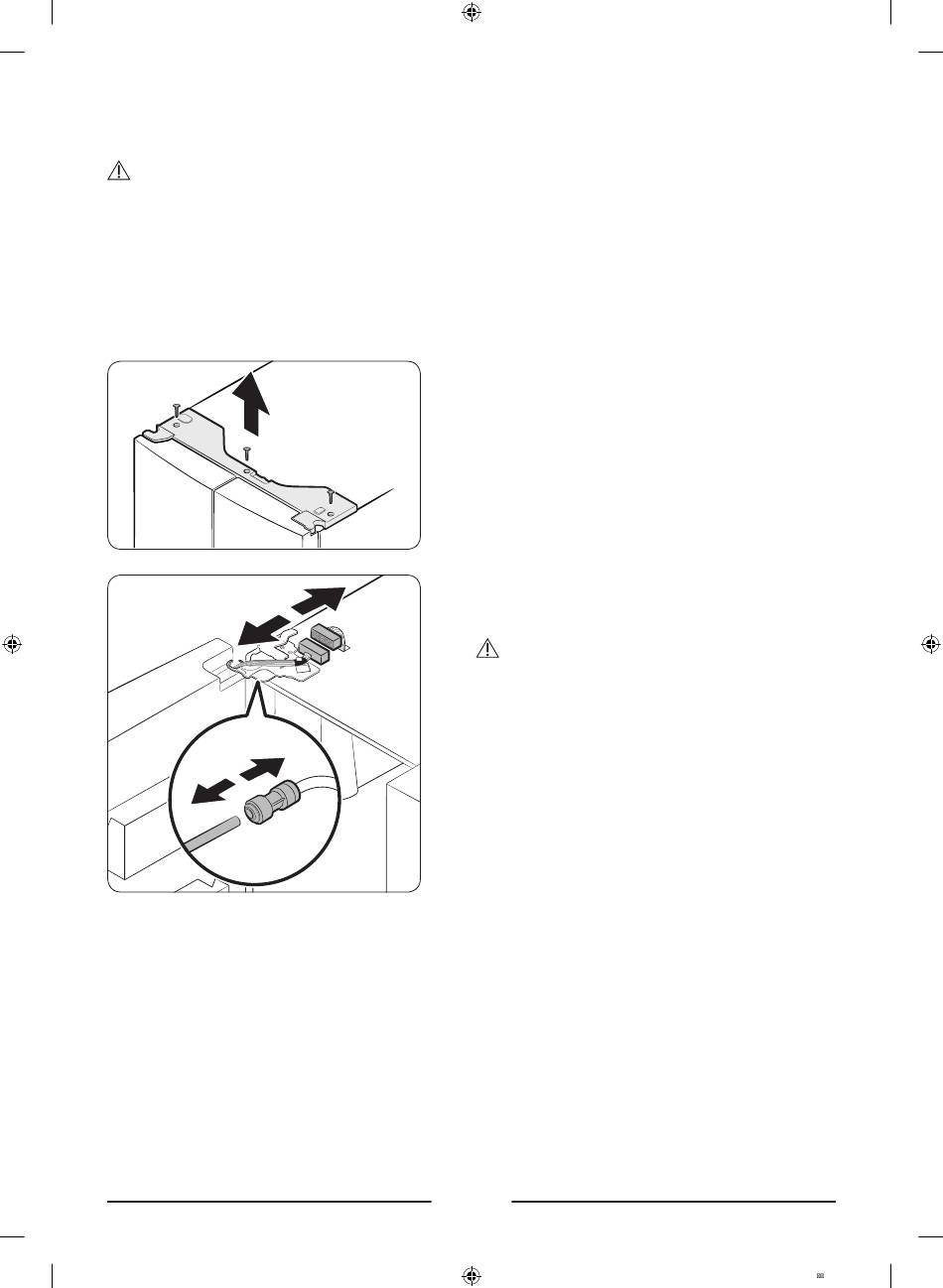

1. With the door closed, use a Phillips
screwdriver to remove the screws (x3)
from the top cover. Pull up and remove the
top cover with the connectors.
2. Disconnect the two connectors on the left
door. The position of the connectors differs
with the model.
CAUTION
• Do not remove both doors simultaneously.
Make sure to remove one door at a time.
Otherwise, any of the doors may fall and
cause physical injury.
• Make sure the refrigerator powers off
before disconnecting the connectors.
3. Disconnect the water tube from the
coupler on the left door as shown.
