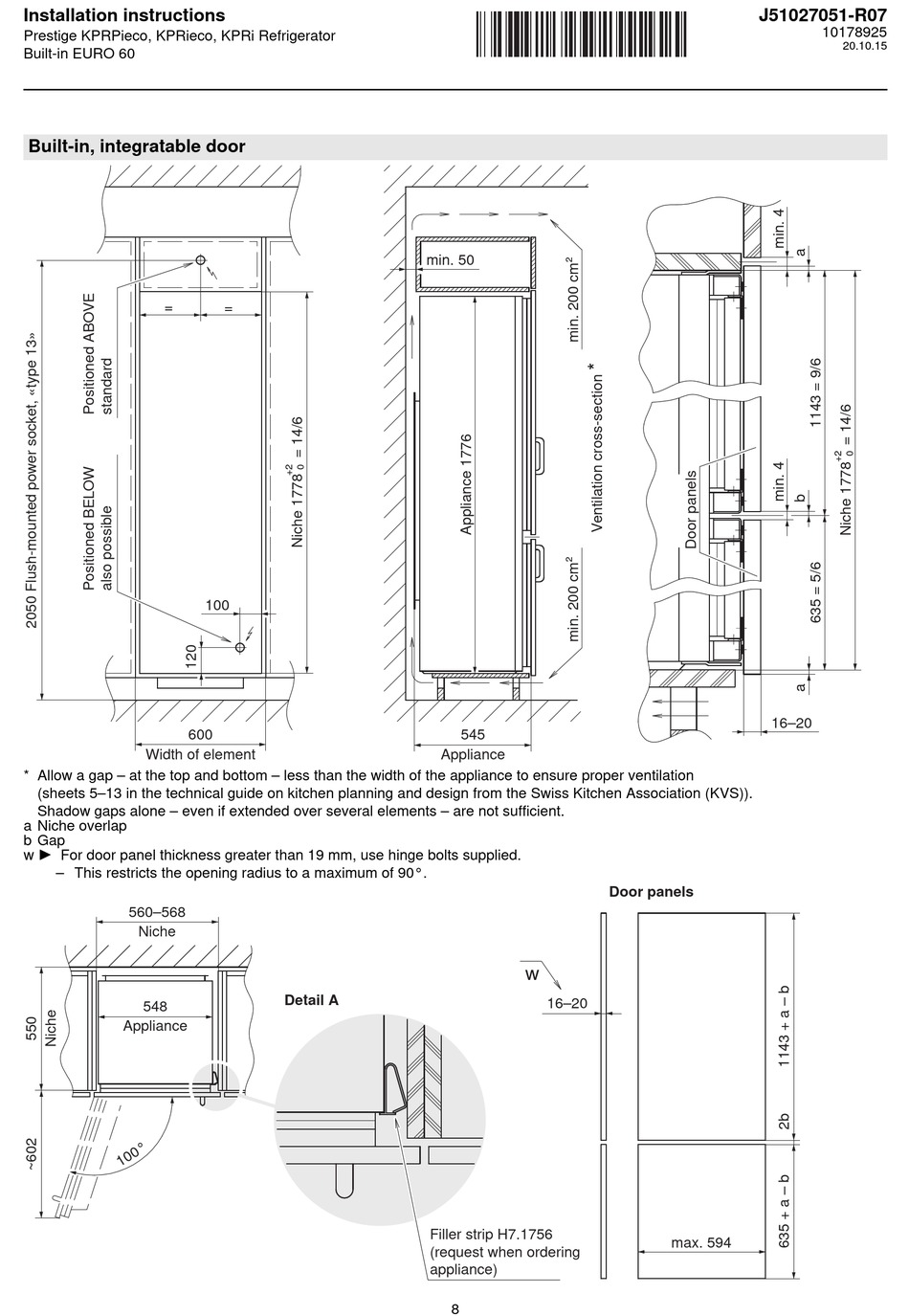

Installation instructions
Prestige KPRPieco, KPRieco, KPRi Refrigerator
Built-in EURO 60

Built-in, integratable door

=
600
Width of element
* Allow a gap – at the top and bottom – less than the width of the appliance to ensure proper ventilation
(sheets 5–13 in the technical guide on kitchen planning and design from the Swiss Kitchen Association (KVS)).
Shadow gaps alone – even if extended over several elements – are not sufficient.
a Niche overlap
b Gap
A
w For door panel thickness greater than 19 mm, use hinge bolts supplied.
– This restricts the opening radius to a maximum of 90°.
560–568
Niche
548
Appliance
=
100
Detail A
min. 50
545
Appliance
w
16–20
Filler strip H7.1756
(request when ordering
appliance)
8
J51027051-R07
16–20
Door panels
max. 594
