Removing the Monitor

Note: The Monitor is heavy, ensure that at least two (2) people are used to
remove the monitor

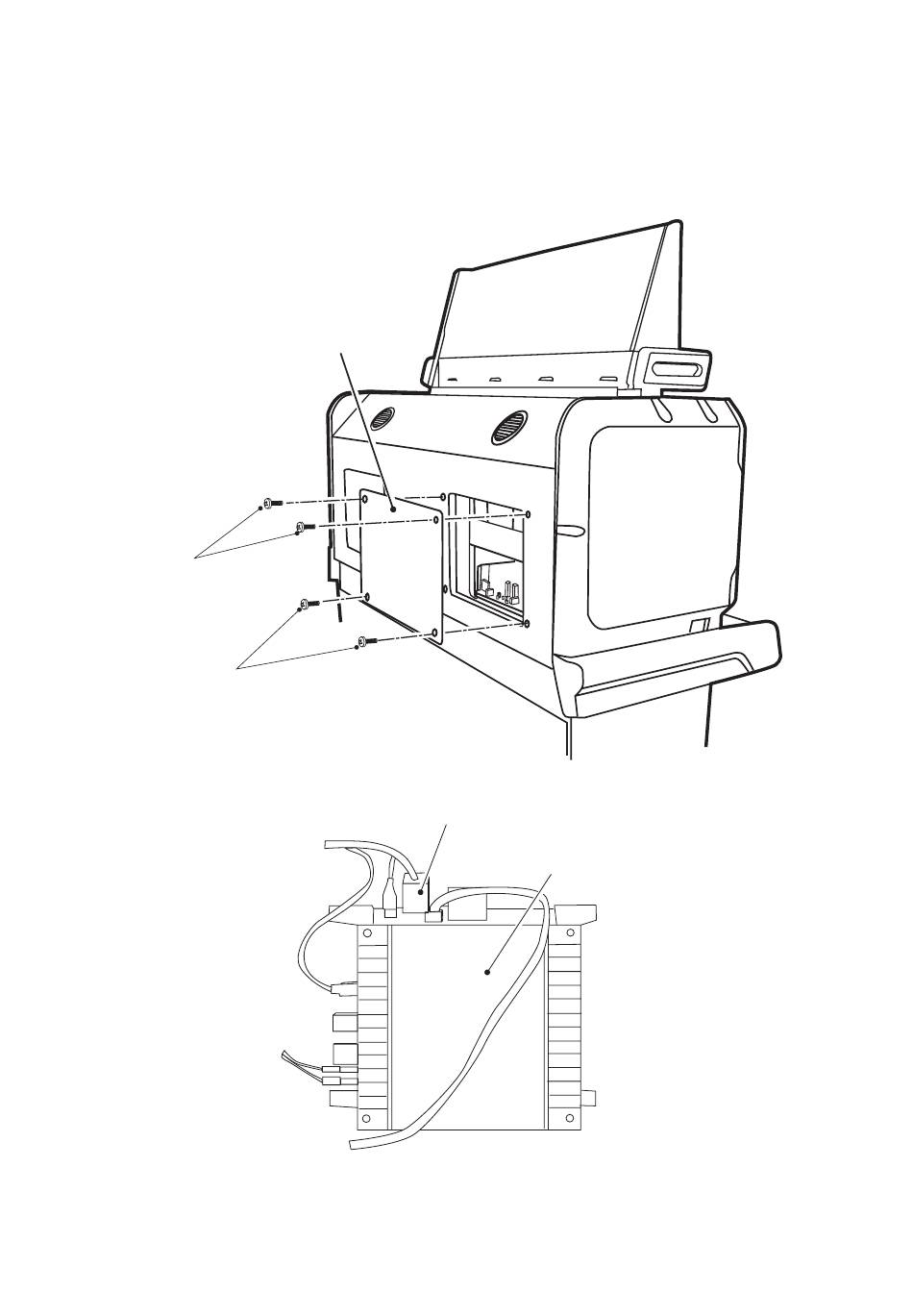

1. Remove 4off pozi head screw (M5x12), and remove the Monitor Rear Panel.
Pozihead screw
(M5x12)
Pozihead screw
(M5x12)
2. Disconnect the monitor connector from the Chihiro Game PC Board Assy, and
the monitor power cable from located in the bottom of the Monitor Cabinet.
Monitor
Rear Panel
Monitor Connector
Page 103
Chihiro
Game PC Board Assy
