7-16

Replacing the Pedal Stop Rubber

1. Remove the pedal assembly.
2. Remove the countersunk washer nut and hex head screw (M6x60).
3. Replace the stop rubber.
4. Reassemble in reverse order.
Note: After replacing the damper ensure that the game is re-initialized.
(see 5-6 page 45)
(see 7-14 page 95)

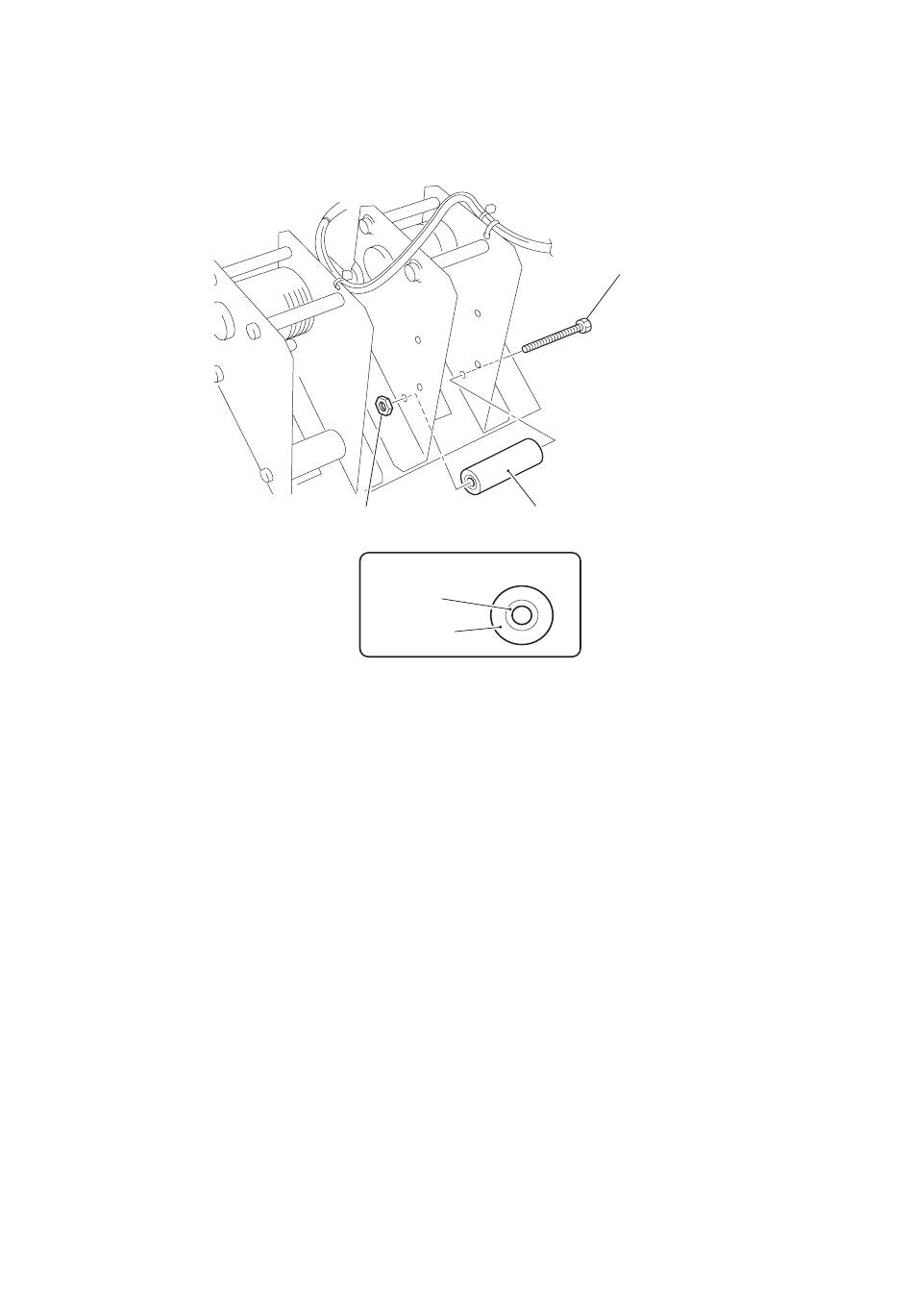

Countersunk washer nut
Cross section
Spacer
Cushion
Page 102
Hexagonal bolt (M6 x 60 )
Cushion and spacer
