Impianto Idraulico; Impianto Pneumatico - RAVAGLIOLI RAV1110NKMB Übersetzung Der Originalanleitung

11.1

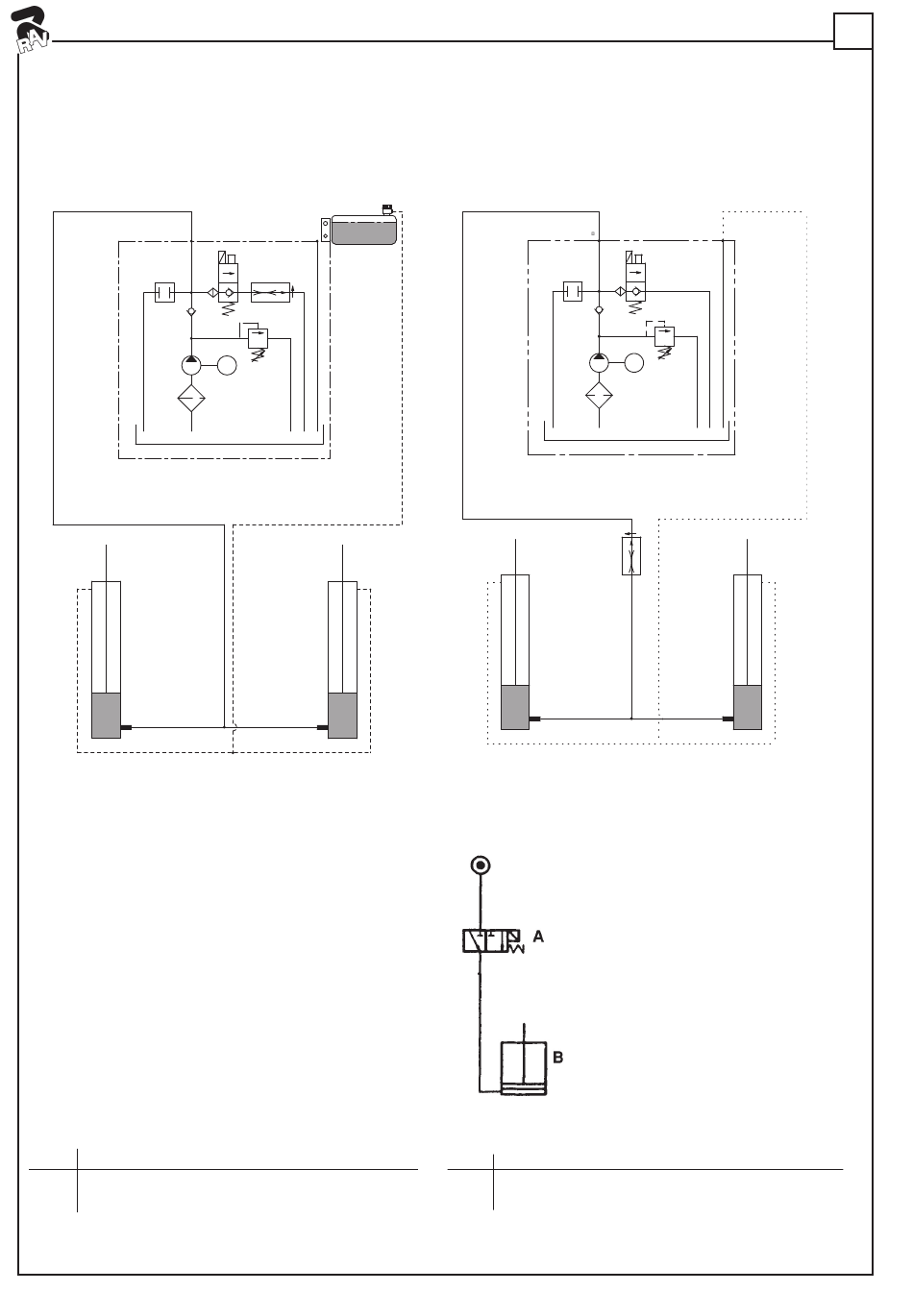

IMPIANTO IDRAULICO

11.1 HYDRAULIC SYSTEM
11.1 HYDRAULIKANLAGE
11.1 INSTALLATION HYDRAULIQUE
11.1 INSTALACIÓN HIDRÁULICA
P
TC1
8.5cc/giro
PG16
11.2

IMPIANTO PNEUMATICO

11.2 PNEUMATIC SYSTEM
11.2 DRUCKLUFTANLAGE
11.2 INSTALLATION PNEUMATIQUE
11.2 SISTEMA NEUMÁTICO
RIFER. NOMENCLATURA
A ELETTROVALVOLA CILINDRETTI
B CILINDRETTI SGANCIO ARPIONI
56
324394
T
VRF35-16
16 l/min
150 bar
M
SP17H 8L
TC1
8.5cc/giro
PG16
STF38-R
REF. NAME
A CYLINDER SOLENOID VALVE
B PAWL RELEASE CYLINDERS
0494-M004-0
VERSION C
324403
T
150 bar
M
SP17H 8L
16 l/min
