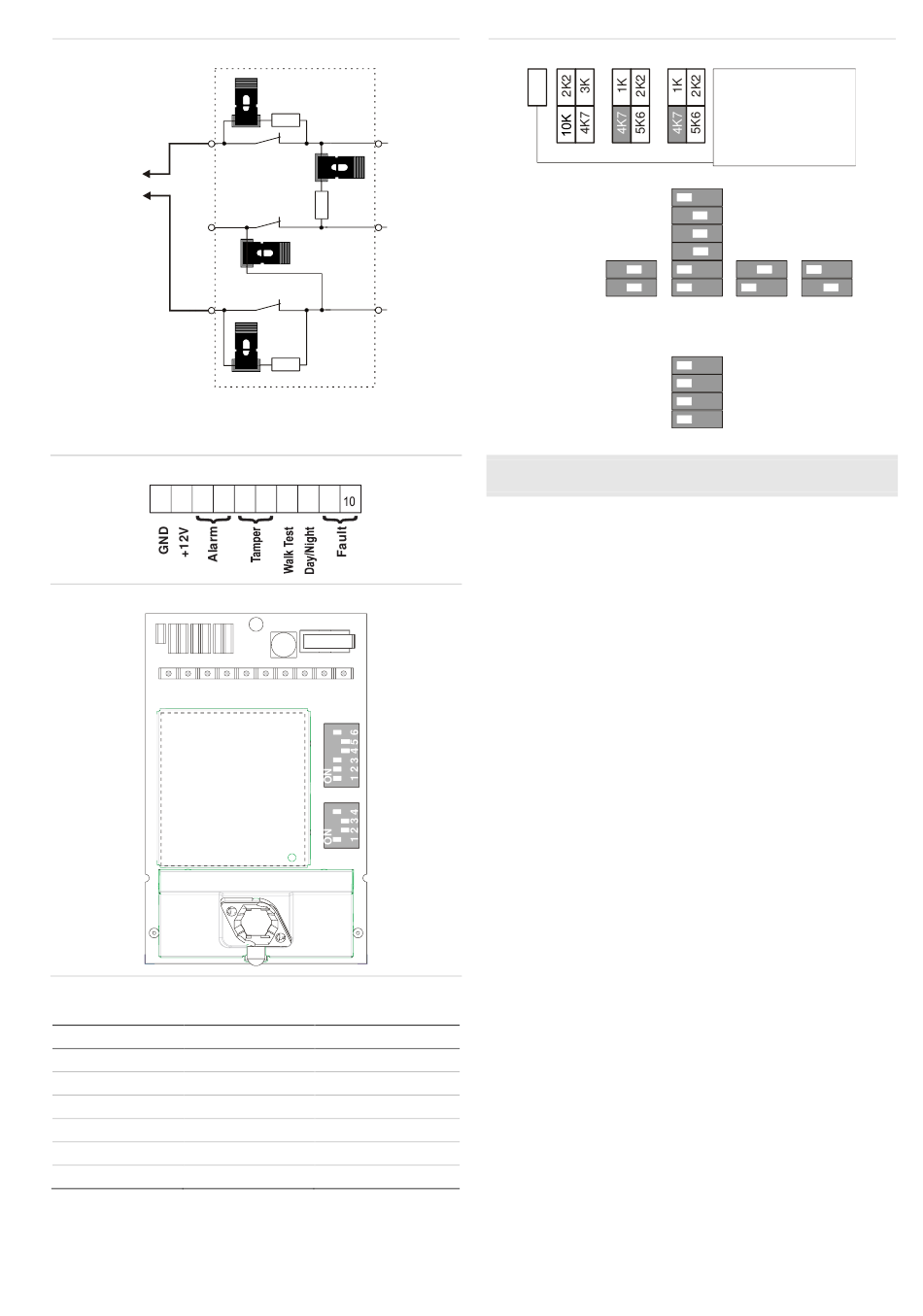

Interlogix DDV1016AM Installationsanleitung Seite 3

10
3
Alarm zone (2)
6
10
12
1 2 3 4
13
J1
JF JT JA
14
Single zone EOL
Zone state Value
0 Ω
Tamper (short)
Normal Rt
Alarm Rt+Ra
Fault Rt+Rf
AM* Rt+Ra+Rf
∞
Tamper (open)
* SW2-4 must be set to On.
P/N 146667999-1 (ML) • REV G • ISS 19AUG19
All manuals and user guides at all-guides.com
Ra
4
JA
Alarm (1)
JT
Rt
Tamper (3)
5
J1
Fault (4)
9
JF
Rf
5 6 7 8 9
SW1
SW2
Default
0 Ω
4.7 kΩ
9.4 kΩ
14.7 kΩ
19.4 kΩ
∞
11
J1
JF JT
SW1 - Generic settings
LED ON
Remote ON
Auto Rem. Test ON
Positive Polarity
Range
2
1
10 m
( 3 ft ) 3 .
SW2 - AM/Fault settings
Mask to alarm and
fault relay
Auto reset
Advanced AM sens.
AM Day mode only
EN: Installation Sheet
Description
DDV1016AM(-D)(-B) is a dual AM motion sensor.
It combines the patented PIR mirror optics technology with the
patented Range Controlled Radar technology.
Installation guidelines
See Figure 1.
The detector is intended to be mounted on walls but can also
be mounted on ceilings by using a mounting bracket.
Use the following guidelines to determine the best location to
install the detector.
•
Mount the detector so the expected movement of an
intruder is across the detection pattern (see Figure 3).
•
Mount the detector at a stable surface at a height between
2.0 m and 3.0 m (6.6 and 9.8 ft.) from the floor.
•
Do not mount the detector within 0.5 m (1 ft. 8 in.) of
metallic objects or within 1.5 m (4 ft. 11 in.) of fluorescent
lights.
•
Do not place objects in front of the detector that may
prevent a clear line of sight.
•
Place detectors at least 6 m (19 ft. 8 in.) apart, and use
the short-range setting to avoid interference, when
mounting detectors face to face.
The dual technology processing of this detector is very
resistant to false alarm hazards. However, avoid potential
causes of instability, such as:
PIR hazards:
•
Direct sunlight on the detector
•
Heat sources within the detector field of view
•
Strong air draughts onto the detector
•
Animals in the field of view
J1
On = 3 resistor single
zone
(Terminal 3-10)
Off = Isolated fault
JA contact
LED OFF
6
Remote OFF
5
Auto Rem. Test OFF
4
Negative Polarity
3
2 2 2 2
1 1 1 1
16 m 12 m 14 m
( 52 . ft ) ( 39 . ft ) ( 46 . ft )
Mask to fault relay
4
only
3
Authorized reset
2
Standard AM sens.
1
AM Day and Night
