1. DMX-IN: 3-pole male XLR socket for connecting DMX signal
2. DMX-OUT: 3 pole female XLR socket for routing DMX signal
3. POWERCON: compatible power input
4. POWERCON: compatible power output
5. LED-DISPLAY: LED display: Displays the current mode and set up values
Mains wire connection layout
Wire Pin
Braun Phase
Blue Neutral
Yellow/Gre Ground
en
The protective ground must be connected!
The device has 4 operating modes (static colors, automatic programs, music-controlled programs and DMX). You
can set and change the various operating modes via the on-board menu. In DMX mode, the functions are
controlled with 2, 3, 4, 7, or 16 channels. An IR remote control is available. The functions that can be called up can
be found in the instructions for the remote control.

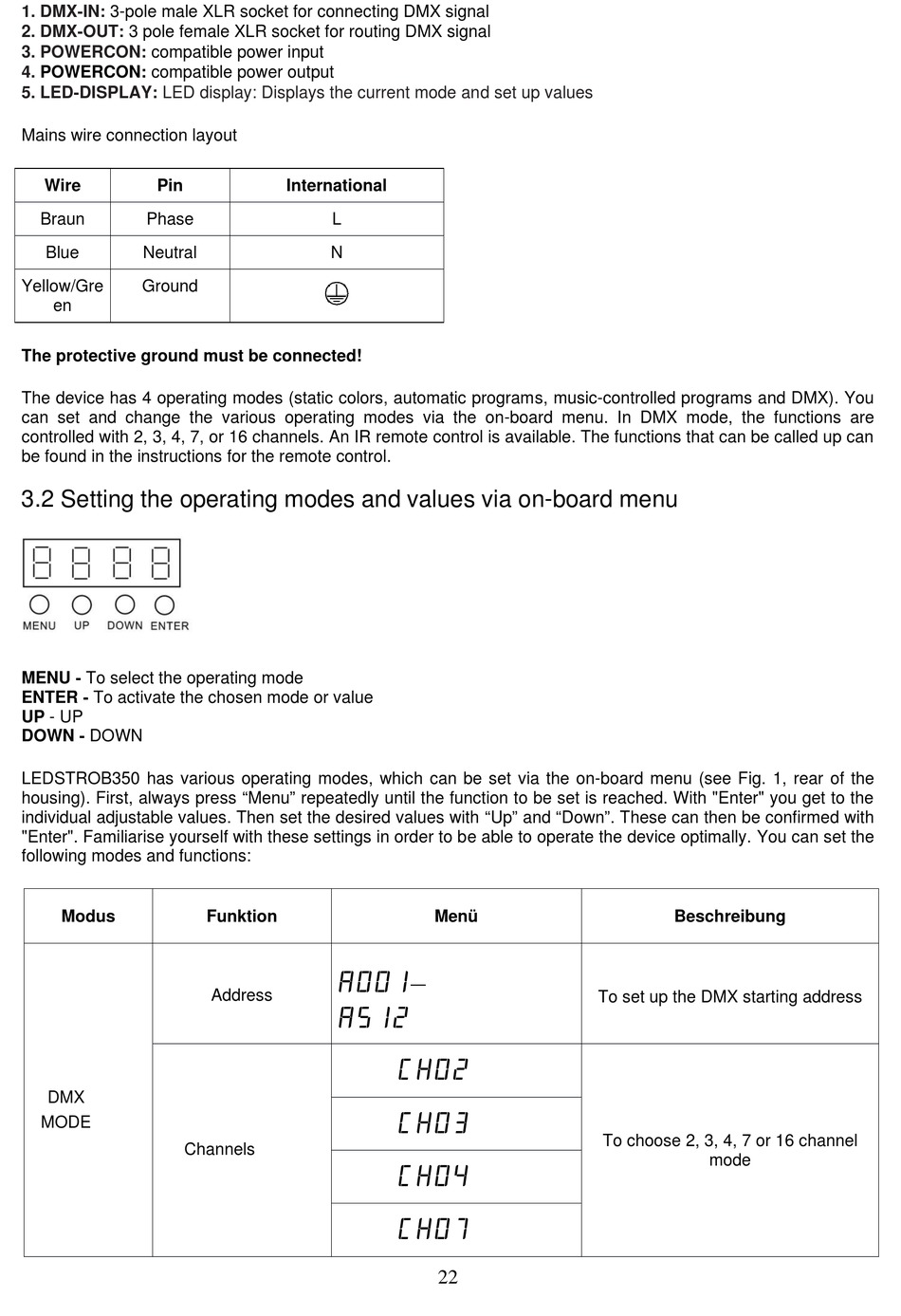

3.2 Setting the operating modes and values via on-board menu

MENU - To select the operating mode
ENTER - To activate the chosen mode or value
UP - UP
DOWN - DOWN
LEDSTROB350 has various operating modes, which can be set via the on-board menu (see Fig. 1, rear of the
housing). First, always press "Menu" repeatedly until the function to be set is reached. With "Enter" you get to the
individual adjustable values. Then set the desired values with "Up" and "Down". These can then be confirmed with
"Enter". Familiarise yourself with these settings in order to be able to operate the device optimally. You can set the
following modes and functions:
Modus
DMX
MODE
Channels
International
L
N
Funktion
A001–
Address
A512
Menü
CH02
CH03
CH04
CH07
22
Beschreibung
To set up the DMX starting address
To choose 2, 3, 4, 7 or 16 channel
mode
