INSTRUCTION MANUAL

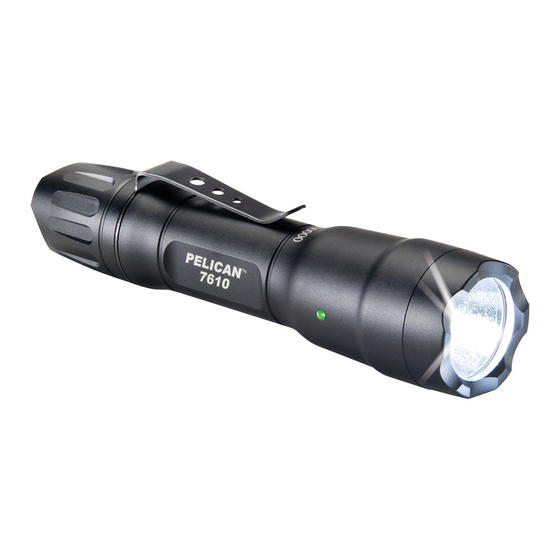

This compact torch produces an ultra bright pre-focused light beam by using a high-efficiency
LED powered by either (1) AA alkaline, (1) CR123 lithium, (2) CR123 lithium, (1) 18650 lithium ion
rechargeable or (1) AA NiMH rechargeable battery. The 7610 torch is designed for easy use with one
hand operation and has a dual-switch mode for constant-on or momentary-on activation. The 7610
body is made by high precision CNC machines from aerospace-grade aluminum alloy and is hard
anodized for the most durable construction. The lens is constructed with anti-reflective (AR) glass
for added durability and increased light output. The 7610 carries an ingress protection level of IPX8,
which allows for use in the most inclement weather conditions.
TO INSERT BATTERIES
1. Remove the tail cap by turning counter-clockwise.
Install battery (see figure 1) with + terminal facing to the head assembly.
2.
3. Replace the tail cap onto the torch by turning clockwise until sealed.
OPERATION
To select a program, partially depress the button (momentary press, do not click) as indicated
in the table below and hold until the 7610 flashes in acknowledgment.
The light will flash to let you know that a new program has successfully been selected.
The number of flashes indicates the program number.
Program 1 (default)
Program 2
Program 3
Program 4
Program 5
To change the mode within a program, depress the button (momentary, do not click) once for each
step in the program. Presses need to be within .5 second.
Fully depress the switch to lock on the desired mode.
To turn off, fully depress the switch once more.
The 7610 has a full-time battery status indicator built in.
The small LED between the collar and the head indicates the battery status when the light is turned on:
Green = Full
Amber = Mid
Red = Low
Note: The battery status indicator is calibrated for one AA alkaline battery or one 18650 Lithium Ion battery. It will not show accurate
battery status with any other usable battery types.
TO CHANGE BATTERIES
1. Remove the tail cap by turning counter-clockwise until it comes off the rear of the 7610 torch.
2. Remove the used battery from the 7610 torch.
3. Install the new battery with + terminal facing to the head assembly.
4. Replace the tail cap by turning clockwise until sealed.
GENERAL CARE & MAINTENANCE
1. Clean o-rings with a soft clean cloth to insure that sealing area is free of dirt that could destroy the o-ring
seal.
2. Apply a light coat of clear silicone grease on the o-rings occasionally if turning action becomes too difficult.
3. Remove the tail cap and wipe the rear threads of the 7610 torch body and inside of the tail cap with a soft
clean cloth occasionally to avoid intermittent torch operation.
CAUTION
To prevent the 7610 torch coming on accidentally when the torch is stored, remove the batteries.
If the 7610 torch is turned on while it is in a container, the torch can overheat and damage the torch
or the material of the surrounding area.
SPECIFICATIONS
BULB:
BATTERY:
O-RING MAINTENANCE
Check closely for cuts, scratches, or otherwise damaged o-ring or mating lens lip surface.
Remove any dirt or foreign matter from o-ring sealing surfaces. Keep threads, o-ring groove and inside
lip of lens lubricated with silicone grease. See Warranty information for replacement of o-ring.
Battery Safety Bulletin: Alkaline Batteries
1. Hazardous location safety approvals for explosive environments are only valid for the specified
cell type manufacturer and, where applicable, brand names that are displayed on the Torch and/or
instructions sheets that are supplied with the light.
2. The use of other battery technologies may reduce the performance of the the Torch. Always read
the battery manufacturers recommendations for the appropriate use of the battery technology/brand
prior to using them in the Torch.
3. When replacing the batteries:
a. Replace all the batteries at the same time.
b. Do not mix battery brands and old and new batteries.
c. Always insert batteries correctly with regard to polarity (+ and -) marked on the battery and equipment.
4. Do not change batteries in a hazardous location.
5. Remove batteries from equipment if it is not to be used for an extended period of time
TORCHES/HEADLAMPS
LIMITED LIFETIME* GUARANTEE
Peli Products, S.L.U. ("Peli") guarantees its torches and headlamps for a lifetime* against
breakage or defects in workmanship. This guarantee does not cover the lamp or batteries.
Peli will either repair or replace any defective product, at our sole option. All claims under this
guarantee, of any nature, are barred if the product has been altered, damaged or in any way
physically changed, or subjected to abuse, misuse, negligence or accident.
*Lifetime guarantee not applicable where prohibited by law.
For complete details, see: www.peli.com/peli-warranty
