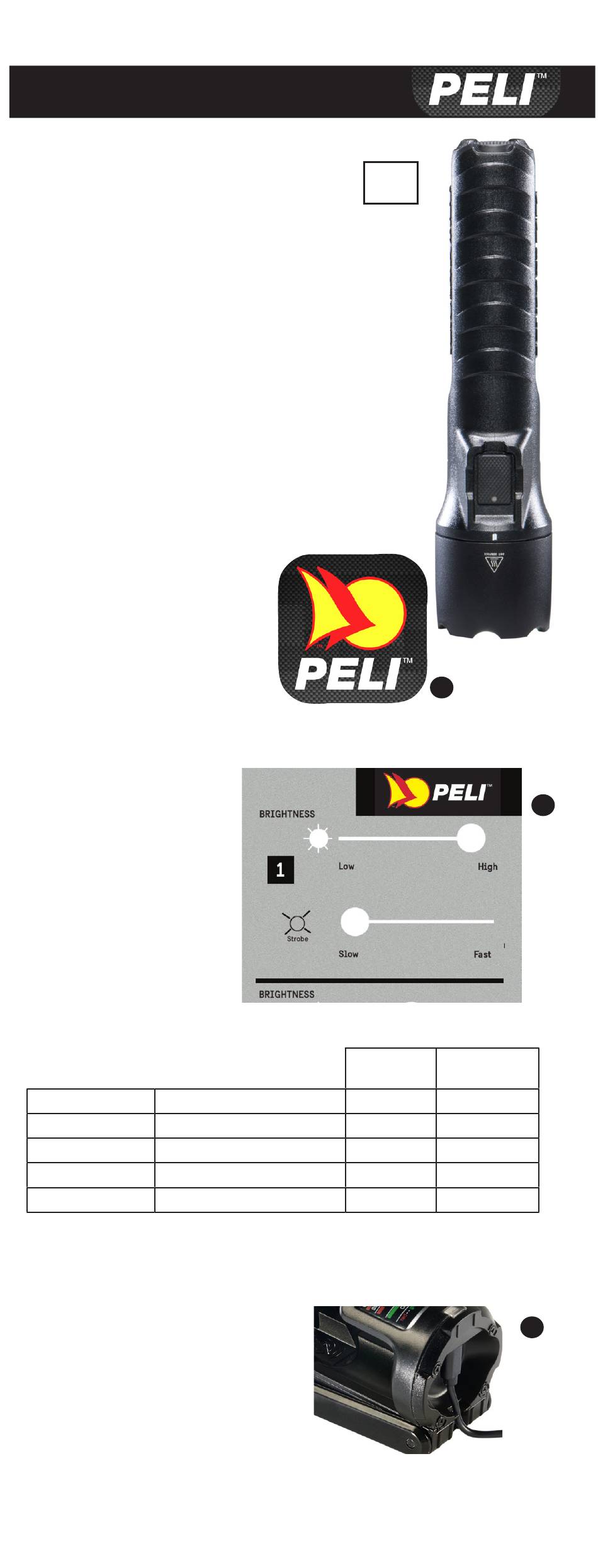

INSTRUCTIONS MANUAL
WARNING: Before disassembling any part of the 7070R
LED Torch, ensure that the Torch has not been operating for
five (5) minutes. During operation, the LED module can become
extremely hot and may cause injury if touched.
Torch Operation

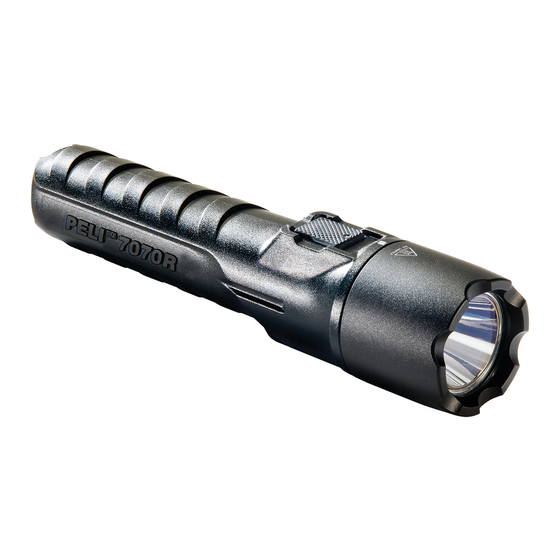

The 7070R LED is a high performance Torch for use by
professionals. This Torch comes equipped with dual switches and
includes a high output pre-focused LED lamp that emits a strong
light beam of white light. There is no need to focus the 7070R LED.
DO NOT SHINE THIS Torch DIRECTLY INTO ANY PERSON'S
EYES: THIS MAY RESULT IN INJURY.
Your 7070R battery pack comes to you partially charged and needs
to be fully charged prior to use (see charging instructions below).
Momentary Activation
Partially depress either switch for momentary operation.
Constant Activation – Fully depress either switch (click), to lock in
the selected mode.
Bluetooth App Programming
Download the "Pelican Torch" app from either the Apple
or Android stores.
1. A ctivate the Pelican Torch app from
your smartphone. See Image #1
2. Turn on the Torch
3. S elect "Scan Pelican Products"
from the menu on your smartphone
and select your 7070R via the
identified serial number.
Your Torch will now show connected.
4. O nce connected you can select up to
5 different modes and the sequence of those modes as numbered in the app.
Each selected mode allows for varied light output and/or varied strobe speed.
See Image #2
Manual Programming
To select a program using the
manual input, select one of the
five pre-set program options.
Note, the 7070R is
pre-programmed with Program #1.
To change program, partially
depress either switch (momentary
press, do not click) the number
of times as indicated in the table
below and hold the last press until
you see the coordinating number
of confirmation flashes.
Each press needs to be within .5 seconds of each other.
Program 1 (default)
Program 2
Program 3
Program 4
Program 5
Mode Selection
Partially depress either switch within .5 second increments to select the desired mode.
Each press with provide the mode in its programmed sequence. Fully depress the switch
to lock in the desired mode.
Light Off
Fully depress either switch (click), to turn off
the light from any activated mode.
Charging:
1. A ttach the USB Charge Cord to the
bottom of the Charger Base. See Image #3
High > Strobe > Medium > Low
High Only
High > Medium > Low >
Low > Medium > High >
High >Low >
EN
Momentary
presses
8
10
12
14
16
1
2
Confirmation
flashes
*
**
***
****
*****
3
