PELI 7110 Bedienungsanleitung

Cat. #7110
7110
INSTRUCTION MANUAL

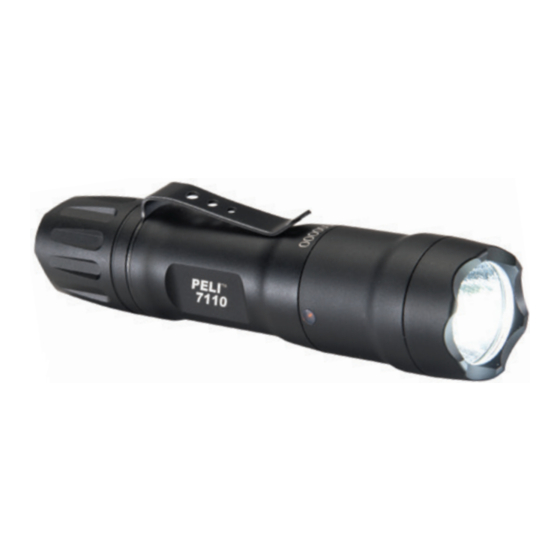

This compact torch produces an ultra bright pre-focused light beam by using a high-efficiency LED powered
by either (1) AA alkaline, (1) CR123 lithium or (1) AA NiMH rechargeable battery. The 7110 torch is designed
for easy use with one hand operation and has a dual-switch mode for constant-on or momentary-on activation.
The 7110 body is made by high precision CNC machines from aerospace-grade aluminum alloy and is hard
anodized for the most durable construction. The lens is constructed with anti-reflective (AR) glass for added
durability and increased light output. The 7110 carries an ingress protection level of IPX8, which allows for use
in the most inclement weather conditions.
TO INSERT BATTERIES
1. Remove the tail cap by turning counter-clockwise.
Install battery (see figure 1) with + terminal facing to the head assembly.
2.
3. Replace the tail cap onto the torch by turning clockwise until sealed.
OPERATION
To select a program, partially depress the button (momentary press, do not click) as indicated in the
table below and hold until the 7110 flashes in acknowledgment.
The light will flash to let you know that a new program has successfully been selected. The number
of flashes indicates the program number.
Program 1 (default)
Program 2
Program 3
Program 4
Program 5
To change the mode within a program, depress the button (momentary, do not click) once for each
step in the program. Presses need to be within .5 second.
Fully depress the switch to lock on the desired mode.
To turn off, fully depress the switch once more.
The 7110 has a full-time battery status indicator built in.
The small LED between the collar and the head indicates the battery status when the light is turned on:
Green = Full
Amber = Mid
Red = Low
Note: The battery status indicator is calibrated for one AA alkaline or one CR123 Lithium battery. It will not
show accurate battery status with any other usable battery types.
TO CHANGE BATTERIES
1. Remove the tail cap by turning counter-clockwise until it comes off the rear of the 7110 torch.
Remove the used battery from the 7110 torch.
2.
Install the new battery with + terminal facing to the head assembly.
3.
4. Replace the tail cap by turning clockwise until sealed.
GENERAL CARE & MAINTENANCE
1. Clean o-rings with a soft clean cloth to insure that sealing area is free of dirt that could destroy the o-ring
seal.
2. Apply a light coat of clear silicone grease on the o-rings occasionally if turning action becomes too difficult.
3. Remove the tail cap and wipe the rear threads of the 7110 torch body and inside of the tail cap with a soft
clean cloth occasionally to avoid intermittent torch operation.
CAUTION
To prevent the 7110 torch coming on accidentally when the torch is stored, remove the batteries.
If the 7110 torch is turned on while it is in a container, the torch can overheat and damage the torch
or the material of the surrounding area.
SPECIFICATIONS
BULB: LED
BATTERY:
(1) one AA alkaline, NiMH or CR123 battery
O-RING MAINTENANCE
Check closely for cuts, scratches, or otherwise damaged o-ring or mating lens lip surface.
Remove any dirt or foreign matter from o-ring sealing surfaces. Keep threads, o-ring groove and inside lip of
lens lubricated with silicone grease. See Warranty information for replacement of o-ring.
Battery Safety Bulletin: Alkaline Batteries
1. Hazardous location safety approvals for explosive environments are only valid for the specified cell type
manufacturer and, where applicable, brand names that are displayed on the Torch and/or instructions sheets
that are supplied with the light.
2. The use of other battery technologies may reduce the performance of the the Torch. Always read the
battery manufacturers recommendations for the appropriate use of the battery technology/brand prior to
using them in the Torch.
3. When replacing the batteries:
a. Replace all the batteries at the same time.
b. Do not mix battery brands and old and new batteries.
c. Always insert batteries correctly with regard to polarity (+ and -) marked on the battery and equipment.
4. Do not change batteries in a hazardous location.
5. Remove batteries from equipment if it is not to be used for an extended period of time
TORCHES/HEADLAMPS
LIMITED LIFETIME* GUARANTEE
Peli Products, S.L.U. ("Peli") guarantees its torches and headlamps for a lifetime* against
breakage or defects in workmanship. This guarantee does not cover the lamp or batteries.
Peli will either repair or replace any defective product, at our sole option. All claims under this
guarantee, of any nature, are barred if the product has been altered, damaged or in any way
physically changed, or subjected to abuse, misuse, negligence or accident.
*Lifetime guarantee not applicable where prohibited by law.
For complete details, see: www.peli.com/peli-warranty
MANUEL D'INSTRUCTIONS
Cette lampe de poche compacte produit un faisceau de lumière pré-focalisé ultra brillant en utilisant
une LED à haute efficacité alimentée par (1) pile AA alcaline, (1) CR123 lithium ou (1) batterie AA NiMH
rechargeable. La lampe de poche 7110 est conçue pour une utilisation simple avec une seule main et a un
mode à double commutation pour une activation constante ou momentanée Activation. Le corps 7110 est
fabriqué par des machines CNC de haute précision en alliage d'aluminium de qualité aérospatiale et anodisé
dur pour la construction la plus durable. L'objectif est construit avec un verre anti-réfléchissant (AR) pour une
durabilité accrue et une augmentation de la luminosité. Le 7110 porte un niveau de protection contre l'intrusion
d'IPX8, qui permet d'utiliser les conditions météorologiques les plus défavorisées.
High > Strobe > Medium > Low
High Only
High > Medium > Low
Low > Medium > High
High > Low
Momentary Confirmation
presses flashes
8
10
12
14
16
