Receiver

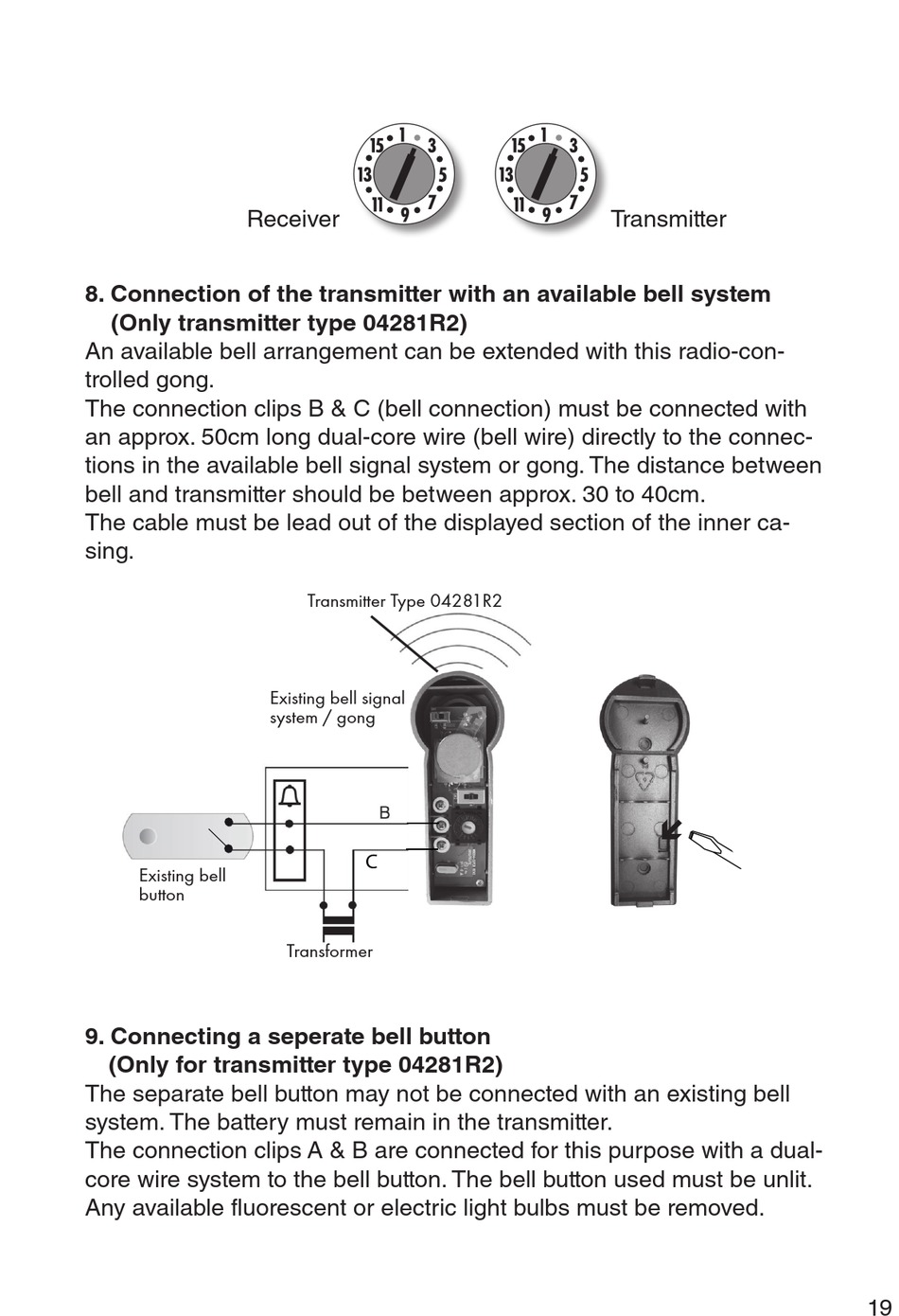

8. connection of the transmitter with an available bell system

(Only transmitter type 04281R2)
An available bell arrangement can be extended with this radio-con-
trolled gong.
The connection clips B & C (bell connection) must be connected with
an approx. 50cm long dual-core wire (bell wire) directly to the connec-
tions in the available bell signal system or gong. The distance between
bell and transmitter should be between approx. 30 to 40cm.
The cable must be lead out of the displayed section of the inner ca-
sing.
Existing bell
button

9. connecting a seperate bell button

(Only for transmitter type 04281R2)
The separate bell button may not be connected with an existing bell
system. The battery must remain in the transmitter.
The connection clips A & B are connected for this purpose with a dual-
core wire system to the bell button. The bell button used must be unlit.
Any available fluorescent or electric light bulbs must be removed.
Transmitter Type 04281R2
Existing bell signal
system / gong
C
Transformer
Transmitter

19
