EX-6032

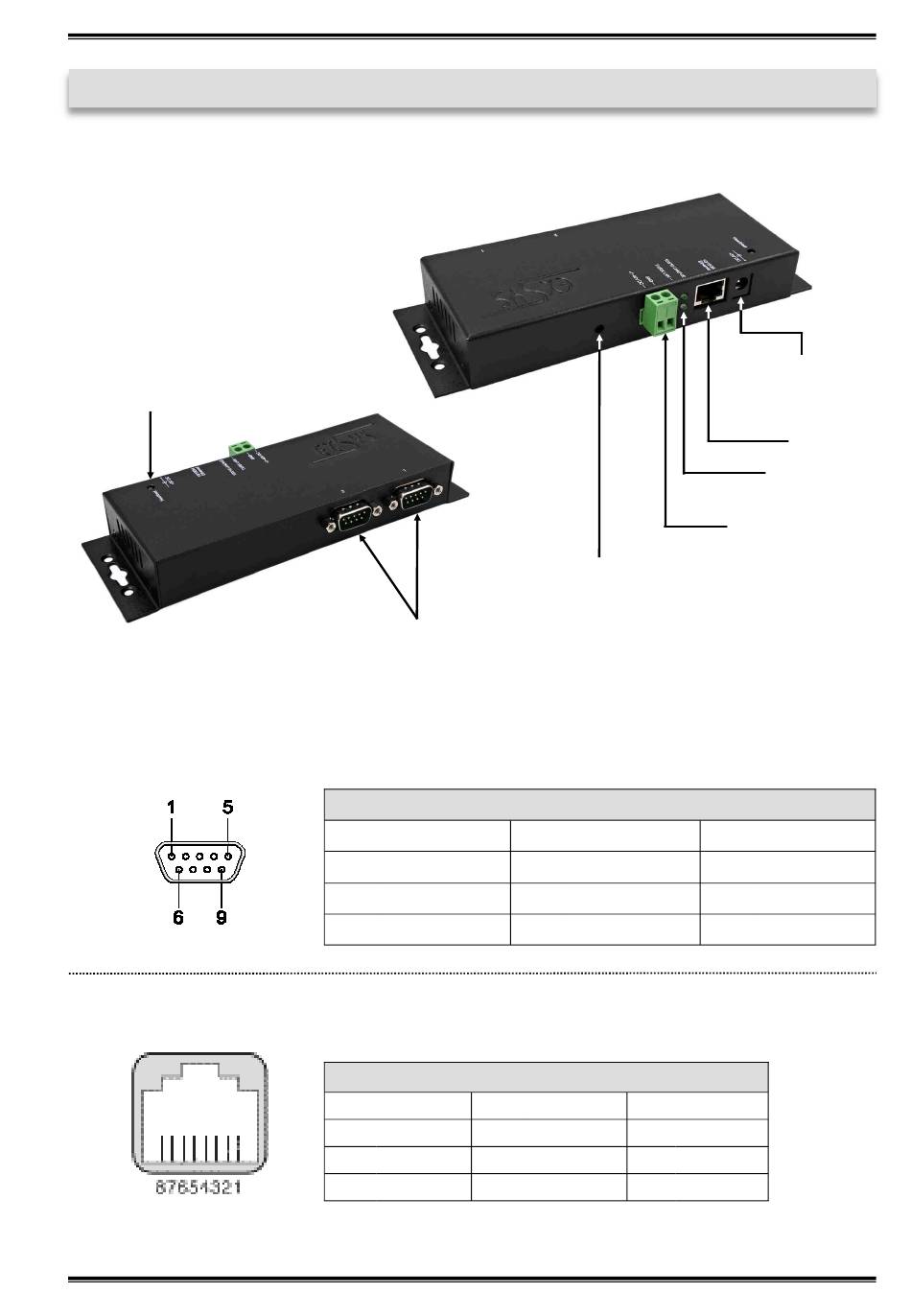

3. Layout, Connections & LED's

3.1 Layout

Power LED

3.2 Connections

DB 9M:
RJ45 Port:
© Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved
2x Serial 9 Pin D-SUB Connector
Serial 9 Pin D-SUB Connector
Pin Signal
1 DCD
2 RXD
3 TXD
RJ45 Port
Pin Signal
1 BI_DA+
2 BI_DA-
3 BI_DB+
Reset Button
Pin Signal
4 DTR
5 GROUND
6 DSR
Pin Signal
4 BI_DC+
5 BI_DC-
6 BI_DB-
17
English
5V DC Connector
for included
Power Supply
RJ45 Port
Status LED's
7-40V T-Block for
optional external
Power Supply
Pin Signal
7 RTS
8 CTS
9 —
Pin Signal
7 BI_DD+
8 BI_DD-
