Routing the Cable on the Weight Tower

The weight tower ships with the kick cover and pulley cover attached.
To route the cable on the weight tower:
1. Using a ⁵ ₃₂-inch hex bit, remove the screw and pulley cover and set them
aside.

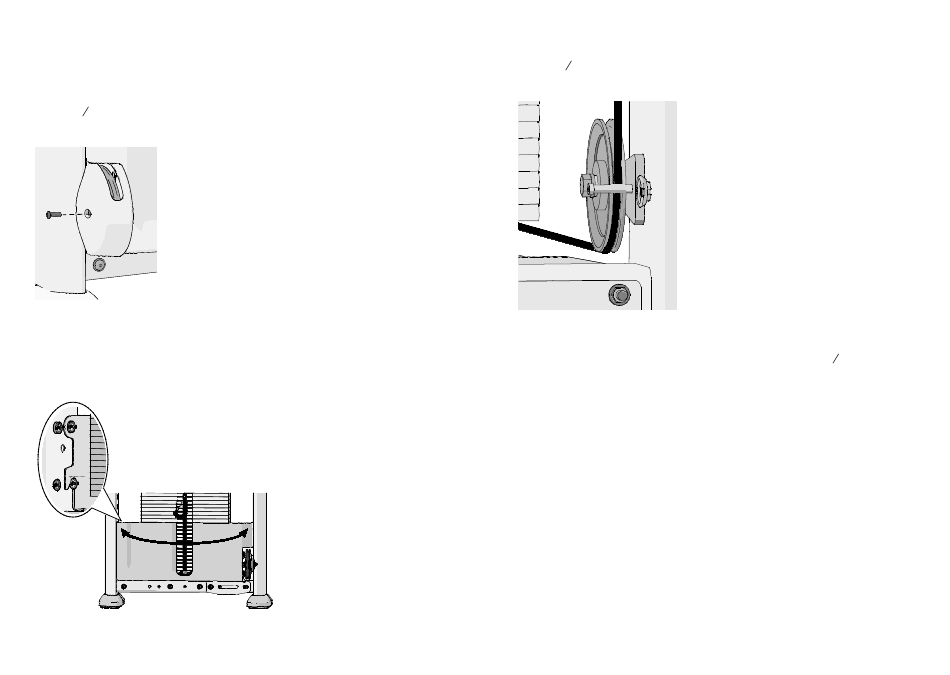

Figure 11: Kick plate pulley cover removal
2. Grasp the kick cover on either side (see arrows in the following figure) and
press inward slightly so that the notches on the back of the kick cover
unlock from their mounts.
Figure 12: Kick cover removal
Rear Delt/Pec Fly Assembly Guide: Routing the Cable Assembly
3. Gently lift the kick cover and set it aside.
4. Using a ⁵ ₃₂-inch hex bit, remove the shoulder bolt next to the pulley. Route
the cable around the pulley, then replace and tighten the shoulder bolt.
Figure 13: Cable and shoulder bolt position
5. Replace the kick cover and then the pulley cover using a ⁵ ₃₂-inch hex bit.
8
