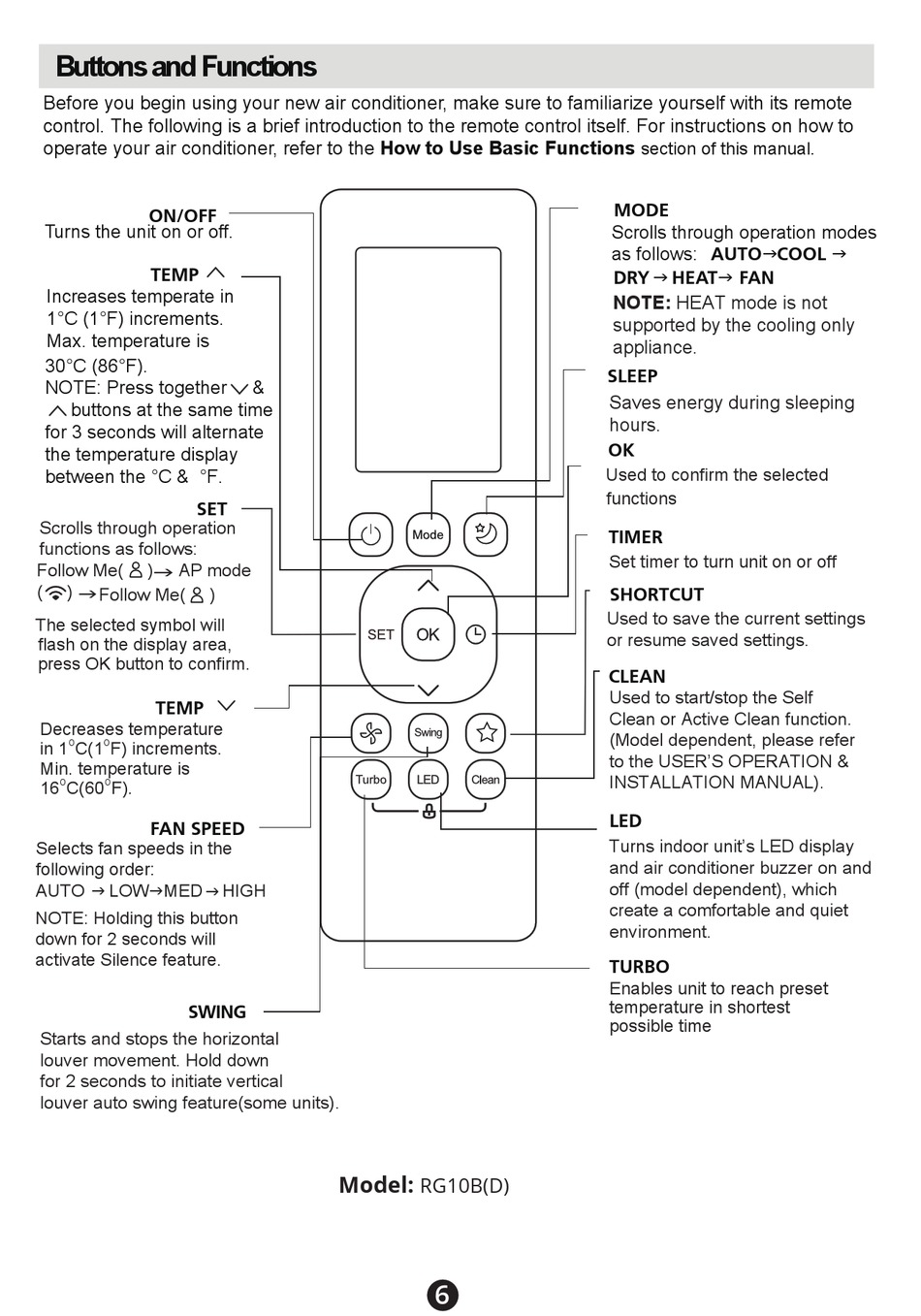

Buttons and Functions

Before you begin using your new air conditioner, make sure to familiarize yourself with its remote
control. The following is a brief introduction to the remote control itself. For instructions on how to
operate your air conditioner, refer to the How to Use Basic Functions
ON/OFF
Turns the unit on or off.
TEMP
Increases temperate in
1°C (1°F) increments.
Max. temperature is
30°C (86°F).
NOTE: Press together
buttons at the same time
for 3 seconds will alternate
the temperature display
between the °C & °F.
SET
Scrolls through operation

functions as follows:


Follow Me( ) AP mode
( )  Follow Me(
The selected symbol will
flash on the display area,
press OK button to confirm.
TEMP
Decreases temperature
O O
in 1 C(1 F) increments.
Min. temperature is
O O
16 C(60 F).
FAN SPEED
Selects fan speeds in the
following order:
 

AUTO LOW MED
NOTE: Holding this button
down for 2 seconds will
activate Silence feature.
SWING
Starts and stops the horizontal
louver movement. Hold down
for 2 seconds to initiate vertical
louver auto swing feature(some units).
&
)
HIGH
Model:
RG10B(D)
6
section of this manual.
MODE
Scrolls through operation modes

as follows: AUTO  COOL
 
DRY  HEAT  FAN
NOTE: HEAT mode is not
supported by the cooling only
appliance.
SLEEP
Saves energy during sleeping
hours.
OK
Used to confirm the selected
functions
TIMER
Set timer to turn unit on or off
SHORTCUT
Used to save the current settings
or resume saved settings.
CLEAN
Used to start/stop the Self
Clean or Active Clean function.
(Model dependent, please refer
to the USER'S OPERATION &
INSTALLATION MANUAL).
LED
Turns indoor unit's LED display
and air conditioner buzzer on and
off (model dependent), which
create a comfortable and quiet
environment.
TURBO
Enables unit to reach preset
temperature in shortest
possible time


