DIRECT MEASUREMENT
• Fit the ACS to top hat rail. To do so, hook the device on the upper edge of the top-
hat rail and press down until it clicks into place.

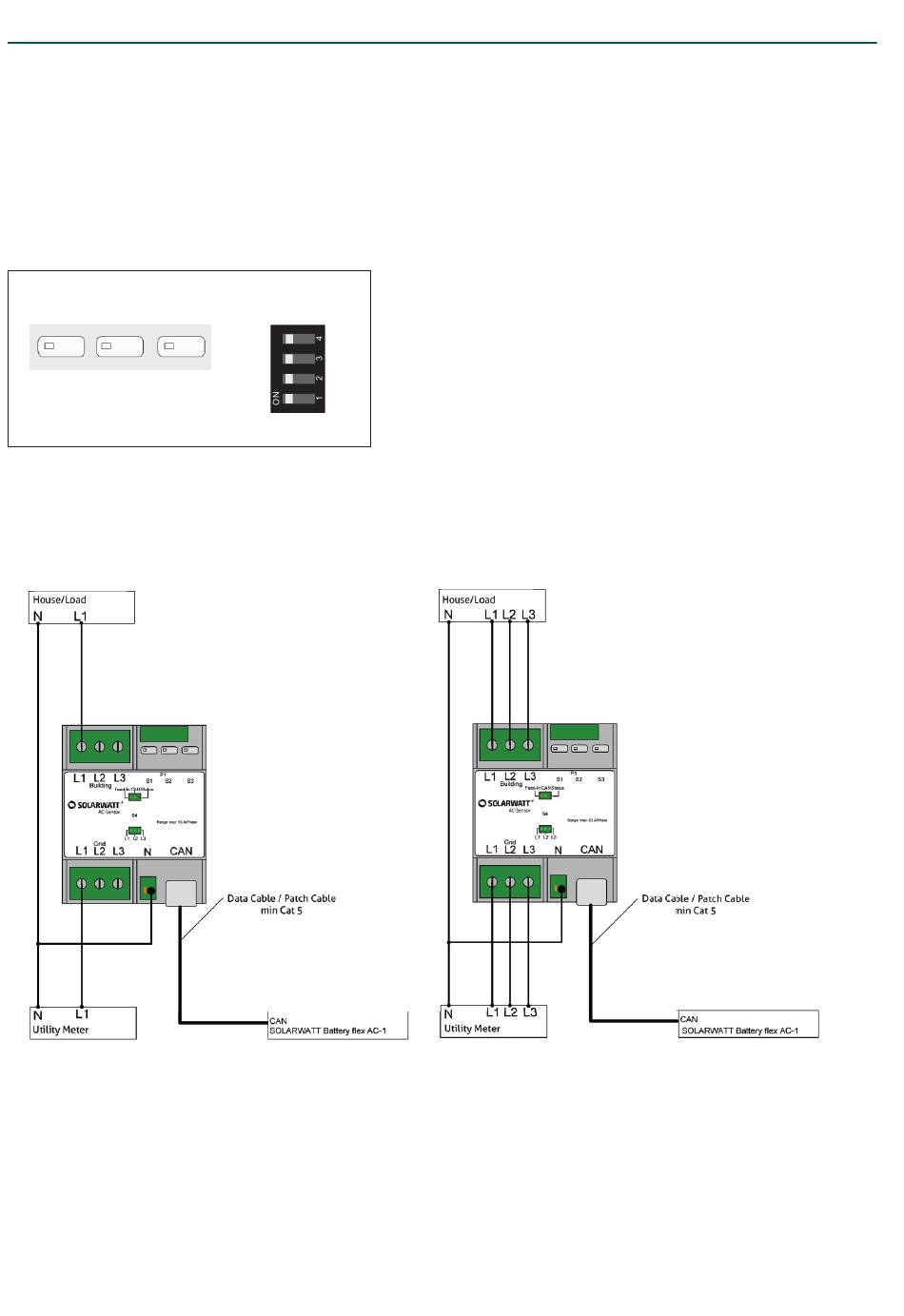

• Connect ACS as per the diagrams below
• Check the setting on the DIP switches S1, S2, S3 and the DIP switch S4 (see diagram
of AC Sensor layout for position of switches).
S1 S2 S3
• Close/secure the housing cover with one of the enclosed cable ties
ACS only (1-phase, 3-phase)
Änderungen vorbehalten | © 2021 Solarwatt GmbH
S4
