SOLARWATT AC-Sensor Flex Installationsanleitung Seite 26

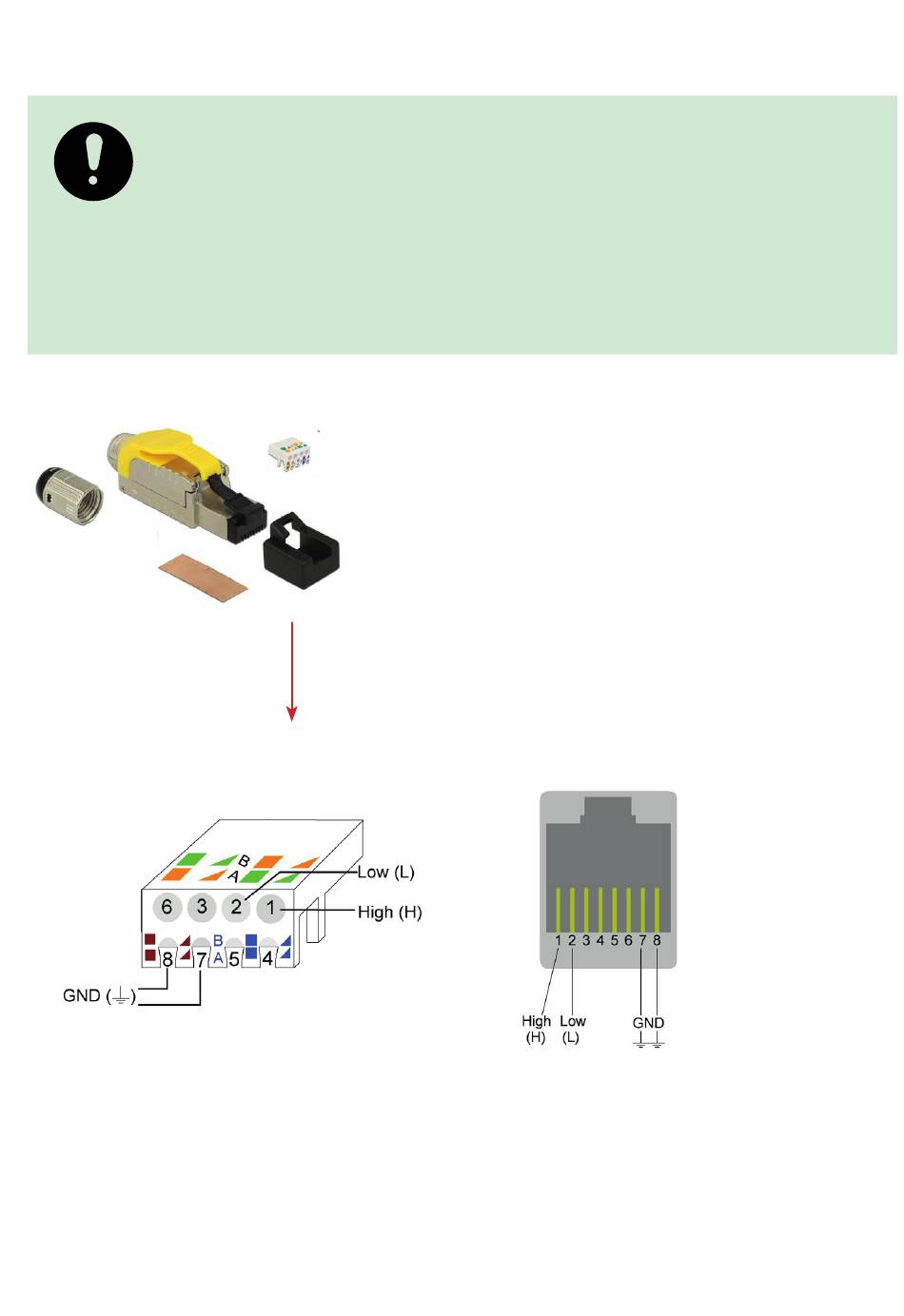

• Establish CAN connection between the Battery flex base and ACS using a patch cable
NOTE
If you use a network installation cable instead of a patch cable, the corres-
ponding attachable RJ45 plugs are available from the Solarwatt web shop
(DELOCK 86287 RJ45 plugs).
Make sure that the wires H (wire 1), L (wire 2) and GROUND (wire 7 or 8) are
connected to the Battery flex base and to the AC Sensor using the same assign-
ment configuration (see diagram below)
PIN assignment for CAN (RJ45) on the
Battery flex base
26
PIN assignment for CAN (RJ45) on the AC
Sensor Flex
Änderungen vorbehalten | © 2021 Solarwatt GmbH
