Display Elements - SOLARWATT AC-Sensor Flex Installationsanleitung

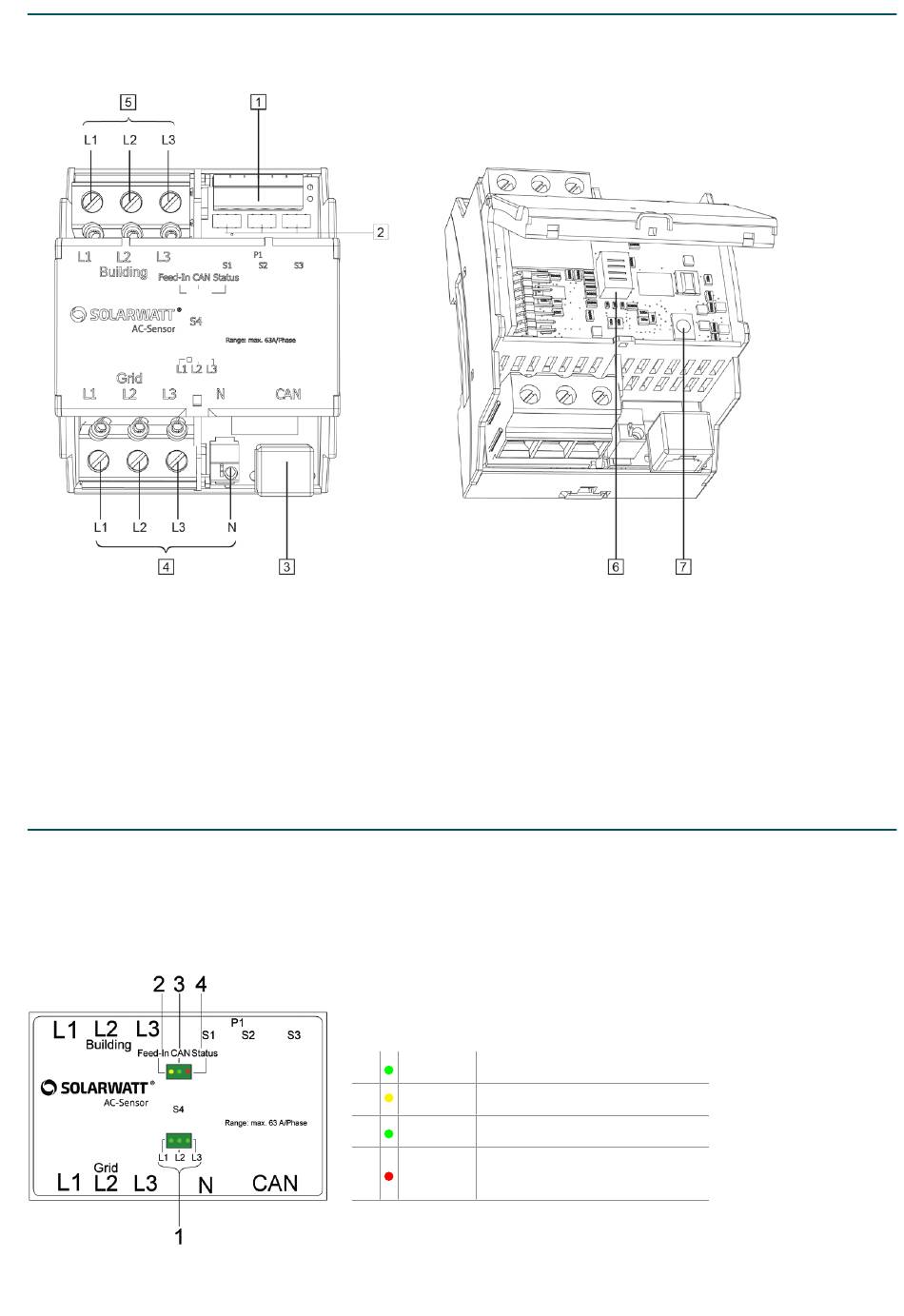

LAYOUT
1 Connection terminal for external CT-clamps
2 DIP-switches S1, S2, S3 for activation of CT-clamp
measurement
3 CAN connection MyReserve (RJ45)
4 Grid-side connections
5 House-side connections

DISPLAY ELEMENTS

The figure shows the LED indicators in the correct operating state. For error states, please
refer to chapter „Faults".
24
6 DIP-switch S4
Current ratio settings
7 Reset switch
1 L1, L2, L3 phase conductors carry power
2 Feed-In PV feed-in > 100 W
3 CAN CAN communication operating
flashing 1x/s = operational
4 Status
flashing 5x/s = error/update
