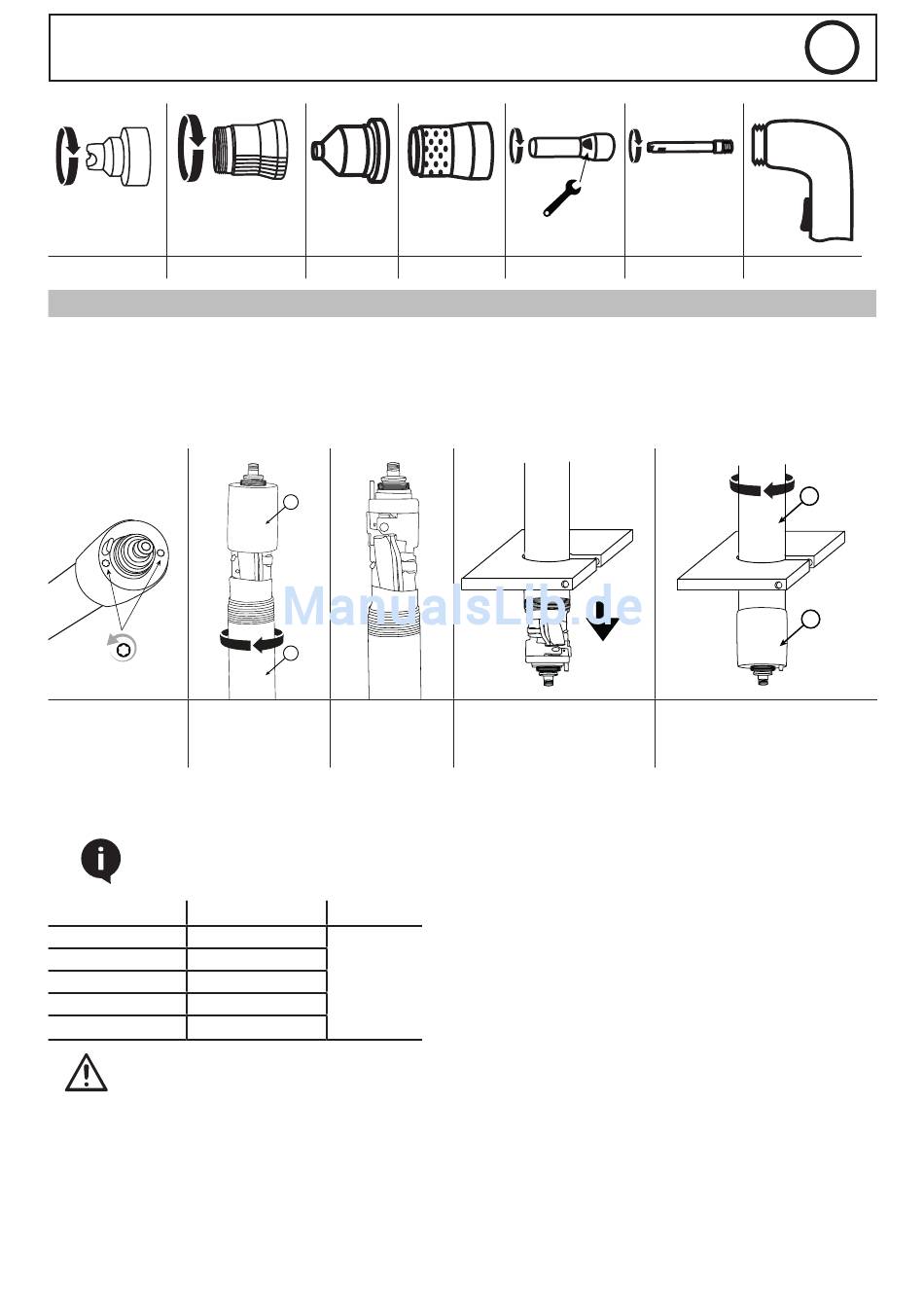

AUTOMATIC TORCH SETUP (REF. 040014)
1 - ASSEMBLY
Depending on the type of cutting table, it may be necessary to disassemble the torch to install it properly. The torch's body diameter is a standard
35 mm.
If you need to disassemble (and then assemble) the Z Auto torch, please follow these steps :
Firmly hold the
Unscrew the 2 Torx protective shroud (1)
®
screws. and unscrew the torch
2 - CHOICE OF CONSUMABLES
The Z auto torch uses «unprotected» consumables, a small distance distance (2 to 3 mm, between the torch and the metal).
5 tailpipe calibers available
To optimise the cut,it is important to choose the right tailpipe caliber according to the machine's settings.
Power Tailpipe
25-45A 40A
45-65A 60A
65-85A 80A
85-115A 110A
115-125A 130A
Gouging is impossible with an automatic torch.
PLASMA CUTTER 85A / 125A
Tailpipe
1
2
The shroud is
disconnected from
the body
body (2).
Ref. Process
039759
039766
040038
Auto cut
039667
039650
N°7
Diffuser Electrode
Insert the torch's body in the
cutting table's conduct
A current that is too low leads to low cutting performance.
A current that is too high for the tailpipe leads to early dete-
rioration.
EN
Tube Torch
2
2
1
1
Firmly hold the protective shroud (1)
and screw the torch body (2).. Do
not do the opposite, this would coil
the cables. Screw back both screws.
