4. Hardware Installation

Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1181HMS. Please refer your computer's reference manual whenever in doubt.
1. Install the EX-1181HMS to the wall or to a DIN-Rail if required.
2. Connect the USB 3.2 Gen 1 cable with the USB 3.2 Gen 1 Upstream B-Port at the EX-1181HMS.
3. Connect the optional power supply to the Terminal Block at the Hub.
4. Now connect the other end from the USB 3.2 Gen 1 cable (A-Plug) to the USB A-Port at your
PC.
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved

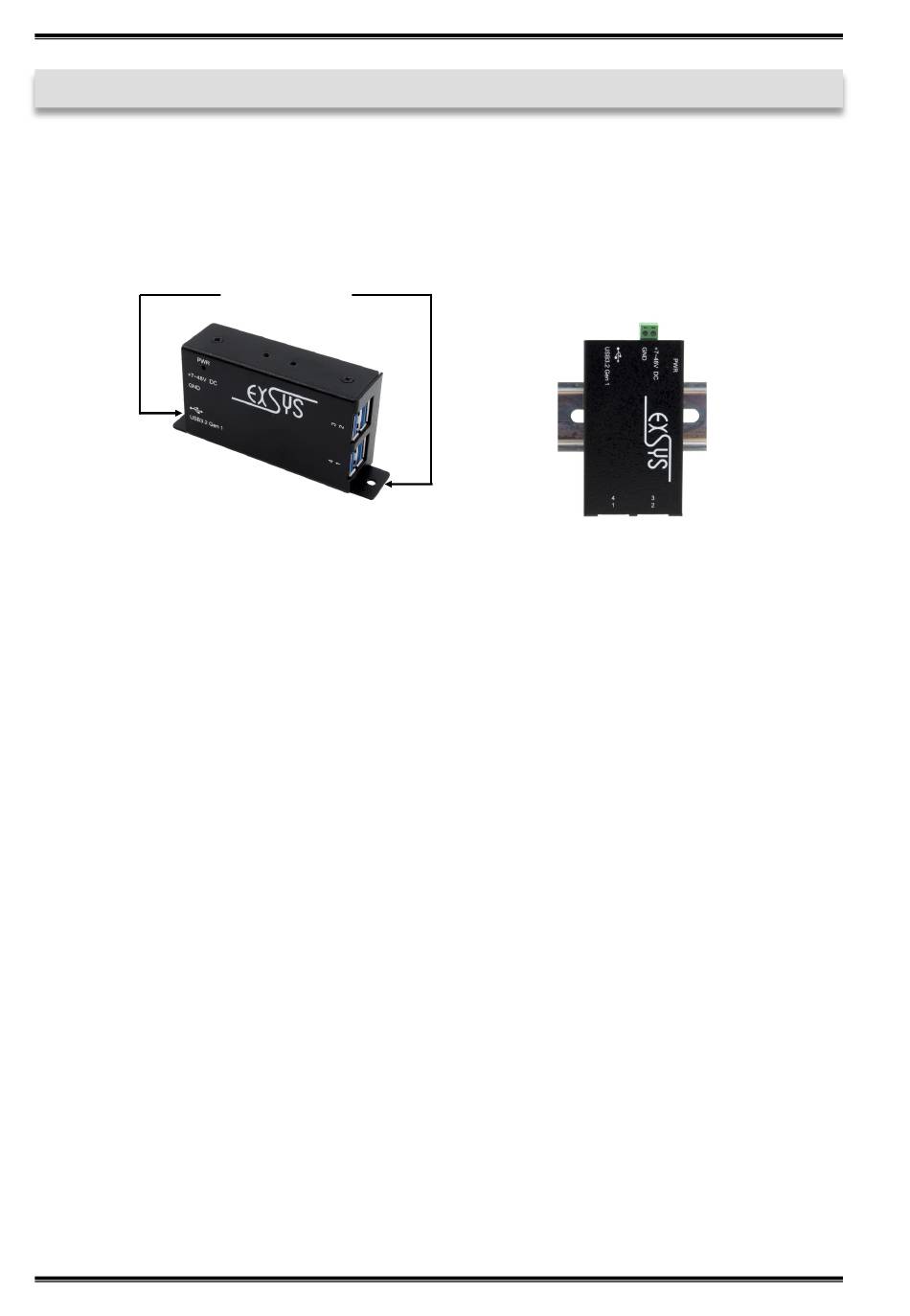

Holes for
