EX-1181HMS

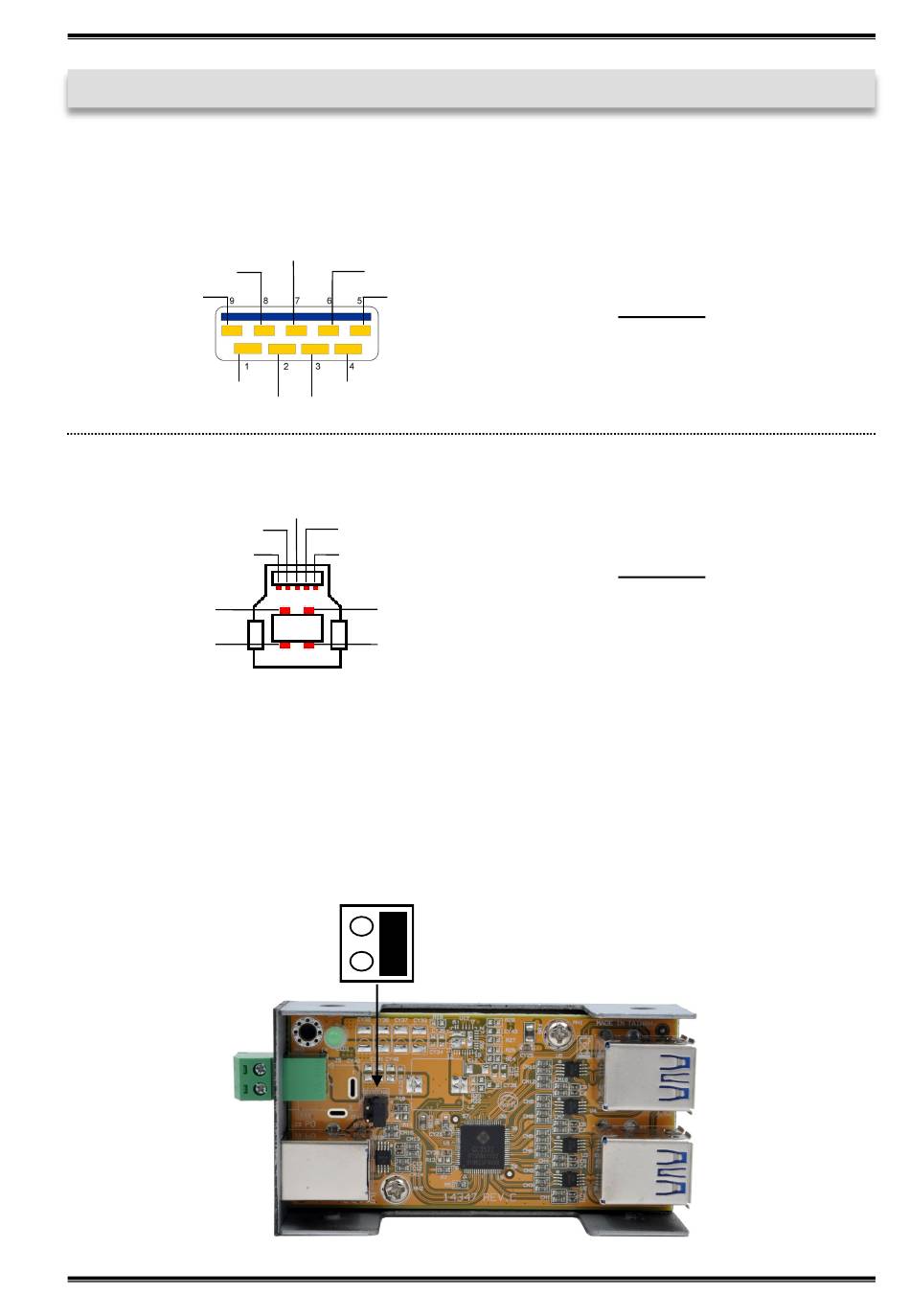

3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.2 Gen 1 A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
USB 3.2 Gen 1 B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

3.3 Jumper Settings

The EX-1181HMS will be delivered with the setting USB-Bus-Power.
to cut the power at the data line.
Then you must set the jumper JP1 from ENA (Enable) to DIS (Disable). See the following picture.
© Copyright 2022 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
For this you open the case with the four screws on both sides.
DIS ENA
JP1
Attention!
Never plug in with force
or in wrong direction.
Attention!
Never plug in with force
or in wrong direction.
11
English
But you have the possibility
