Montage
|
Mounting instructions
2.
Stromanschluss für LED Panel vorbereiten
Préparation du câble d'alimentation
Nehmen sie das LED Panel ab und ziehen Sie das Stromkabel durch das Vordach.
Detach the LED panel and pull the power cable through the canopy.
Débranchez le panneau DEL et tirez le câble d'alimentation à travers la verrière.
Verwijder het LED-paneel en trek de voedingskabel door de kap.
3.
Befestigung von oben

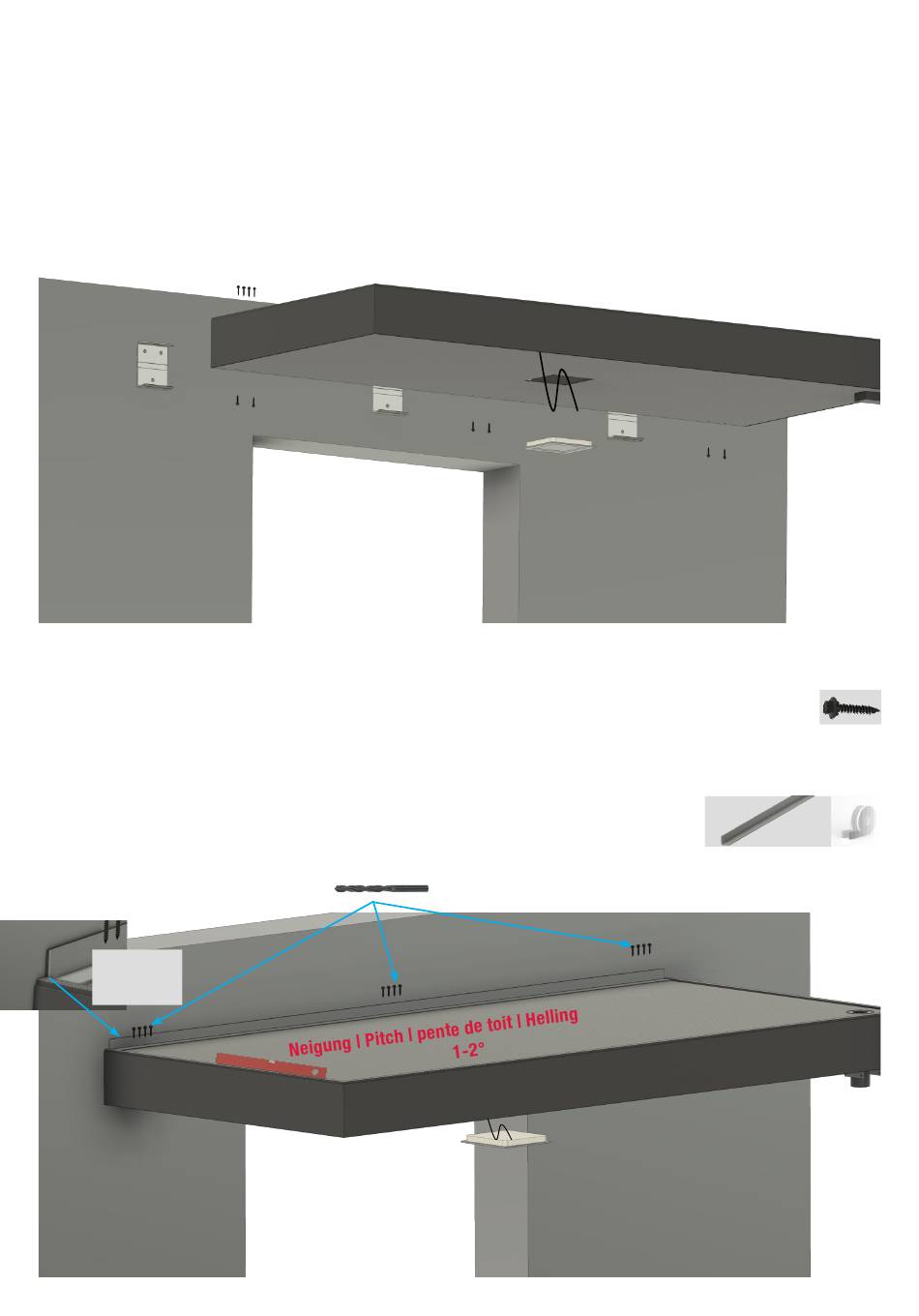

Bringen Sie das Fugendichtband an den Winkel an. Bohren Sie die Löcher mit einem Bohrer 3,5 mm vor.
Setzen Sie die Schrauben wie angezeigt.
Attach the joint sealing tape to the angle. Drill the holes with a 3.5mm drill bit.
Insert the screws as shown.
Fixez la sangle combinée à la cornière. Percez les trous avec une mèche de 3,5 mm.
Insérez les vis comme indiqué.
Breng het voegafdichtingsband aan op de hoek. Boor de gaten voor met een 3,5 mm boor.
Plaats de schroeven zoals aangegeven.
bereits vormontiert
bereits vormontiert
already pre-assembled
already pre-assembled
déjà préassemblé
déjà préassemblé
reeds voorgemonteerd
reeds voorgemonteerd
|
Assemblage
|
Preparing the power connection for the LED panel
|
Bereid de stroomaansluiting voor op het LED-paneel
|
Fastening at the top
|
|
Montage - BS Plus 160 / 200
Pièce jointe supérieure
|
Montage van bovenaf
BS 160 | BS 200 1x
BS 160 8x
BS 200 12x
5
