Gutta BS Plus 160 Montageanleitung

Rechteckvordach mit wasserspeier
Vorschau ausblenden Andere Handbücher für BS Plus 160:

Werbung

Montageanleitung
D
Assembly instructions
GB
Instructions de montage
F

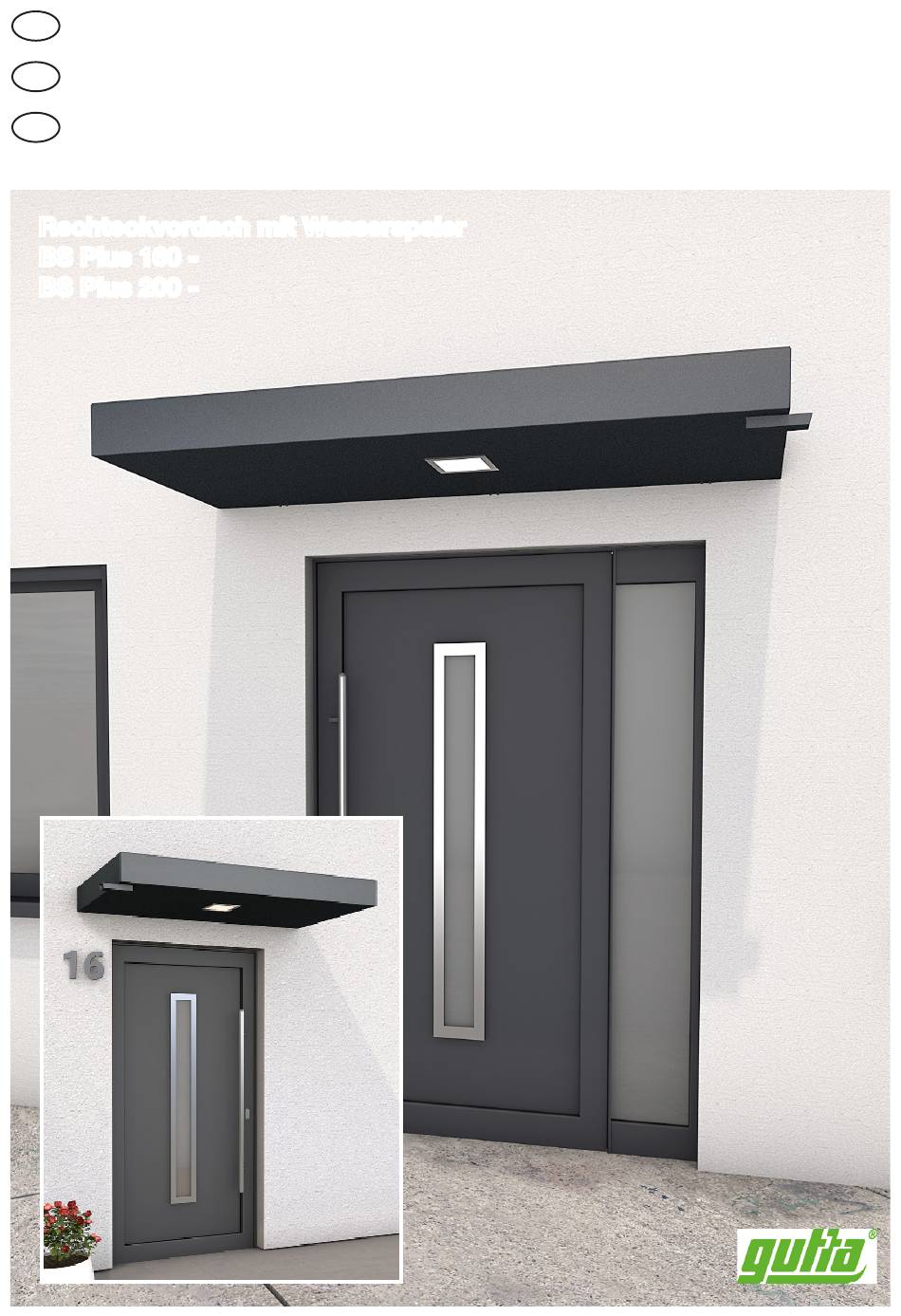

Rechteckvordach mit Wasserspeier
BS Plus 160 - Art.-Nr.: 7500503 / 7500506
BS Plus 200 - Art.-Nr.: 7500509 / 7500512
Nr.: 9219118

Werbung

loading

Inhaltszusammenfassung für Gutta BS Plus 160

  • Seite 1 Montageanleitung Nr.: 9219118 Assembly instructions Instructions de montage Rechteckvordach mit Wasserspeier BS Plus 160 - Art.-Nr.: 7500503 / 7500506 BS Plus 200 - Art.-Nr.: 7500509 / 7500512...
  • Seite 2 Important Recommandations Wichtige Hinweise! Reccommendations! importantes ! • Vor der Montage bitte Montageanleitung • Prior to assembly please study the assem- • Avant le montage, veuillez lire exactement genauestens durchlesen und Produkt auf evtl. bly instructions in detail and check the con- les instructions de montage et vérifier s‘il n‘y Transportschäden bzw.
  • Seite 3 Bezeichnung Stück Designation Pieces Désignation Piéces BS plus 160 BS plus 200 Dübel Ø 12 mm Plugs Ø 12 mm | Cheville Ø 12 mm U-Scheibe Washers | Laveuse Schraube 10 x 80 mm Screw 10 x 80 mm | Vis 10 x 80 mm Metallschraube 4,8 x 35 mm Metal srew 4,8 x 35 mm | Vis à...
  • Seite 4 Anbaumaße | Screw size | Taille de vis BS Plus 160 / 200 BS 160 = 1310 mm / BS 200 = 1710 mm 60 mm BS 200 = 825 mm Bei Verwendung eines Seitenteils den seitlichen Versatz berücksichtigen. When using a side part, consider side offset.
  • Seite 5 Montage | Montage | Instructions BS Plus 160 / 200 Stromanschluss für LED Panel vorbereiten / Preparing the power cable / Préparation du câble d‘alimentation Nehmen sie das LED Panel ab und ziehen Sie das Stromkabel durch das Vordach. Disconnect the LED panel and pull the power cable through the canopy.
  • Seite 6 Montage | Montage | Instructions BS Plus 160 / 200 Befestigung von unten / Fastening from below / Fixation par le bas BS 160 - 4 x BS 200 - 6 x 1. Bohren Sie die Löcher mit einen Bohrer 3,5mm vor. / Pre-drill the holes with a 3.5 mm drill bit / Pré-percer les trous avec une mèche de 3,5 mm...
  • Seite 7 Montage | Montage | Instructions BS Plus 160 / 200 Silikonfuge / silicone joint / joint silicone Bringen Sie eine Silikonfuge zwischen Wand und Vordach an. Place a silicone joint between wall and canopy. Placer un joint en silicone entre le mur et la verrière.
  • Seite 8 Vordächer Terrassendächer Paneele Ebene Platten Bitumenwellplatten Noppenbahn Hobbyplatten Effektplatten Rasengitter Gartenprodukte www.gutta.com Gutta Werke GmbH Bau- und Heimwerkerprodukte Bahnhofstraße 51-57 D-77746 Schutterwald Telefon 0781 6090 Telefax 0781 6093200 info@gutta.com www.scobalit.de Scobalitwerk Wagner GmbH Scobalitwerk Wagner GmbH Scobalitwerk Wagner GmbH Scobalitwerk Wagner GmbH Scobalitwerk Wagner GmbH Zürnkamp 27...

Diese Anleitung auch für:

Bs plus 2007500503750050975005067500512
