5.3 Fixing the central unit

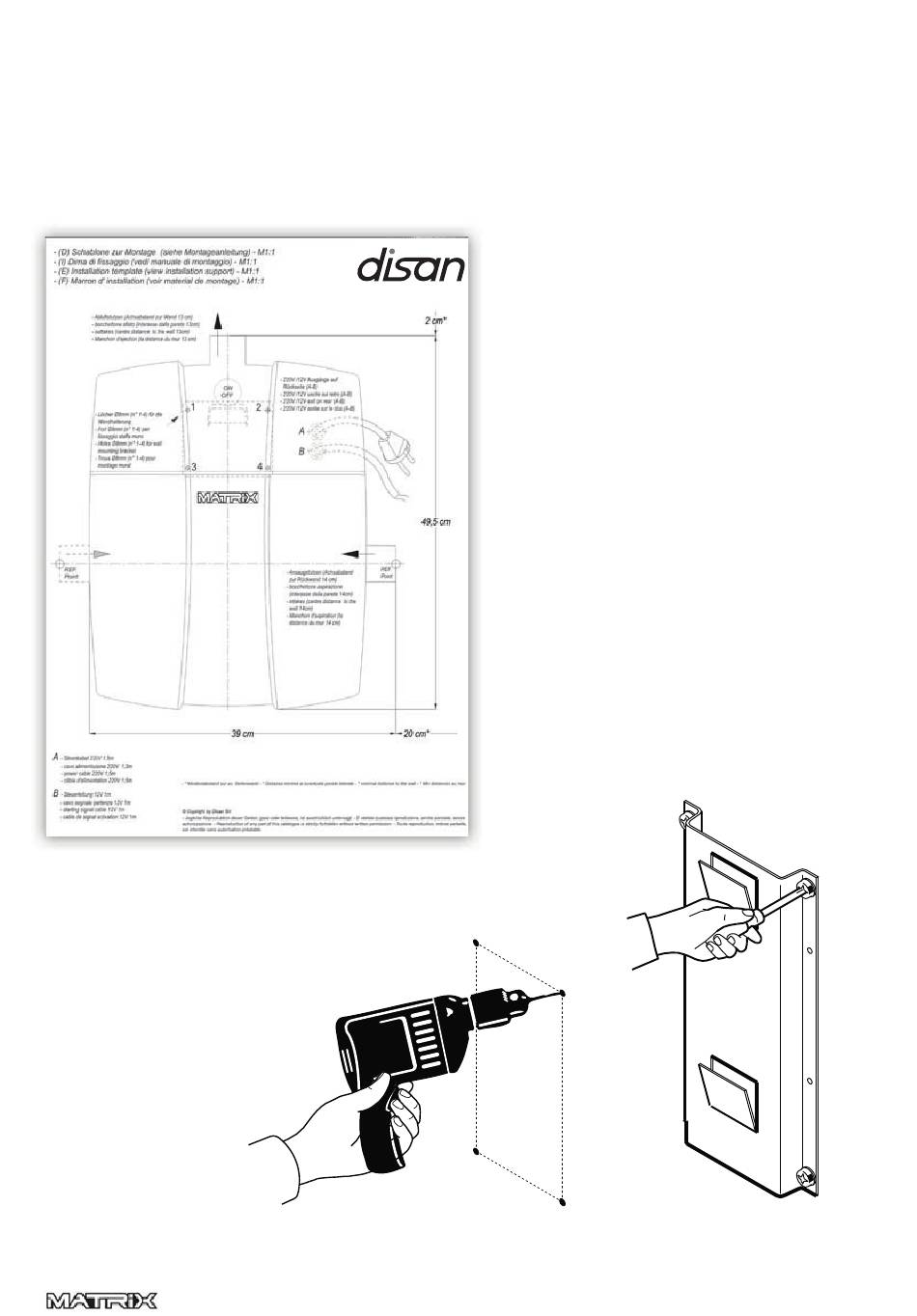

Inside the packaging you will find the special installation template to easy the position and
fixing, as well as the installation wall plate.
2. Mark the drilling point through the template.
3. Arrange the plate on the wall.
4. Hang the central unit on the wall plate.
5. Hang the suction unit the frame.
1. The template should be fixed on the
wall where the central unit should be
installed. For reference the inlet and
outlet should be considered.
