5. Installation
5.1 Place of installation
The installation of central unit is following to the layout of the piping set by an appointed
installer. Considering the construction's features, the protection class IP55 and the moderate
noise level, the Matrix units can be installed even outdoor.
The minimal room for installation chamber is
70 x 60 cm (lxh)
5.2 Inlet reversibility
The Matrix unit is usually delivered with inlet connection assembled on the right side of the
unit. When necessary, it is possible to switch the central unit form right to left, by assembling
the inlet on the left side.

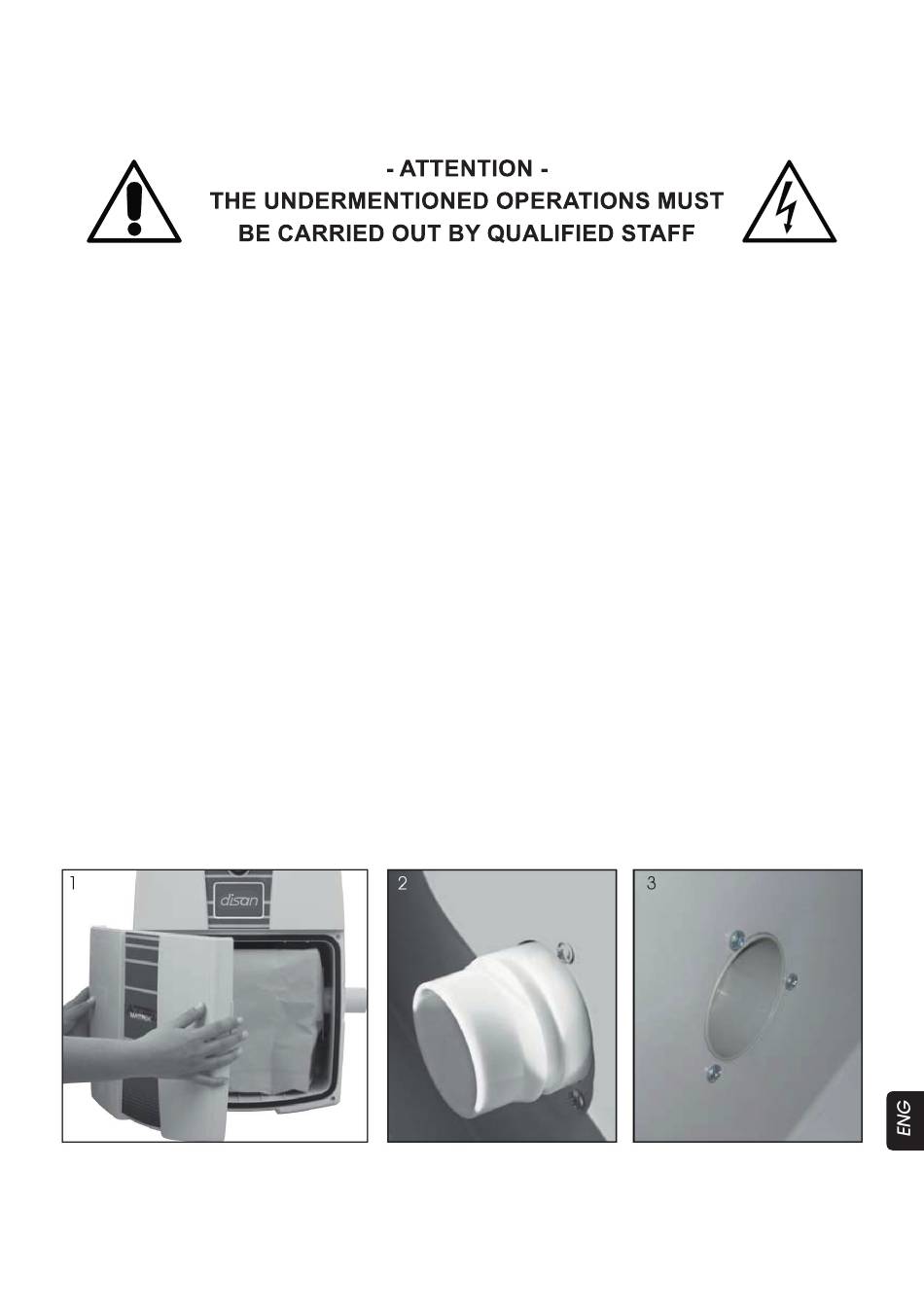

1.
Open the front cover with quick-fix magnets
2.
Loosen the 3 screws from inside and remove the inlet muff
3.
In the opposite side unscrew in the same way the inlet cap
1
4.
Change the inlet muff with the inlet cap
Paying attention to the right positioning of the joints.
2
3
