PEAKnx wantec Monolith C IP Kurzanleitung Seite 22

3 Setting up the VoIP communication

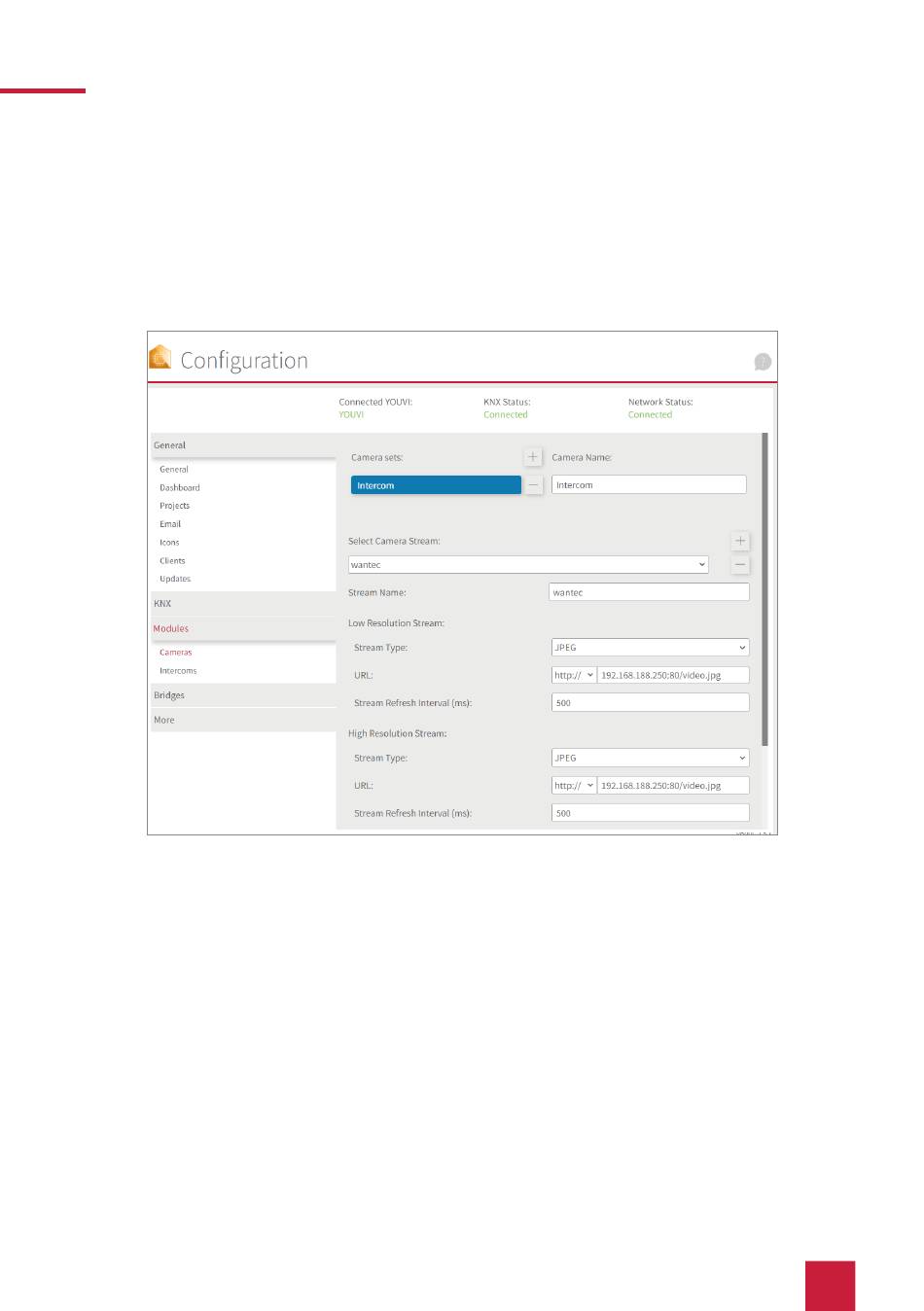

2. Switch to YOUVI Dashboard > Camera Device OR open the configuration page on your PC
in your browser, making sure that the system running the browser is on the same network
as the PEAKnx touch panel. To do this, enter the following URL in your browser:
− http://x.x.x.x:31228
− Where x.x.x.x must be replaced by the local IP address of your PEAKnx touch panel. This
is displayed in the lower part of the YOUVI Dashboard App.
− From the menu on the left, select "Cameras".
3. Use the „+" symbol to add a new camera set.
4. Click the "+"-Symbol next to "Select Camera Stream" to create a new camera stream.
5. For the "Stream Name", enter an appropriate name of your preference.
6. Change the „Stream Type" to „JPEG".
7. Enter the link of the camera stream from your door station under „Low Resolution URL" as
well as under „High Resolution URL".
− This link consists of the IP address of the door station (port= 80) and „/video.jpg", for
example: http://192.168.188.250:80/video.jpg
8. Enter 500 ms for the refresh interval.
9. Click "Save" to register the settings with your PEAKnx touch panel.
10. Within the PEAKnx touch panel, switch back to YOUVI Visu
11. In order to ensure that the visualization is automatically activated when the system is reboo-
