3 Setting up the VoIP communication

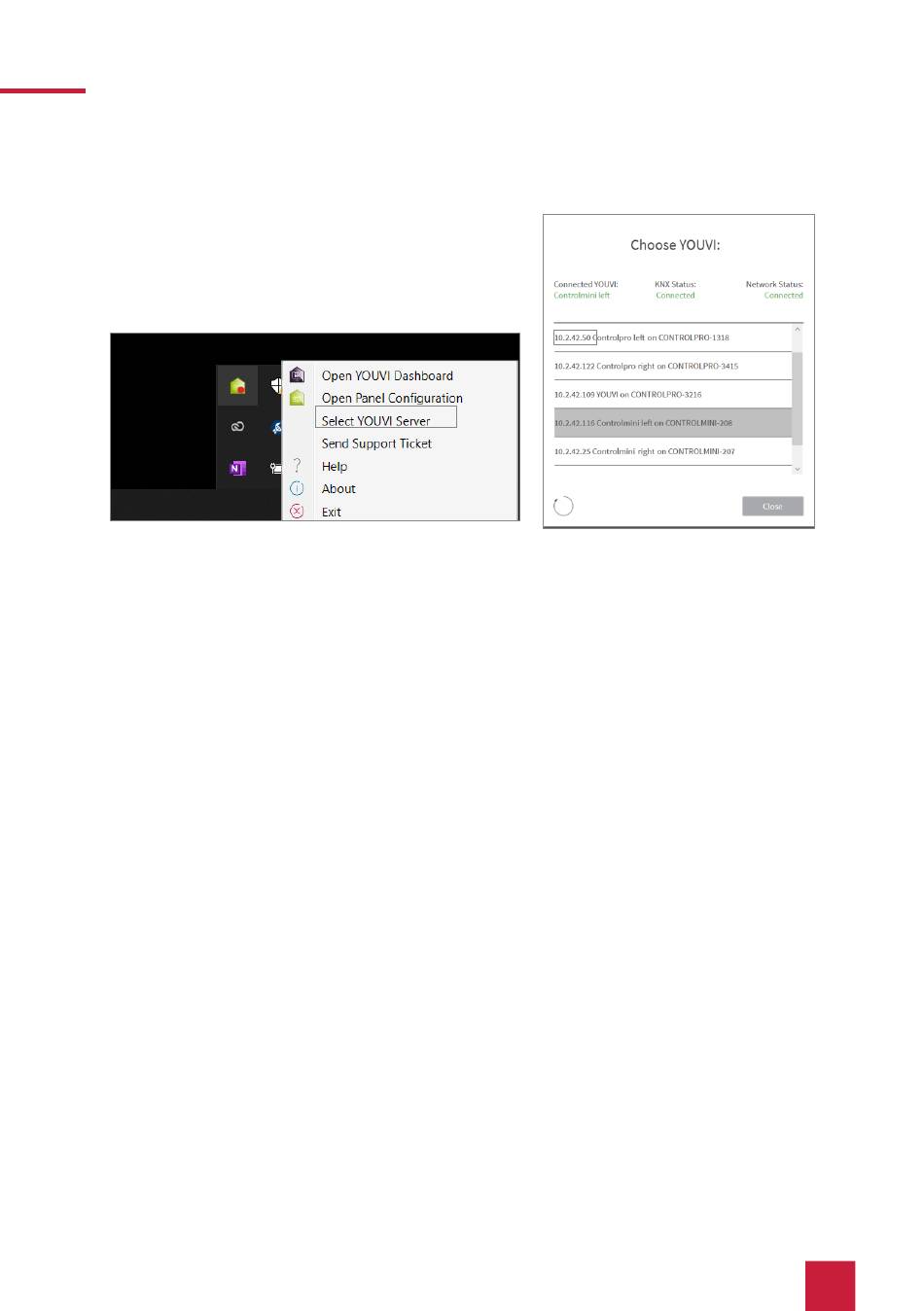

− http://x.x.x.x:31228, Where x.x.x.x must be replaced by the local IP address of your
PEAKnx touch panel. This is shown to you in the server overview:
2. Go to „Install Door intercom".
3. Under More > License, you can view the remaining days of your trial license.
4. For unlimited use, please purchase the module in the PEAKnx Shop.
5. Select the Door intercom icon on the Dashboard page to open the settings.
6. Add a new door station via the „+" symbol.
7. Intercom name: This name appears as a label in the upper left corner of the widget.
8. Username: Enter the name that you have assigned in your Fritzbox (your SIP server) for the
touch panel with YOUVI, e.g. "Controlmini". You can also find your credentials under fritz.
box > Telephony Devices if you edit the created PEAKnx Panel (IP Phone) and go to the tab
"Login data."
9. Password: Enter the password associated with the user name here.
10. SIP Server IP Address: Enter the IP address of your SIP server (fritzbox) here.
11. Camera Stream: Enter the link of the camera stream from your door station here.
− This link consists of the IP address of the door station (port= 80) and „/video.jpg", for
example: http://192.168.188.250:80/video.jpg
12. Stream Type: Select „JPEG".
13. Stream Refresh Interval in ms: Enter „500" ms to get 2 frames per second.
14. Unlock method: Select the mechanism by which your door opener function is connected,
e.g. DTMF.
− DTMF Code: Enter the DTMF opening code, that you have defined under Basic Settings >
Relay on the wantec configuration website.
− Http Request: Enter the http command to open the door.
− Telegram: Specify the group address for opening the door.
− Lock After (for telegram): If a group address is specified, a 1 will be sent to the group
address when the door opener icon is touched and a 0 is sent after the opening interval
