2.Introduction

The CR4S is a simple 4 channel transmitter using the latest 2.4GHz ATN frequency hopping technology
from Absima.The transmi tter is lightweight and compact in design, comfortable and ergonomic. It has a beginne r
mode and is easy for beginner players to use.

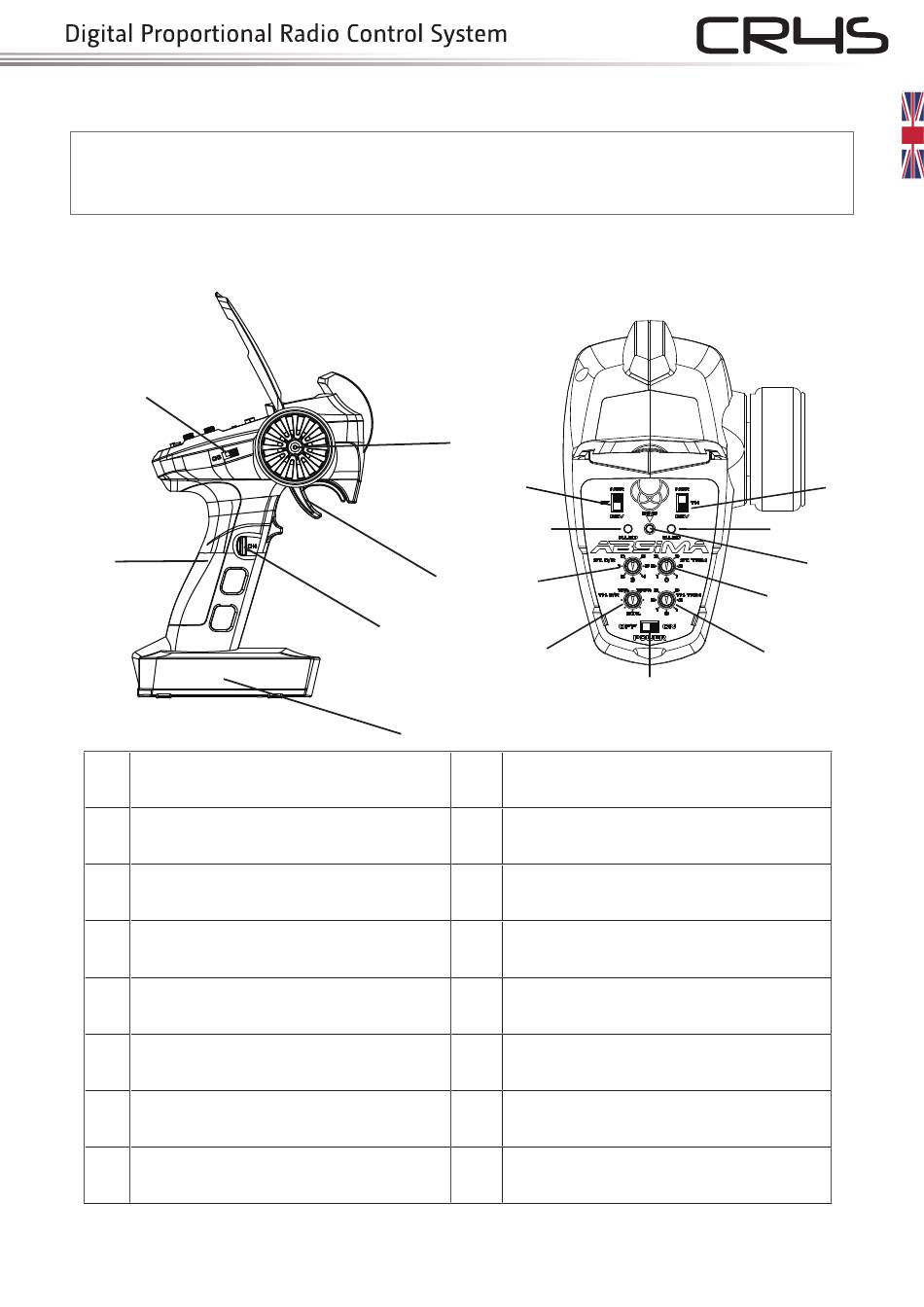

2.1 Transmitter overview

[4]
[5]
Traversing handwheel, 35 degrees on
[1]
each side (Ch1)
Throttle button, 25 degrees in front and
[2]
12.5 degrees at rear (CH2)
Push button switch (Ch4) [Push
[3]
button function is flip type]
[4]
Three-position toggle switch (Ch3)
[5]
Handle
[6]
Battery compartment, 4 x 1.5V LR6 (AA)
[7]
ST. REV
[8]
R. LED
[1]
[7]
[8]
[2]
[9]
[3]
[10]
[6]
[9]
ST. D/R
[10]
TH. D/R
[11]
TH. REV
[12] G. LED
[13]
BIND Button
[14]
ST. TRIM
[15]
TH. TRIM
[16]
Power Switch
[12]
[13]
[14]
[15]
[16]
[11]
