Interfaces

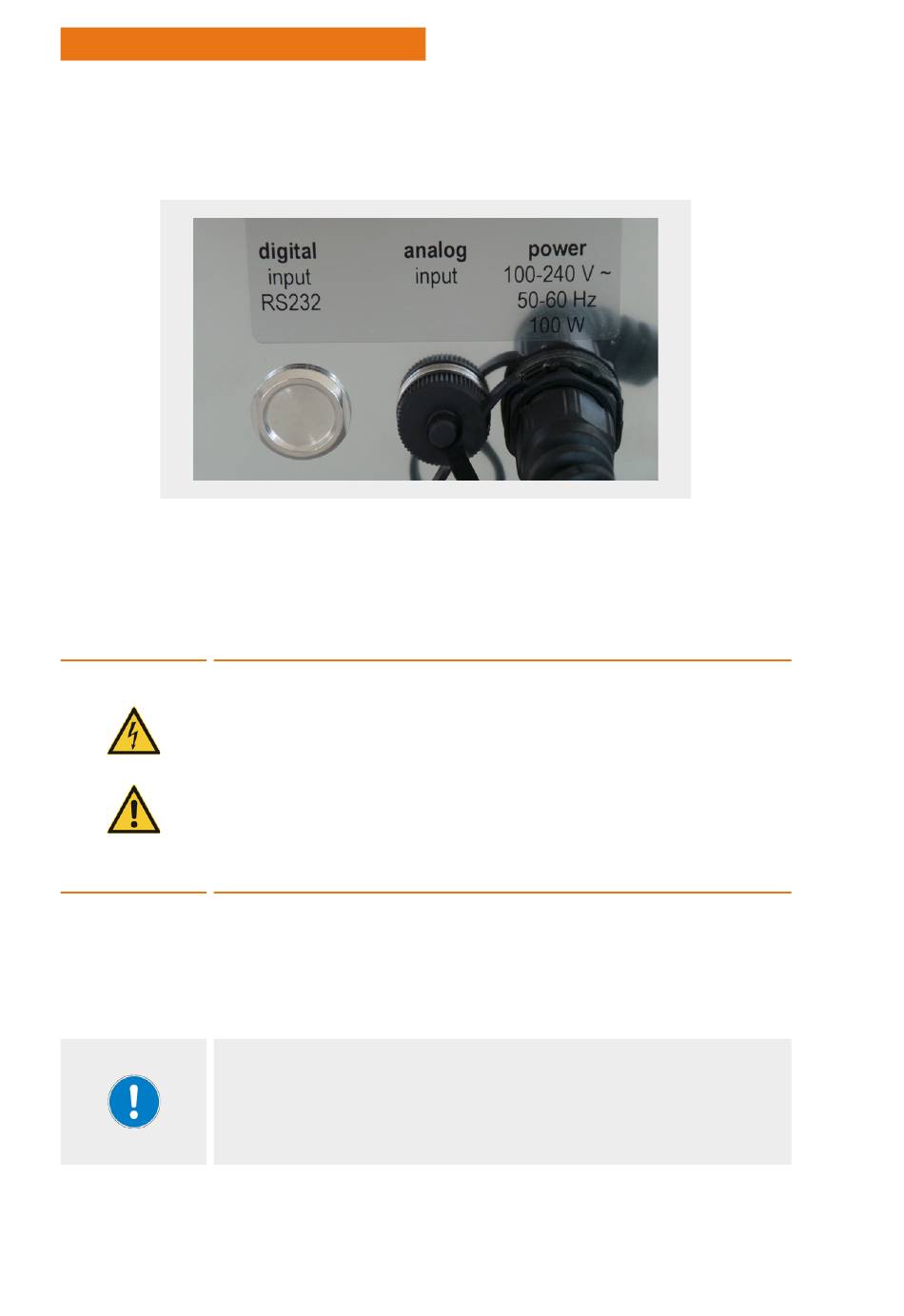

The interfaces are located on the rear of the device:
Devices of type Hei-FLOW Expert and Hei-FLOW Ultimate are equipped with an
analogue interface by which the pump can be controlled.
Devices of type Hei-FLOW Ultimate are additionally equipped with a digital interface by
which the pump can be connected to a PC.
All interfaces are protected against the penetration of liquids by suitable screw caps.
DANGER
Electric shock, material damage, loss of production
The penetration of liquid poses the danger of an electric shock.
In addition, the interfaces and other electronic components inside
the housing can be damaged and cause the pump to fail!
➜
➜
➜

Analogue interface

Only use connectors with degree of protection IP 67 (Binder 6-pin,
99-5121-15-06, Heidolph order No. 14-010-006-81) to ensure
adequate protection against splashing water.
Ensure that the connector is properly connected.
Use only the connectors recommended by the manufacturer.
Make sure that the connection plugs are inserted correctly.
Always protect unused interfaces with the supplied screw cap.
