4. System Settings

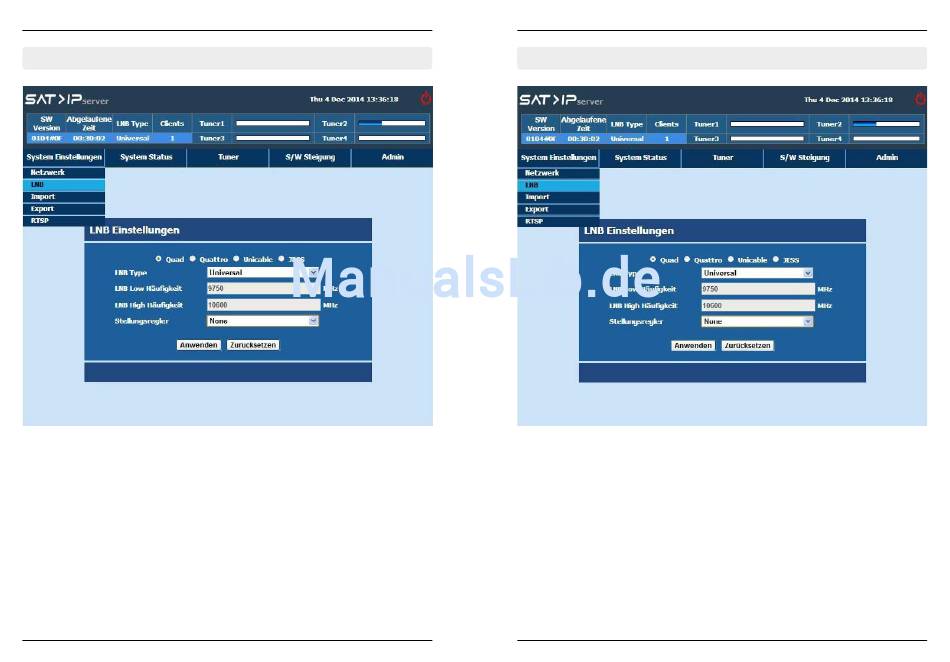

4.2.1 LNB Settings
To configure the below settings from the LNB settings menu.
• LNB Mode - Quad / Quarto / Unicable / Jess
• LNB Type - Universal / C band / Ku band / Extended C band / User
• LNB Low Frequency
• LNB High Frequency
• Positioner - None / DiSEqC / USALS
Configure the settings and click on „Apply" button for save.
16
ENGLISH
4. System Settings

4.2.2 Quad

Satellite reception system consists of a Quad LNB. Connect the 4 outputs of the LNB to
the inputs 1... 4 of the Server box via suitable SAT antenna cables.
Similar to all Tuners.
• Horizontally polarised, high band 11.70-12.75 GHz („horizontal high")
• Horizontally polarised, low band 10.70-11.70 GHz („horizontal low")
• Vertical polarised, high band 11.70-12.75 GHz („vertical high")
• Vertical polarised, low band 10.70-11.70 GHz („vertical low")
