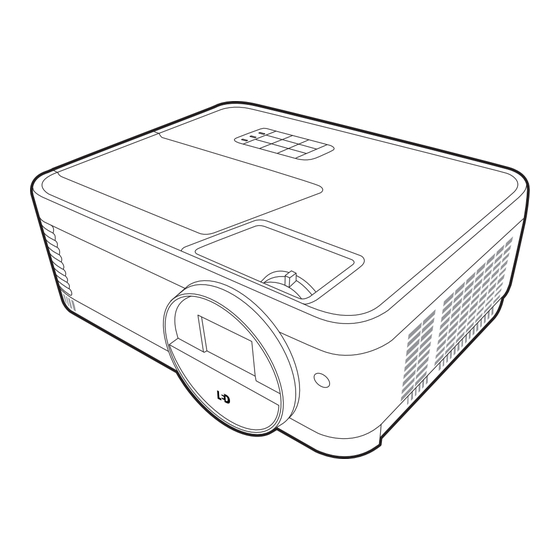

ViewSonic LS500 Serie Schnellstart Handbuch

LS500 Series
DLP Projector
Quick Start Guide Przewodnik Szybki start
快速安装说明 Guia de Início Rápido
快速入門指南 Ghid de pornire rapidă
빠른 시작 가이드 краткое руководство по
クイックスタートガイド
началу работы
Ръководство за бърз старт Vodič za brzi početak
Vodič za brzo pokretanje Príručka so stručným návodom
Úvodní příručka Vodnik za hitri začetek
Aan de slag Guía de inicio rápido
Pika-aloitusopas Snabbstartsguide
Guide de démarrage rapide Hızlı Başlangıç Kılavuzu
Schnellstarthandbuch короткий посібник користувача
Οδηγός γρήγορης εκκίνησης Panduan Mulai Cepat
Első lépések ‫دﻟﯾل اﻟﺑدء اﻟﺳرﯾﻊ‬
Guida introduttiva
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
ViewSonic Projector
4
1
DLP Projector
Quick Start Guide Przewodnik Szybki start
快速安装说明 Guia de Início Rápido
快速入門指南 Ghid de pornire rapidă
빠른 시작 가이드 краткое руководство по
クイックスタートガイド началу работы
Ръководство за бърз старт Vodič za brzi početak
Vodič za brzo pokretanje Príručka so stručným návodom
Úvodní příručka Vodnik za hitri začetek
Aan de slag Guía de inicio rápido
Pika-aloitusopas Snabbstartsguide
Guide de démarrage rapide Hızlı Başlangıç Kılavuzu
Schnellstarthandbuch короткий посібник користувача
Οδηγός γρήγορης εκκίνησης Panduan Mulai Cepat
Első lépések ‫دﻟﯾل اﻟﺑدء اﻟﺳرﯾﻊ‬
Guida introduttiva
http://vsweb.us
Download Link
ViewSonic Projector http://vsweb.us/q/dn.php
Moun�ng Screw: M4 x 8 (Max. L = 8 mm)
5
Unit: mm
293 mm
2
1 2
3
4 5
100-240 Vac
50/60 Hz
•16:10 image on a 16:10 screen
6
221 mm
•16:10 image on a 4:3 screen
115
mm
(e) = Screen
(f) = Center of Lens
3
AUDIO IN
RS-232
HDMI USB A
5V/2A OUT
(SERVICE)
AUDIO OUT
AUDIO IN
HDMI
AUDIO OUT
MENU
BLANK
EXIT
ENTER
COLO
SOURCE
MODE
(a) Screen Size (b) Projec�on distance
min.
inch mm inch mm
30 762 39.37 1000
60 1524 78.74 2000
70 1778 91.86 2333
2032 104.99 2667
80
90 2286 118.11 3000
100 2540 131.23 3333
110 2794 144.36 3667
120 3048 157.48 4000
130 3302 170.60 4333
140 3556 183.73 4667
150 3810 196.85 5000
200 5080 262.47 6667
250 6350 328.08 8333
300 7620 393.70 10000
(a) Screen Size (b) Projec�on distance
min.
inch mm inch mm
30 762 37.14 943
60 1524 74.28 1887
70 1778 86.66 2201
80 2032 99.04 2516
90 2286 111.42 2830
100 2540 123.81 3145
110 2794 136.19 3459
120 3048 148.57 3774
130 3302 160.95 4088
3556 173.33 4403
140
150 3810 185.71 4717
200 5080 247.61 6289
250 6350 309.51 7862
300 7620 371.42 9434
It is recommended that if you intend to permanently install the projector, please physically test
the projec�on size and distance using the actual projector in situ before you permanently
install it.
USB A RS-232
5V/2A OUT
(SERVICE)
16:10 Image on a 16:10 Screen
(d) Ver�cal offset
(c) Image
height
max. min. max.
inch mm inch mm inch mm inch mm
0.00 0
43.31 1100 15.90 404 0.00 0
808 0.00 0 0.00 0
86.61 2200 31.80
101.05 2567 37.10 942 0.00 0 0.00 0
115.49 2933 42.40 1077 0.00 0 0.00 0
129.92 3300 47.70 1212 0.00 0 0.00 0
144.36 3667 53.00 1346 0.00 0 0.00 0
158.79 4033 58.30 1481 0.00 0 0.00 0
173.23 4400 63.60 1615 0.00 0 0.00 0
187.66 4767 68.90 1750 0.00 0 0.00 0
202.10 5133 74.20 1885 0.00 0 0.00 0
216.54 5500 79.50 2019 0.00 0 0.00 0
288.71 7333 106.00 2692 0.00 0 0.00 0
0.00
360.89 9167 132.50 3365 0.00 0 0
0.00 0 0.00 0
433.07 11000 159.00 4039
16:10 Image on a 4:3 Screen
(d) Ver�cal offset
(c) Image
height
max. min. max.
inch mm inch mm inch mm inch mm
40.86 1038 15.00 381 0.00 0 0.00 0
81.71 2075 30.00 762 0.00 0 0.00 0
95.33 2421 35.00 889 0.00 0 0.00 0
108.95 2767 40.00 1016 0.00 0 0.00 0
122.57 3113 45.00 1143 0.00 0 0.00 0
136.19 3459 50.00 1270 0.00 0 0.00 0
0.00 0
149.80 3805 55.00 1397 0.00 0
1524 0.00 0 0.00 0
163.42 4151 60.00
177.04 4497 65.00 1651 0.00 0 0.00 0
190.66 4843 70.00 1778 0.00 0 0.00 0
204.28 5189 75.00 1905 0.00 0 0.00 0
272.37 6918 100.00 2540 0.00 0 0.00 0
340.47 8648 125.00 3175 0.00 0 0.00 0
408.56 10377 150.00 3810 0.00 0 0.00 0
