21441 Adapter Sleeve »Ring Lock«
- a patented expanding mandrel system provides a tight and firm fit for the speaker
- load up to 50 kg
- attachable to the speaker stand with a tube -ø 35 mm
- technical information: expanding mandrel system ø 35-37 mm;
- height mandrel/total: 100/275 mm, weight: 0.7 kg
Thank you very much for selecting this product. These instructions provide the information on all the important
assembly and handling steps required for assembly. We recommend that you store a copy of these instructions.
SAFETY NOTICES
- Do not exceed the maximum load of 50 kg
- OBSERVE: the adapter sleeve may not carry a load higher than the maximum load of the stand.
- This can possibly be considerably below 50 kg. Please familiarize yourself prior to the installation.
- Utilize suitable stand (rod -ø 35 mm) and ensure a secure and stable position:
- level surface, protect against collision; extend legs to a maximum position among others
- Check the ring lock and clamping screw are tightened.
- Assembly with two persons is recommended. Diligent and careful handling is required.
- Ensure functioning speaker material, in particular the flange adapter must be the correct size and quality.

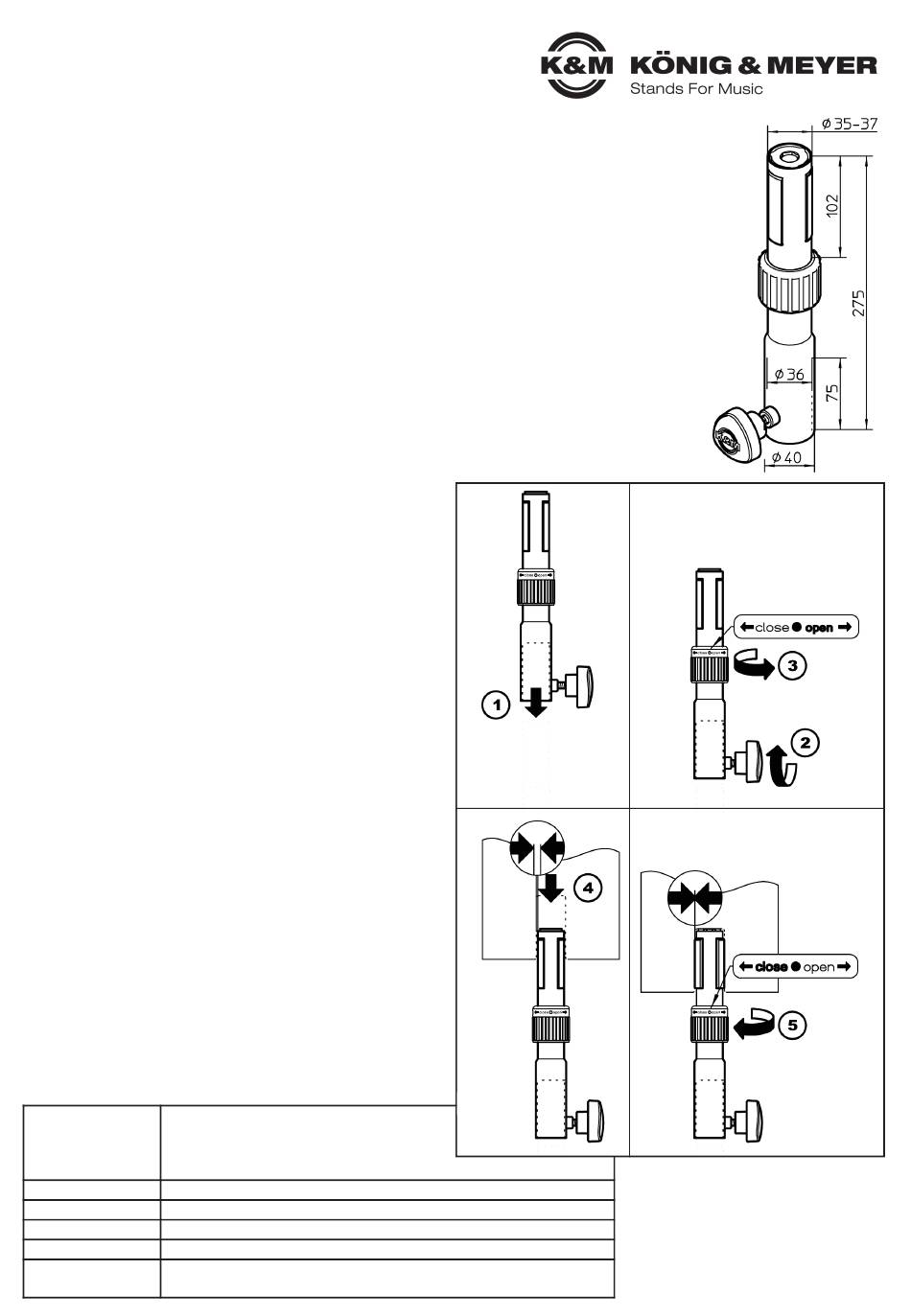

ASSEMBLY INSTRUCTIONS
Place the adapter sleeve and speaker on the stand
Place the adapter sleeve and the speaker on the stand
(1) Place the sleeve of the adapter sleeve over the tube of
(1) the speaker stand, ensuring a tight fit.
(2) Tighten the clamping screw firmly.
(3) Turn the ring lock to the right (direction OPEN) to adjust the
(3) smallest diameter of the expanding mandrel system.
(4) Place the speaker on the expanding mandrel system
(5) Now turn the lock ring left (direction CLOSE) until the splints
(5) ensure a tight fit for the speaker.
For disassembly follow the instructions starting with the last step
working backwards.
USER INFORMATION / FUNCTIONS
Change the direction of the speaker
Loosen the clamping screw (2), adjust the adapter sleeve until.
INSPECTION, MAINTENANCE, CLEANING
- Care and maintenance work is to be performed when the system
- is not under strain.
- Check the functioning of the ring lock regularly.
- For cleaning purposes it is best to utilize a slightly damp cloth
- and a non-abrasive cleaning solvent .
ERROR IDENTIFICATION (E) and CORRECTION (C)
E: Adapter sleeve does not fit on the stand:
C: Check if the stand tube has the required: ø 35 mm.
E: Speaker teeters on the expanding mandrel system:
C: Re-tighten ring lock (direction CLOSE) until speaker is stable.
C: Speaker mounting adapter may not exceed ø 37 mm.
E: Speaker is difficult to adjust:
C: Lift the speaker up a bit during the adjustment.
C: Possible loosen the clamping screw (2) a little more.
C: Alternative: Open the ring lock (3) and turn the speaker.
TECHNICAL INFORMATION / SPECIFICATIONS
screws - steel, galvanized
ring lock- aluminum
Material
mandrel elements, handles - PA
rod sleeve – steel, powder coated, color black
Load max. 50 kg (in case of corresponding suitability of the speaker stand)
Dimensions H: 275 mm, expanding mandrel system: ø 35-37 x 102 mm
Package H x W x B: 295 x 55 x 85 mm
Weight 0.7 kg
Accessories Adapter sleeve 21326: for speaker mounting adapter
(optional) with 38 mm internal diameter (= US-Variant)
