ASSEMBLY
WARNING!
There are several areas during the assembly process that special
attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If
the assembly instructions are not followed correctly, the equipment could
have parts that are not tightened and will seem loose and may cause
irritating noises. To prevent damage to the equipment, the assembly
instructions must be reviewed and corrective actions should be taken.

SERIAL NUMBER LOCATION

Before proceeding, find your treadmill's serial number located on a barcode
sticker and enter it in the space provided below.
SERIAL NUMBER
MODEL NAME
A30 A50 MATRIX ASCENT TRAINER
F F
* Use the information above when calling for service.
52
MXR20_AG_A30_A50_r1_1_B.indd 52-53 MXR20_AG_A30_A50_r1_1_B.indd 52-53

UNPACKING

IMPORTANT NOTES
Unpack the equipment where you During each assembly step, ensure that ALL nuts
will be using it. Place the carton on a and bolts are in place and partially threaded.
level flat surface. It is recommended
Several parts have been pre-lubricated to aid in assembly
that you leave the frame in the
and usage. Please do not wipe this off. If you have difficulty,
Styrofoam base until instructed. Never
a light application of lithium grease is recommended.
open box when it is on its side.
TOOLS INCLUDED: PARTS INCLUDED:
F 6 mm Allen Wrench F 1 Ascent Trainer Frame
F 8 mm Allen Wrench F 1 Top Rail Bracket
F 10 mm Allen Wrench F 2 Hand Rail Covers
F 13/17 mm Flat Wrench F 1 Pedal Arm Cover Set
F Phillips Screwdriver F 1 Upper Assembly
F 2 Incline Frame Boots
F 1 Top Cap Front Cover
F 1 Top Cap Rear Cover
F 2 Upper/lower Dual Action Arms
F 2 Link Arm Cover Sets
F 2 Handlebar Caps
F 1 Power Cord
F 1 Hardware Kit
Console sold separately

NEED HELP?

If you have questions or if there are any missing parts, contact Customer Tech
Support. Contact information is located on the information card.

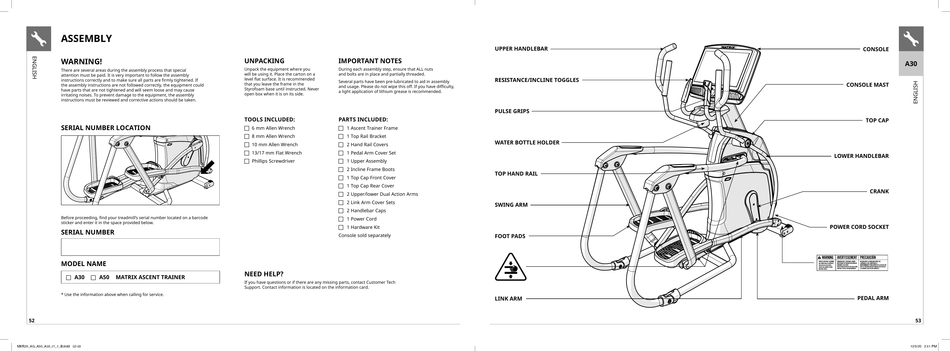

UPPER HANDLEBAR
RESISTANCE/INCLINE TOGGLES
PULSE GRIPS
WATER BOTTLE HOLDER
TOP HAND RAIL
SWING ARM
FOOT PADS
LINK ARM
CONSOLE
A30
CONSOLE MAST
TOP CAP
LOWER HANDLEBAR
CRANK
POWER CORD SOCKET
PEDAL ARM
53
