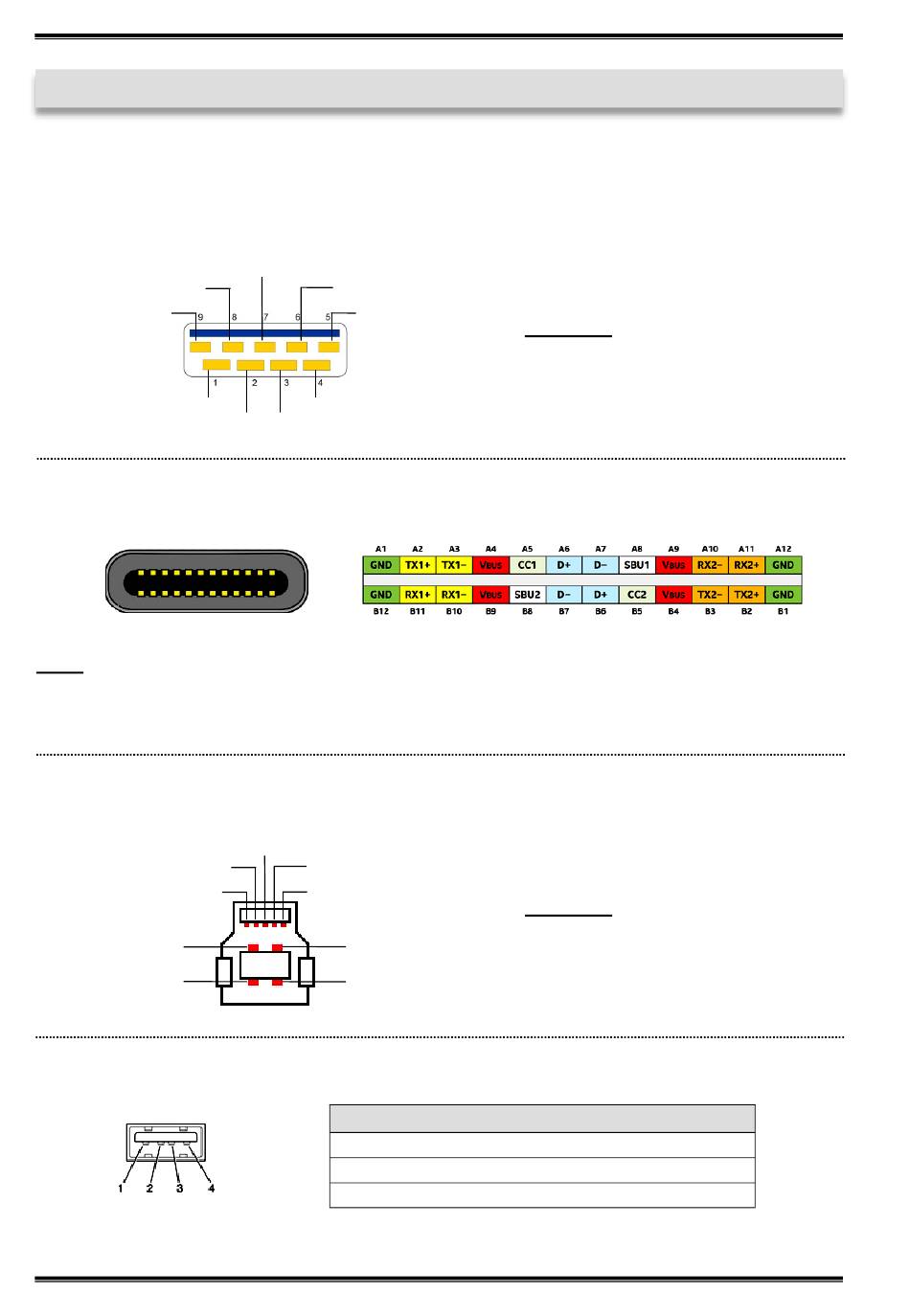

3. Layout & Connectors
3.2 Connectors
USB 3.2 Gen 1 A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
USB 3.2 Gen 1 C-Port:
Note!
By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both
sides.
USB 3.2 Gen 1 B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+
USB 2.0 A-Port:
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
USB 2.0 A-Port
Pin
1
2
Attention!
Never plug in with force
or in wrong direction.
Attention!
Never plug in with force
or in wrong direction.
Signal Pin
VCC 3
DATA- 4
10
EX-1182VIS-2
Signal
DATA+
GND
