Dear customer,
To ensure that the shelves meet the demands placed on them and also retain their function in future, it is
essential that you follow the assembly instructions and instructions for use.
.
1. Assemble the shelving unit in accordance with the erection
and assembly instructions (H - A /... or H - X/...) for the
"ORION PLUS" push-together system.

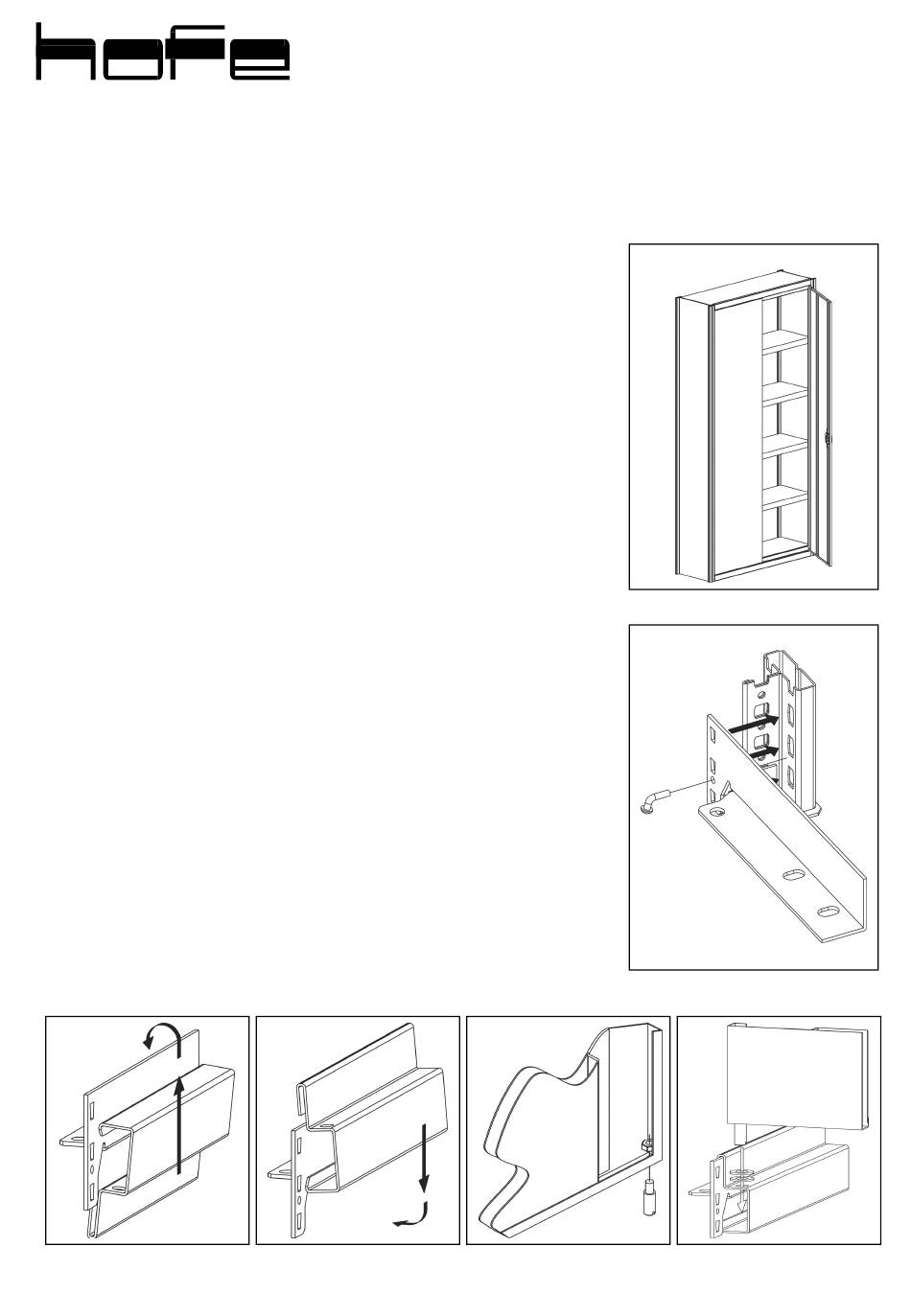

Fig. 1 shows the shelving unit with a door, and sheet metal
side walls or rear wall which can be ordered as an optional
extra.
Caution: Suspend reinforcing crosspieces in the topmost
and lowest possible positions in the front support profiles and
secure with locking pins. (Fig. 2).
2. Adjust the shelving unit with a spirit level both vertically and
horizontally and place in an upright position.
If the shelving unit is not correctly aligned, the doors will not
function correctly!
3. Fit the upper and lower door panels into the reinforcing
crosspiece (Fig. 3 and Fig. 4).
4. Screw the pegs into the right door leaf (with lock) at the top
and the bottom, and also into the left door leaf (with rebate) -
see Fig. 5.
5. Place the lower peg of the left-hand door leaf into the lower
door panel (place two spacers between the door leaf and the
lower door panel beforehand) (Fig. 6).
6. Remove the locking pin from the left side of the upper
crosspiece.
Position the upper peg of the left door leaf on the left in the
upper door panel by raising the crosspiece with the door
panel.
Finally press the door panel down and set the locking pin in
again.
7. Treat the other door leaf in precisely the same way.
fig. 3
All manuals and user guides at all-guides.com
Assembly instructions for the door for the "ORION PLUS" push
together system
fig. 4
fig.1
fig.2
fig.5 fig. 6
