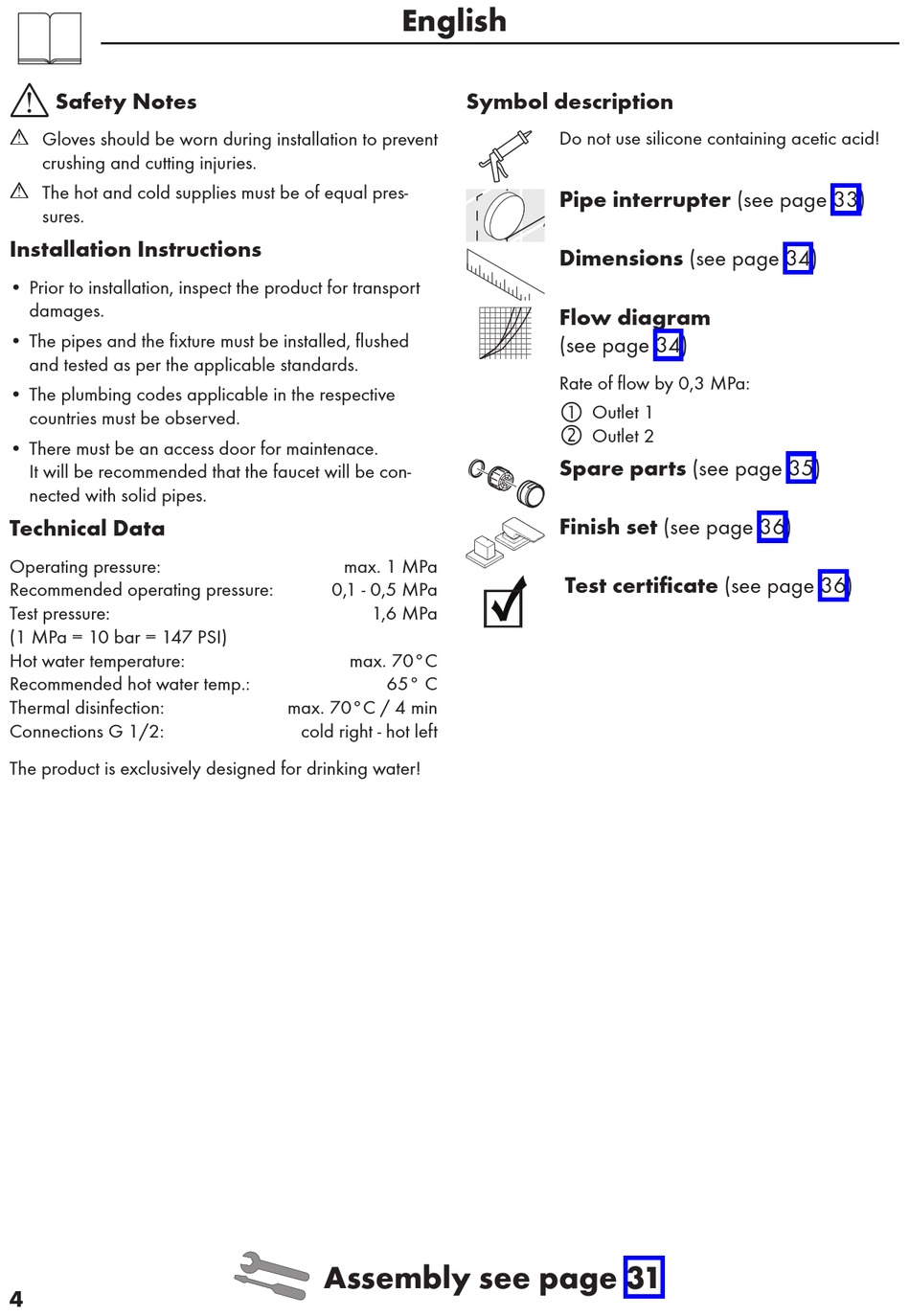

Safety Notes

Gloves should be worn during installation to prevent
crushing and cutting injuries.
The hot and cold supplies must be of equal pres-
sures.

Installation Instructions

• Prior to installation, inspect the product for transport
damages.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
• There must be an access door for maintenace.
It will be recommended that the faucet will be con-
nected with solid pipes.
Technical Data
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Thermal disinfection:
Connections G 1/2:
The product is exclusively designed for drinking water!
4
English
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
max. 70°C
65° C
max. 70°C / 4 min
cold right - hot left
Assembly see page 31

Symbol description

Do not use silicone containing acetic acid!
Pipe interrupter (see page 33)
Dimensions (see page 34)

Flow diagram

(see page 34)
Rate of flow by 0,3 MPa:

Outlet 1

Outlet 2
Spare parts (see page 35)
Finish set (see page 36)
Test certificate (see page 36)
