Assembly - Fakir VC 40 S Bedienungsanleitung

WARNING!
Prior to assembly, make sure that the mains plug
is unplugged. If the mains plug is plugged in,
the appliance could accidentally be switched on,
resulting in injuries.
NOTICE!
Left-handed thread! Screw on the nut counter-clock-
wise. Note the flat surface on the motor axle.

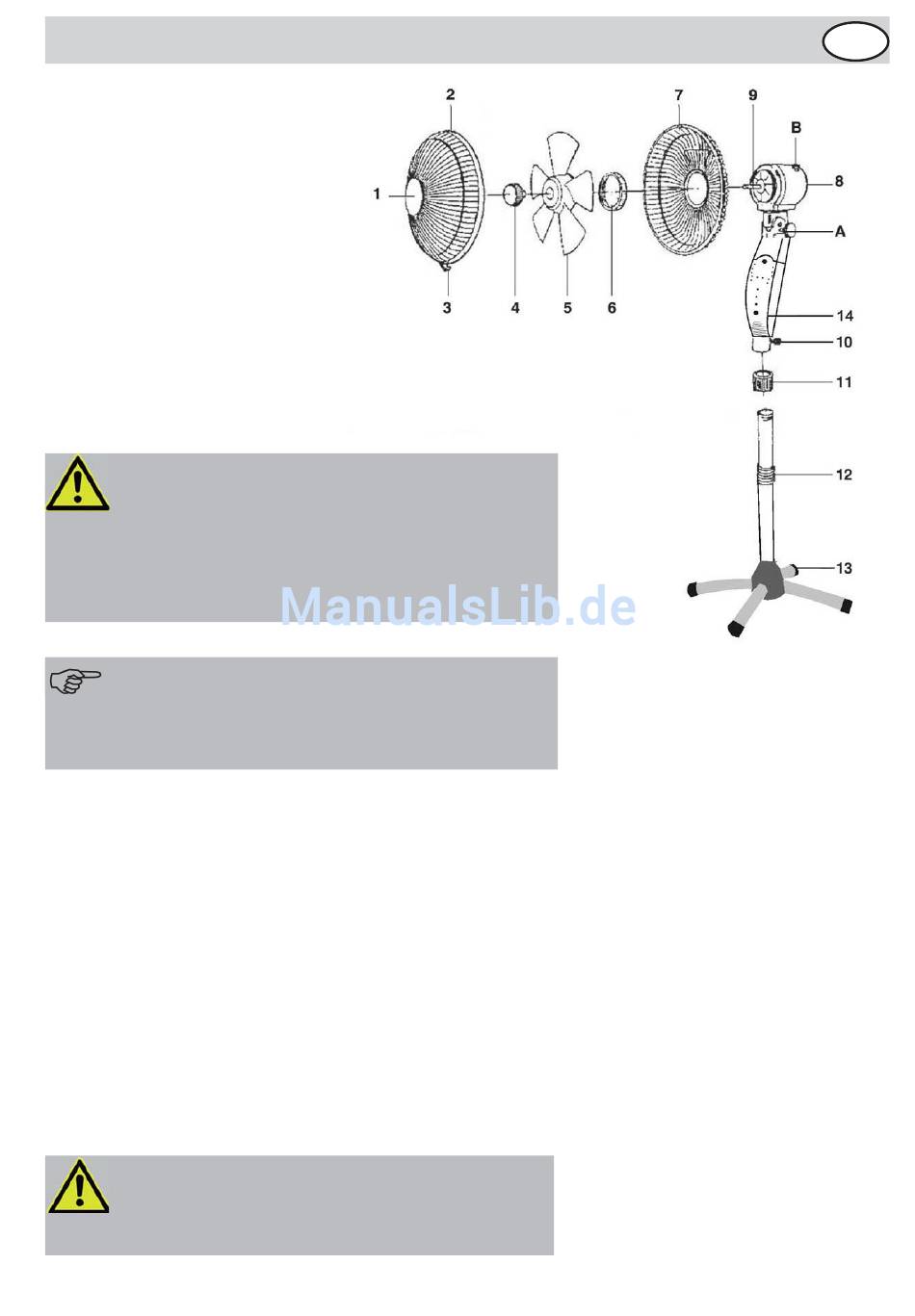

Assemble in the following order:
If not already pre-mounted, remove the cap nut [11] from the telescopic tube [12] and
push the cover [15] over the telescopic tube. Pull out the telescopic tube and then put
on the cap nut [11] again. Use the screws included to fasten the 4 base feet [13] to the
tube distributor [13] of the telescopic tube [12] and push the cover [15] over the tube.
Place the back protective grille [7] exactly onto the motor head [8] (insert the two pins
on the motor head into the two holes in the protective grille) and screw tight using the
included cap nuts [6].
Place the fan blades [5] all the way onto the motor axle and secure with the included
cap nut [4].
ATTENTION!
Never push in on the protective grille.
