Assembly - Fakir prestige VC 360 Bedienungsanleitung

en
WARNING!
Never use a defective appliance.
WARNING!
Prior to assembly, make sure that the mains
plug is unplugged. If the mains plug is
plugged in, the appliance could accidentally
be switched on, resulting in injuries.

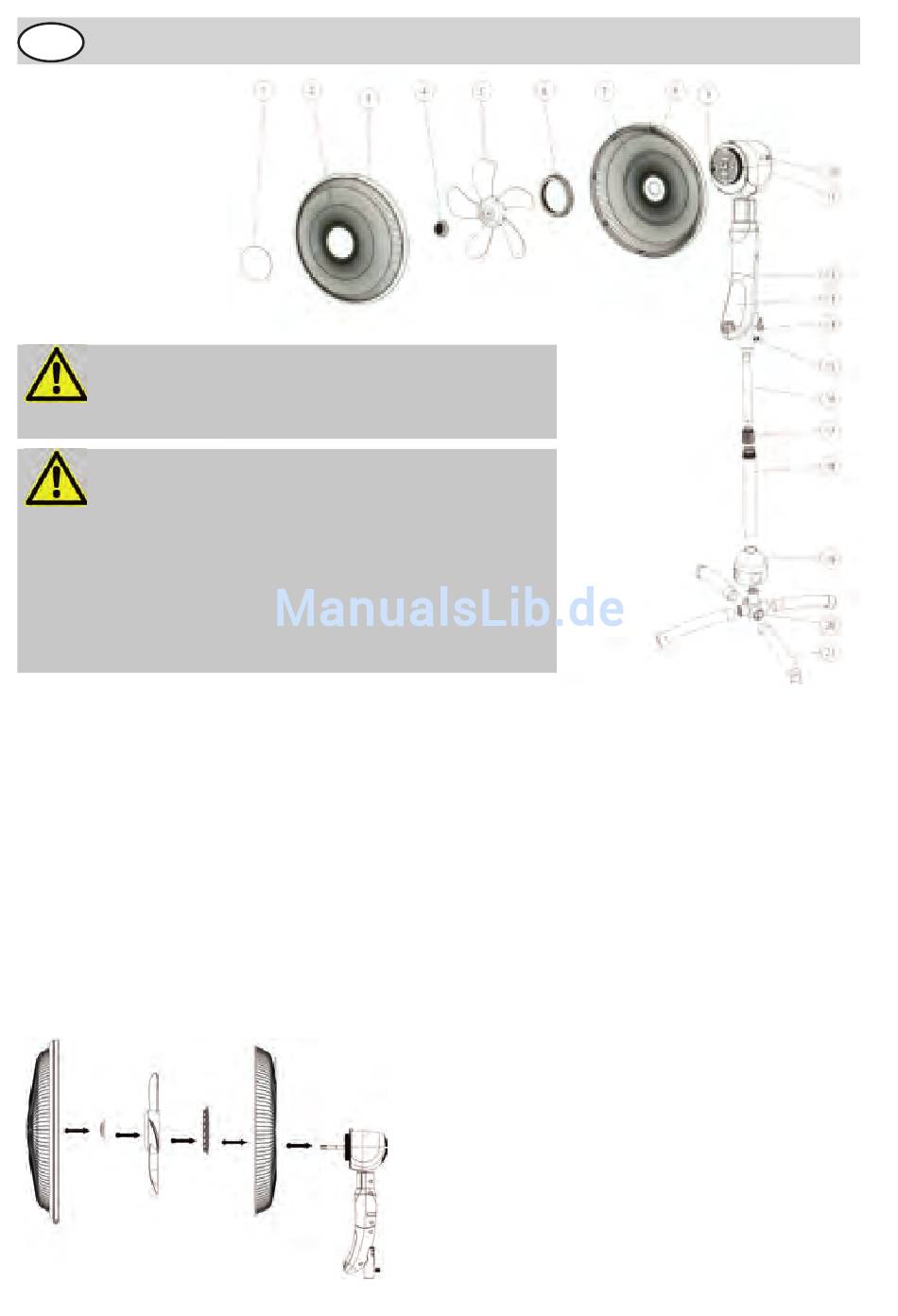

Assemble in the following order:
Insert the 4 base feet [21] through the 4 holes in the cover [19] onto the tube distributor
of the pre-mounted telescopic tube [18] and secure with the enclosed screws.
Place the cooling fan [12] onto the telescopic tube and secure with the knurled screw [15].
Place the back protective grille [7] exactly onto the motor head [11] (insert the two pins
on the motor head into the two holes in the protective grille) and screw tight using the
included cap nuts [6]. Place the fan blades [5] all the way onto the motor axle [9] and
secure with the included cap nut [4].
First remove any plastic protection on the axle.
8

Assembly

Notice: Left-handed thread! Screw on the
nut counter-clockwise. Observe truncation
on the motor axle [9].
