INSTALLATION
UP PUMPS ARE VERY EASILY CONFIGURED AND EASY TO INSTALL

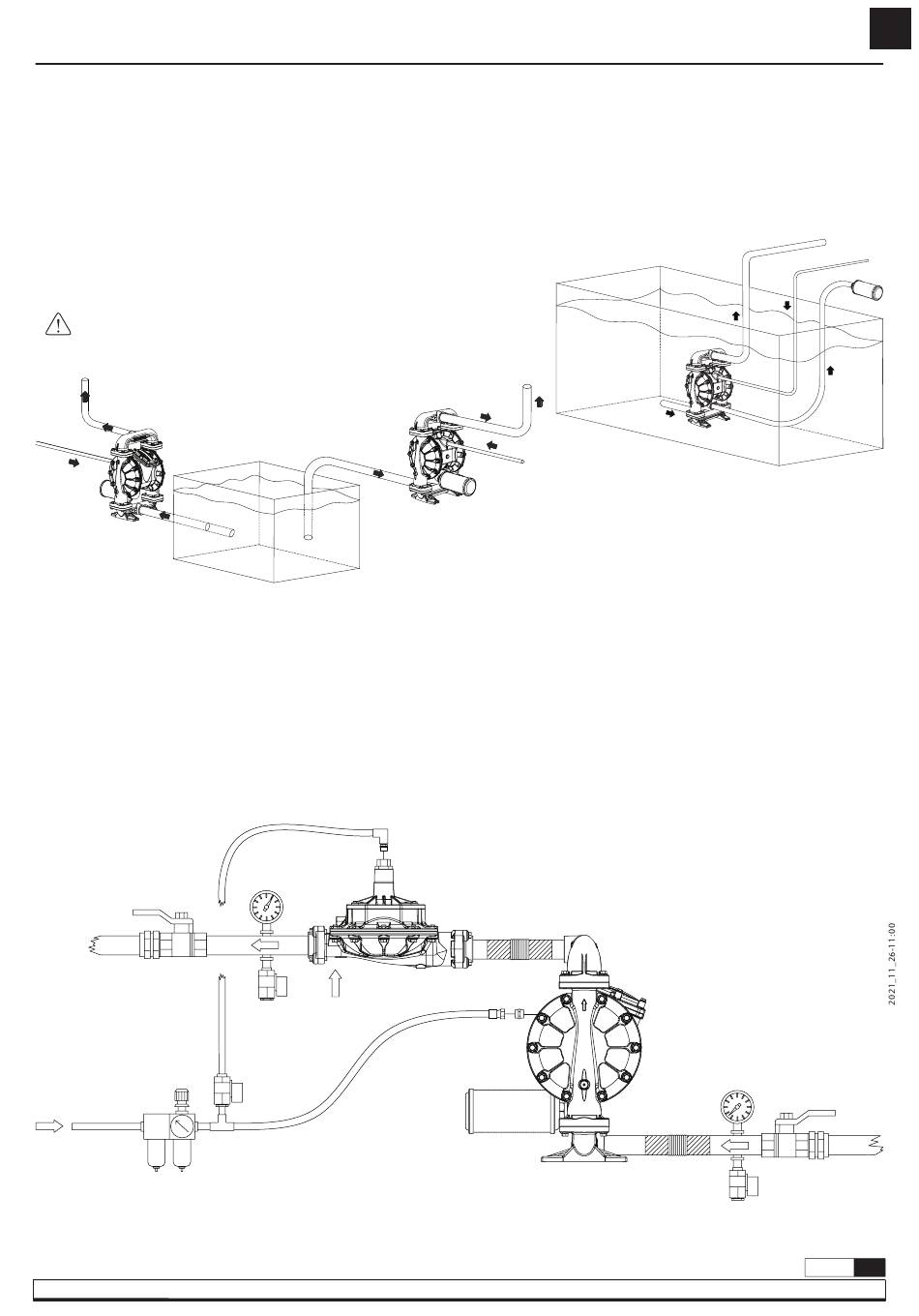

FLOODED:
The pumping system was designed with positive pressure at the inlet.
This is the best possible installation when you need to evacuate the liquid
from the drum or tank, or when working with viscous fluids.
Not recommended for hazardous fluids.
SELF-PRIMING:
Pump is designed to generate vacuum. It is possible to evacuate all the
air from a hose or pipe without damaging the pump. Maximum suction
height is (6 m) 19.69 ft, with the suction hose empty and up to 8 m
(26.25 ft) with the hose primed.
WARNING: Pump in service with a positive suction head are most
efficient when inlet pressure is limited to 0,5 bar (7 psi). Premature
diaphragm failure may occur if positive suction is 0,5 bar and higher.
FLOODED
RECOMMENDED INSTALLATION
The figure below shows the recommended configuration for the installation of a diaphragm pump.
Read the warnings and recommendations of the previous page before starting.
METALLIC
Discharge
valve
2"
AIR
MAX. 8 BAR
Regulator, filter
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
SELF-PRIMING
NOTE: Use a pressure regulator with built-in filter inlet.
NOTE: The compressed air supply must be between 1,5 bar (20 psi ) and 8 bar (120 psi).
1/2"
Pressure
gauge
Support is
recommended
Shut-off
valve
SUBMERGED:
All pumps can be immersed in fluids. It is important to verify that all
components that are in contact with the fluid are chemically compatible.
In this case, air exhaust and fluid must be carried by hoses (optional air
connection).
SUBMERGED
Flexible
connection
3/4"
Vacuum gauge
Flexible
connection
SUCTION
R. 11/21 855 859
EN
2"
