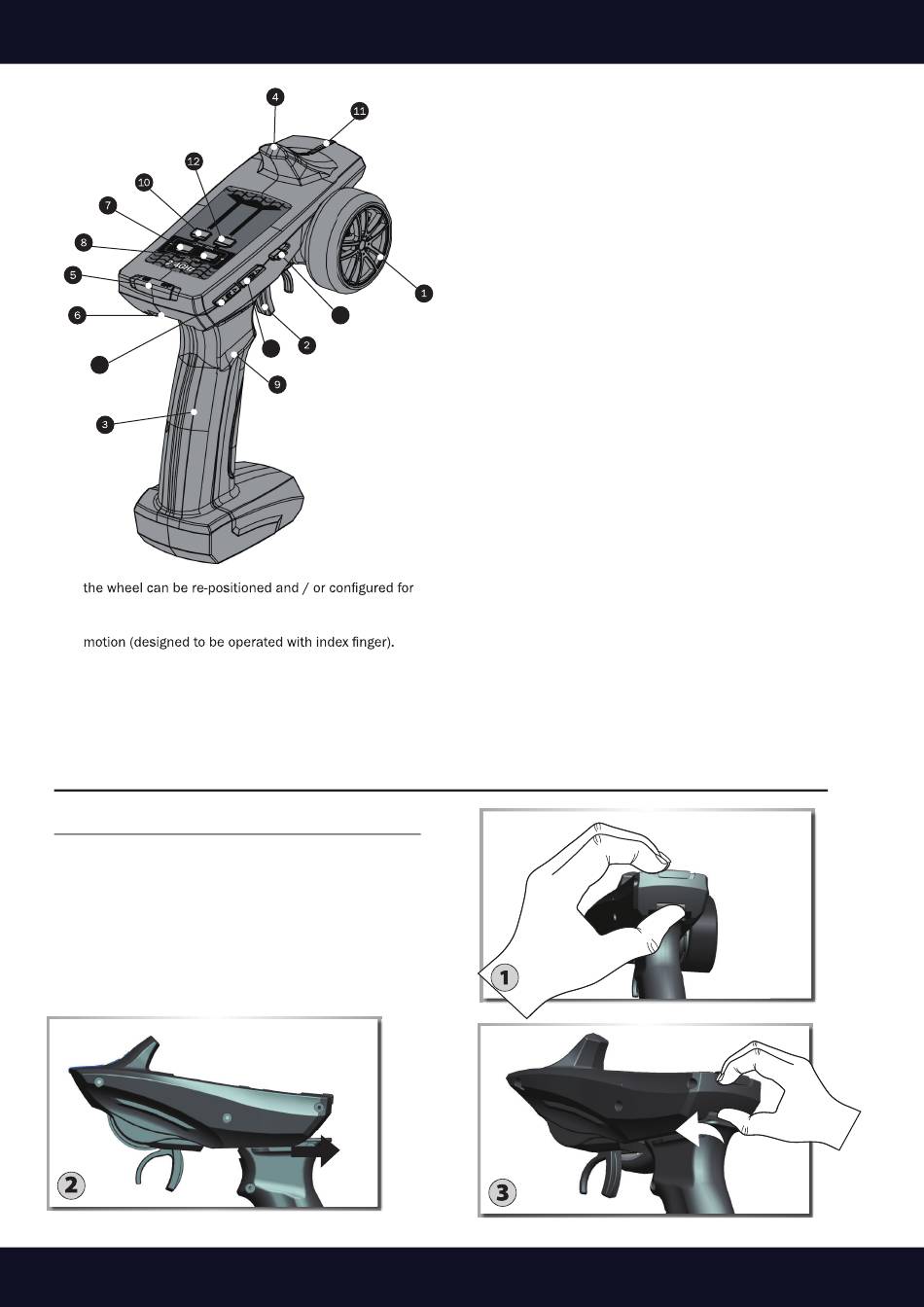

1. Steering Wheel: Controls left / right motion (note that
left-hand use (see full online manual for details).
2. Throttle Trigger: Controls forward / reverse / brake
3. Hand Grip: For holding the transmitter.
4. Antenna: Transmits signal to the receiver located in the
vehicle.
5. Power switch: Turns the transmitter ON / OFF.
6. Disassemble key：Handle is removable.
Disassemble Handle & Install
1.Press the button
2.take away the handle
3.press the button, install the handle
30
15
14
7. CH3-EPA+/-
Please put CH4 in the middle of before you press the
CH3 EPA+/-,then press EPA+/-, you can adjust the angle of ST
8. CH4-EPA+/-
Please put the CH4 switch on left or right, then press
the EPA+/- and adjust the angle
9. Battery compartment: Houses [4] AA batteries
10. Channel 3 key.
11.M ultifunction Red Indicator LED:
12.R EV:
(1). Please turn the wheel to left or right with Max angle , and
press REV for 2 seconds,you can hear "DI DI", then ST will
be reverse
(2). Please pull the throttle or push the throttle to Max position ,
and press REV for 2 seconds, you can hear "DI DI",then throttle
will be reverse
(3). Please press CH3 and REV together for 2 seconds, you can
hear "DI DI", then channel 3 will be reverse
(4). Please press REV for 2s, then turn on the CH4, and press
the REV for 2s again, then turn off the CH4
13.S T DR/ST TRIM: Please turn the wheel to left or right with
Max angle, and press ST-TRIM+ or ST-TRIM-, then adjus t
the angle of ST
14. TH DR/TH TRIM: Please pull the throttle or push the throttle
to Max position, and press TH-TRIM+ or TH-TRIM-, the n
adjust the angle of TH
When you adjust TRIM +/-, you can sound "Di", when the trim
is on centre, you can sound "Di-Di"; when the sound is stopped ,
then means TRIM is Max/Min
When you adjust DR +/-, you can sound "Di", when the sound
is stopped, then means DR is Max/Min
15. Channel 4 key.
