Dear customer,
To ensure that the shelves meet the demands placed on them and also retain their function in future, it is
essential that you follow the assembly instructions and instructions for use.

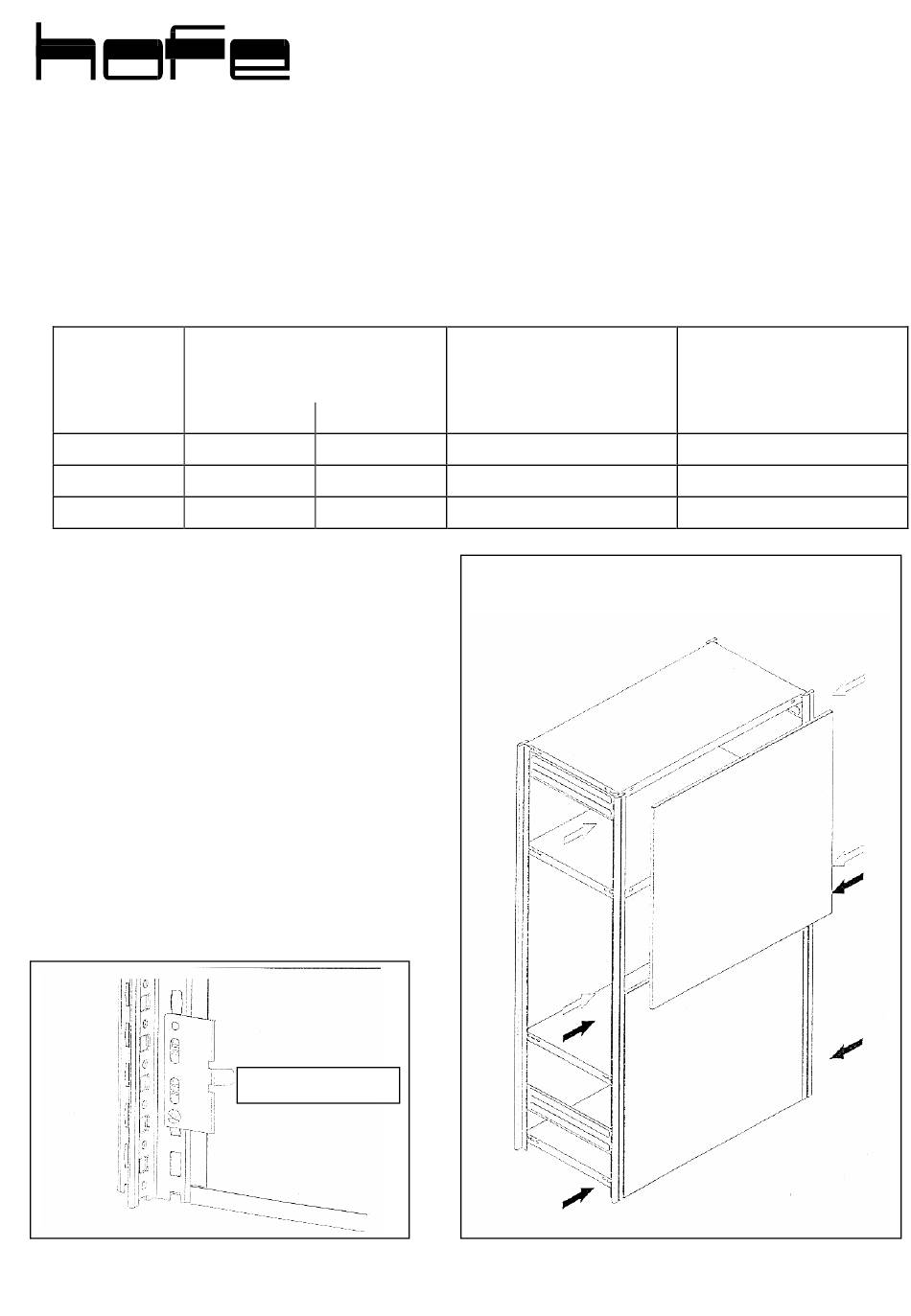

Sheet metal rear wall
1. Number and dimensions of rear wall sections.
Shelving unit
Heights of rear wall sections
height
mm
2000
2500
3000
2. Place the bottom rear wall section between the
frame profiles, fix with the four rear wall hooks
(see Fig. 1). For approximate position, see
arrows in Fig. 2. Secure with locking pins.
3. Place the next rear wall section on the
previous section, hold securely and fix with
rear wall hooks.
Caution: The upper rear wall section can slip
down before the rear wall hooks are in place!
Secure rear wall hooks with locking pins.
4. For shelving unit heights 2500 mm and 3000
mm, repeat the process with the last rear wall
section as described in Item 3.
fig.1
All manuals and user guides at all-guides.com
Assembly instructions for the accessories for the
"ORION PLUS" push together system
500 mm
1000 mm
2
1
2
3
Rear wall hook
Rear wall retaining
brackets
pieces
8
12
12
fig. 2
Locking pins
pieces
8
12
12
(englisch 12/2007)
