! Read the operating instructions and the enclosed brochure „Guarantee and
additional notices" completely. Follow the instructions they contain. This
document must be kept in a safe place and passed on together with the device.

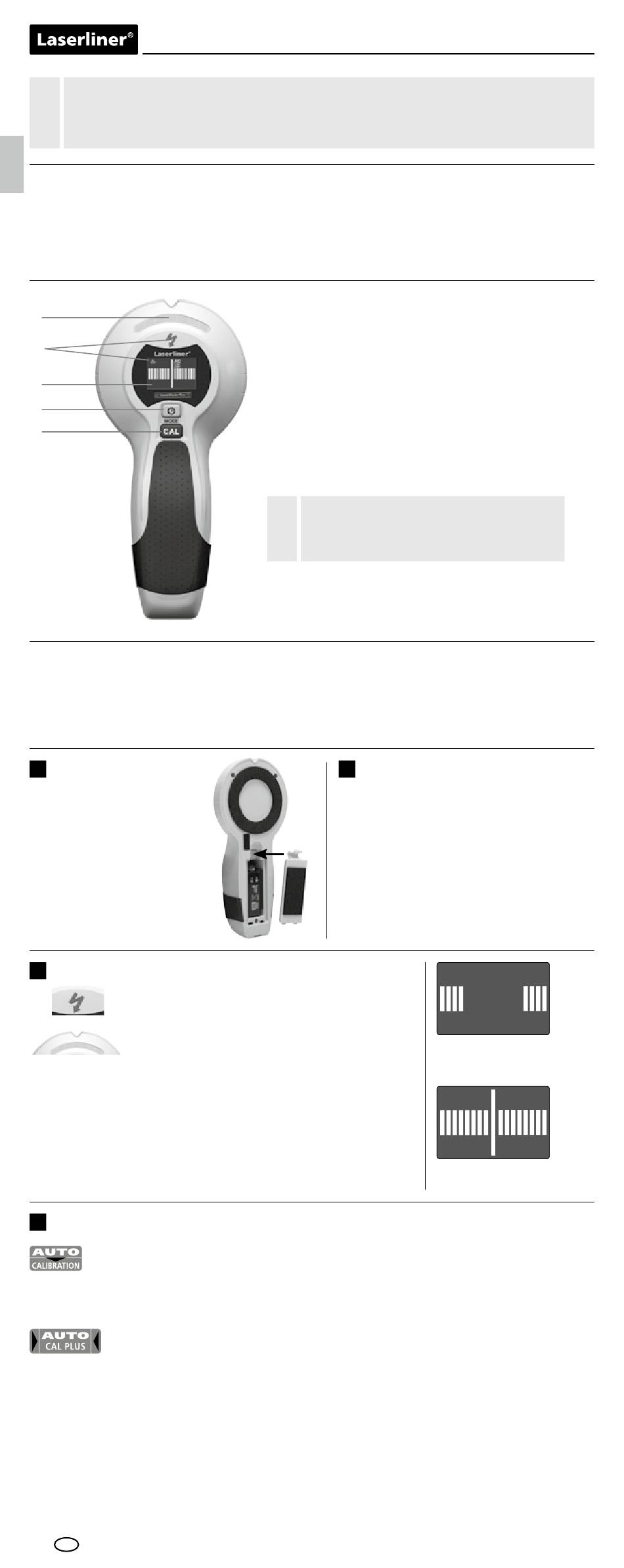

Function / Application
Electronic detector for metal and live conductors. The CombiFinder Plus is equipped
with an VTN display with user guide, ensuring easy and reliable operation. Acoustic and
optical detection signals to locate objects facilitates handling and ensures a high level
of functional reliability.
1
2
3
4
5
Safety instructions
– The device must only be used in accordance with its intended purpose and within
the scope of the specifications.
– The structure of the device must not be modified in any way.
1
Insert battery
Open the battery compart-
ment on the housing's
rear side and insert a 9V
battery. Correct polarity
must be observed.
3 Symbols
Red = Live wire warning
METAL-SCAN and AC-SCAN mode
Green = metal or live wire is nearby
Red = metal or live wire found
4
Calibration
Auto-Calibration
The automatic calibration is performed in METAL-SCAN and AC-SCAN measurement
immediately when the device is switched on and when the measuring mode is switched.
Auto-Cal Plus
When an object has been found, the device performs another automatic calibration in
METAL-SCAN measurement. This simplifies the process of isolating objects to be measured
and adjusting the device to different surfaces.
06
GB
1
Maximum display
2 Live wire warning
3 VTN display
4 ON / OFF
Switching measuring mode (MODE)
5 Manual calibration (CAL)
!
Always switch off the power supply
when working in METAL-SCAN mode
in the vicinity of electric conductors.
2

Operation

Switch on: Briefly press the
On/Off button (4).
Switch off: Keep the On/Off
button (4) pressed for 4 seconds.
AutoShutOff: The device will
automatically switch itself off
about 30 seconds after the last
measurement.
line, object is nearby
line, object found
