Getting started
1
A detector
to find
the power
3

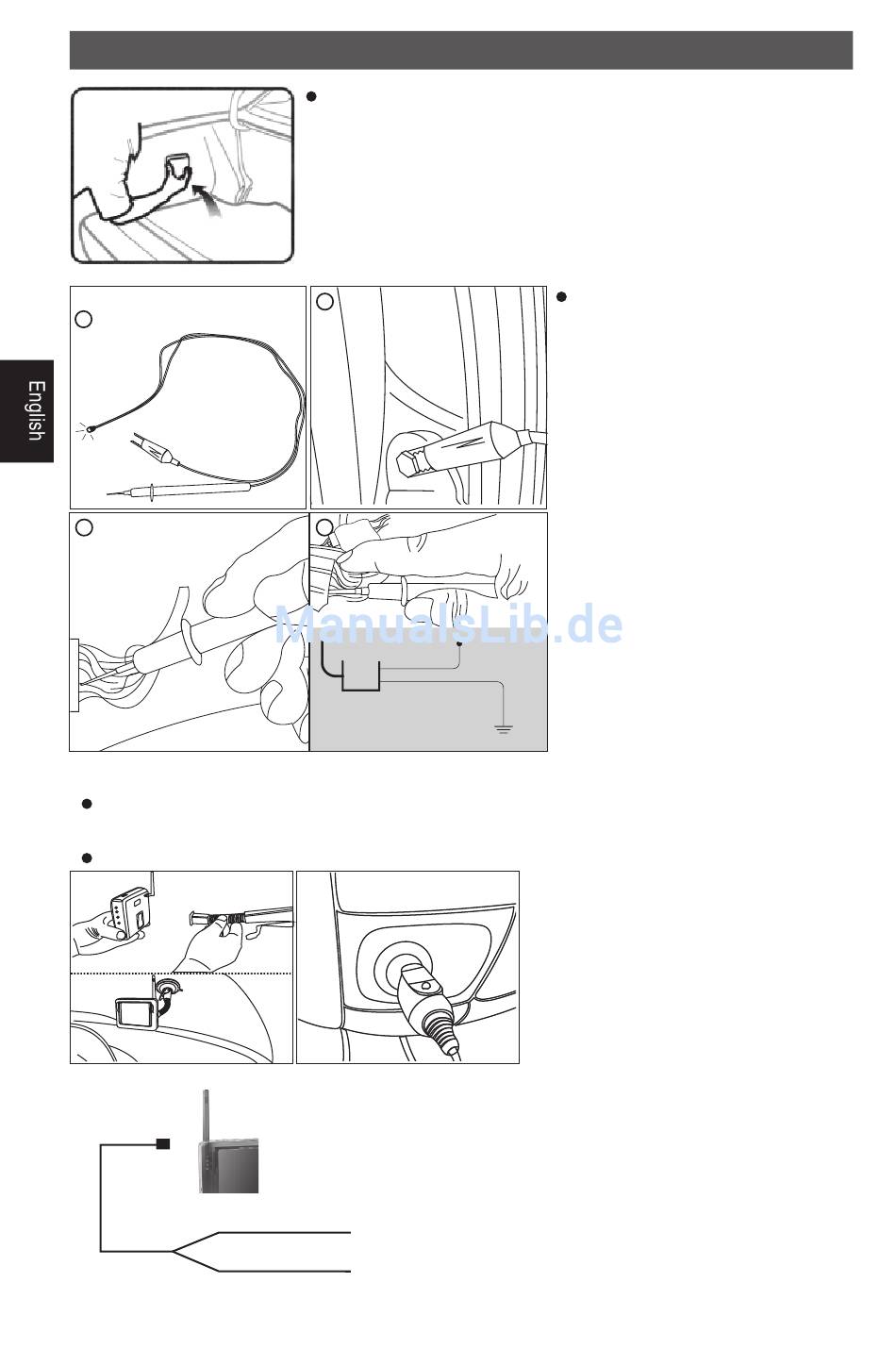

Installation of the monitor
Use the suction holder to install the monitor. The suction holder is stamped on the front
window glass.
Connect power of the monitor. There are two methods as below:
power plug
power
black to chassis ground
red to +12V
Find proper spaces to install the transmission box.
4
Reverse
light
Red wire
2P
Black wire
Ground
- 16 -
Use a detector or voltage meter to
fi nd the power:
how to fi nd the power from the
reverse light?
Introductions: black clamp con-
nects to the ground wire. Use the
red pen to fi nd the power from the
reverse light until the LED light is
on. Then connect the red power
line from the transmitter box to the
power from the reverse light and
the black to the ground wire.
A: Use the cigarette lighter adapter
included in the package to get the
power.
B: According to the same steps, fi nd
power from the car power circuit in
front, and connect the Monitor Wiring
Harness correctly.
