9.2 Creating the Slice files

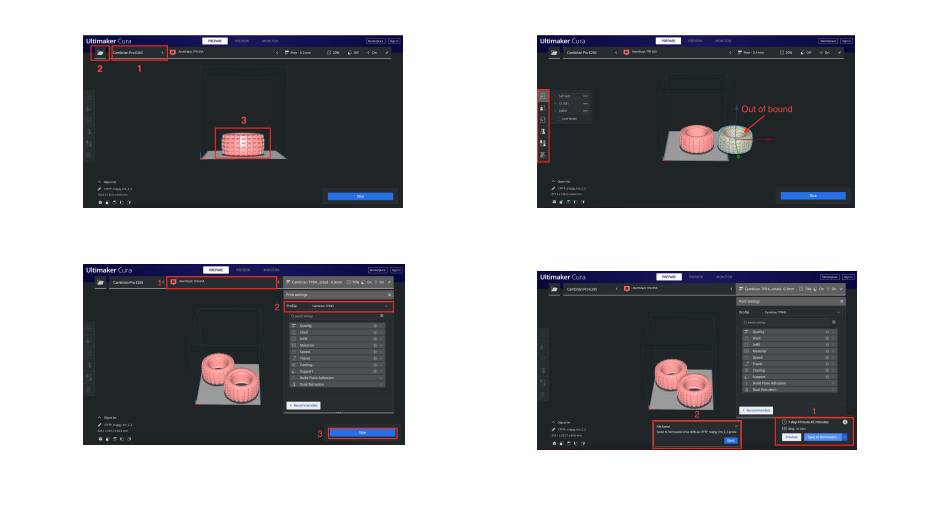

1. Under the "PREPARE" tab, click the Import button shown by
the number "2", and in the pop-up window, select the model
you want to print and double-click to complete the import
3. After adjusting the model, select the materials you want to
print and the corresponding printing parameters in turn as
shown in the figure, and then click "Slice" to start generating the
print data, that is, slices
2. After importing the model, if the model exceeds the printing
boundary, the model will be gray. Click the tool button on the
left side of the software to adjust the size, position, and angle
of the model
4. After the slicing is completed, insert the card reader and TF
card, and save the slicing data to the TF card as shown in the
figure. Now, we have completed the production of the print
data
